Colson H7 398 total lock castor, Wheel Diameter 125mm
Available

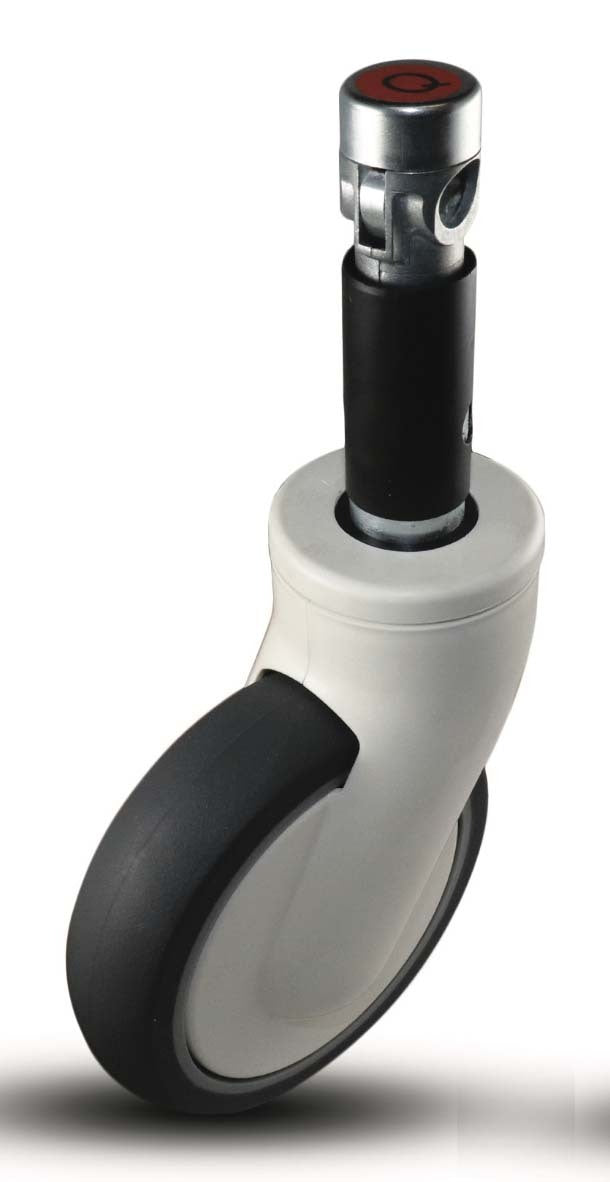

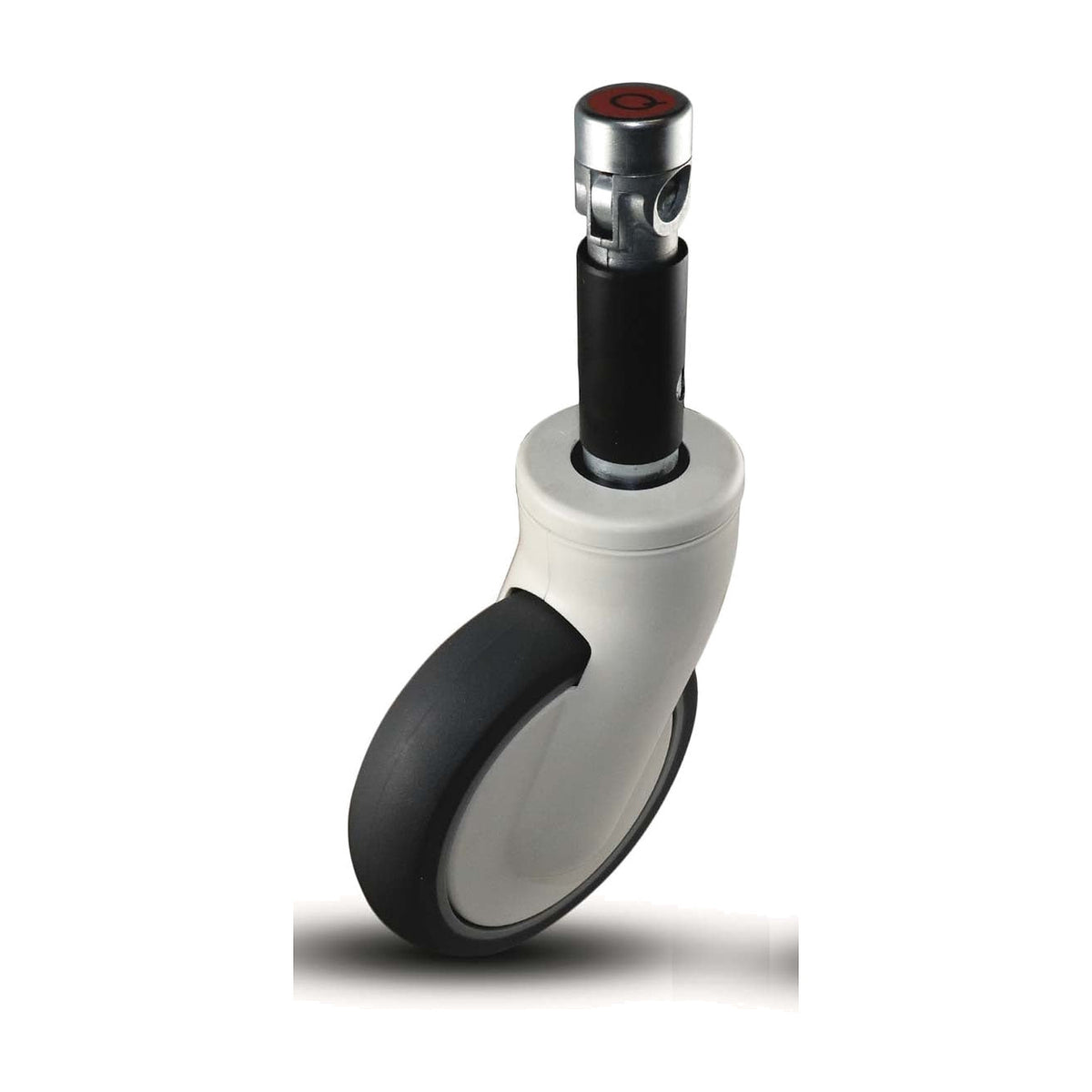

The Colson H7 (398) total lock castor is a medical castor with a polyurethane wheel, a die-cast aluminium load-bearing housing and a highly polished plastic cover. It comes with a 125mm or 150mm wheel and is rated for 150kg.
Precision ball bearings in the fork head give smooth swivelling, and a smooth selection function lets you set the castor. The integrated selection mechanism includes a total locking brake. The switch mechanism is permanently grease filled.
Where this product is used
- Care beds, hospital beds and intensive care beds
- Operating theatre beds and tables
- Medical equipment
Features
- Die-cast aluminium load-bearing housing
- Highly polished plastic cover, suitable for cleaning in disinfection cabins
- Precision ball bearings in the fork head
- Permanently grease filled switch mechanism
- Integrated total locking brake
- Rated for 150kg per castor
Key specifications
| Specification | Detail |
|---|---|
| Brand | Colson |
| Series | H7 (398) |
| Lock | Total lock |
| Wheel material | Polyurethane |
| Load capacity | 150kg |
| Tread width | 32mm |
| Fitting | Long stem |
| Housing | Die-cast aluminium |
| Wheel sizes | 125mm and 150mm |
Choosing the right option
Choose the wheel diameter by the ground clearance and floor you need, and the long stem fitting suits the socket in your equipment. Check the castor against the load on each castor, not the total load, and allow for uneven floors and shock loads.
See also: Colson Direction and Total Lock Castor - H7(398) Series, Rhombus Total Lock Twin Wheel Castor - H8 (PT) Series, Rhombus Direction and Total Lock Twin Wheel Castor - H8 (PT) Series.
| Option | Part number | SKU |
|---|---|---|
| 125 | A0194605 | |
| 150 | A0194606 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Colson Total Lock Castor - H7(398) Series: 125
SKU: A0194605 | Model: H75Q35K125
This is the 125mm wheel diameter option of the Colson Total Lock Castor - H7(398) Series. Key details for this option: fitting type Long Stem, wheel diameter 125mm, tread width 32mm.
Colson Total Lock Castor - H7(398) Series Die-cast aluminium load-bearing housing. Highly polished plastic cover. Precision ball bearings in the fork head. Suitable for cleaning in disinfection cabins. Smooth selection function. Integrated selection mechanism with total locking brake "q". Direction locking brake "r". Permanently grease filled in the switch mechanism. Also available with electrically conductive wheel. H7 (398) series is ideal for: Care beds
Hospital beds
Intensive care beds
Medical equipment
OP beds
OP tables.
