M6.5 x 55 mm Countersunk Head Sleeve Anchor, 316 Stainless Steel - CANA4M6X55

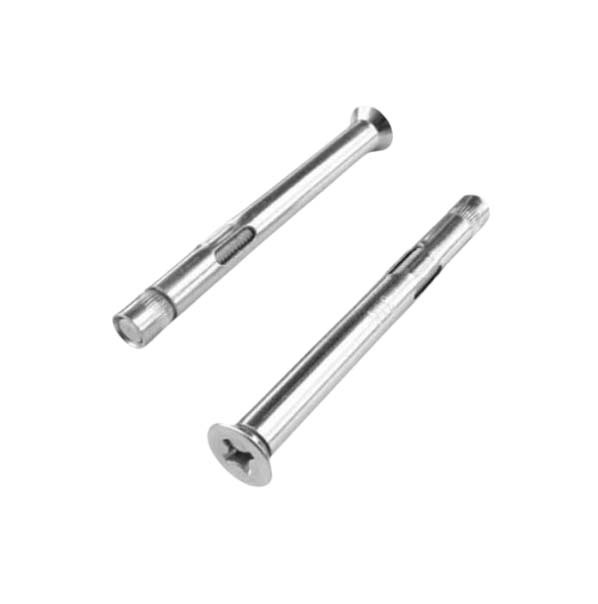

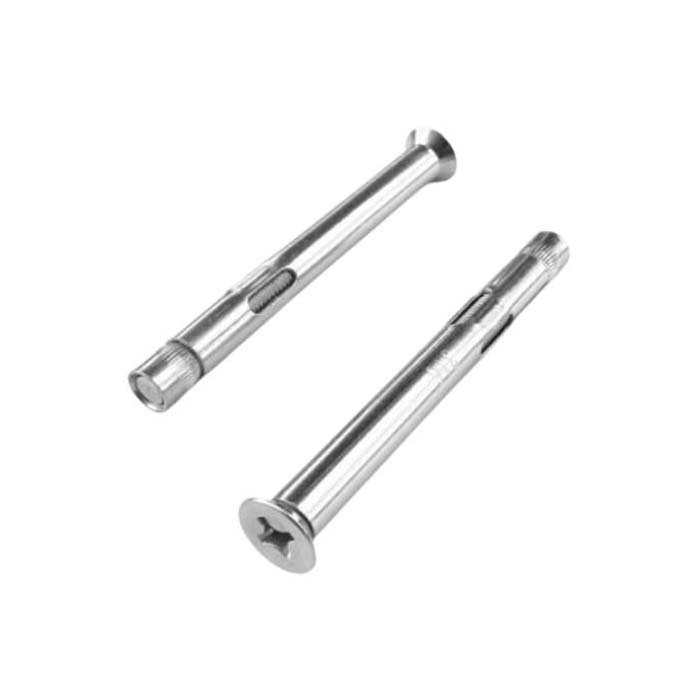

Made in 316 (A4) stainless steel, the Countersunk Head Sleeve Anchor is a sleeve anchor with a countersunk head that expands in drilled masonry or concrete as the screw is tightened.

A4 (316) stainless steel contains molybdenum (about 2 to 3 per cent), which improves its resistance to chlorides. It is the grade normally chosen for coastal, pool, marine and food-processing settings, and it costs more than A2 (304). Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

The range runs to 8 variants, covering sizes M6.5 to M10 and lengths 55 mm to 100 mm. Pack quantities depend on size: packs of 50 to 100.

Stainless threads can gall (seize) when tightened under load or at speed. A smear of anti-seize on the thread and a steady tightening speed reduce the risk.

Where this product is used

• Swimming pool and spa equipment
• Coastal and wet-area masonry fixings
• Concrete, brick and block fixings
• Fixing timber, brackets and plates to masonry
• Outdoor fittings exposed to salt air

Features

• Countersunk head sits flush
• Supplied in packs of 50 to 100
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Lengths from 55 mm to 100 mm
• Range covers M6.5 to M10 in 8 variants
• Sleeve expands as the screw is tightened

Key specifications

Selecting the right option

Drill to the hole diameter and depth in the supplier data and clear the dust. Loads are not stated here, so check the supplier load data for your base material.
