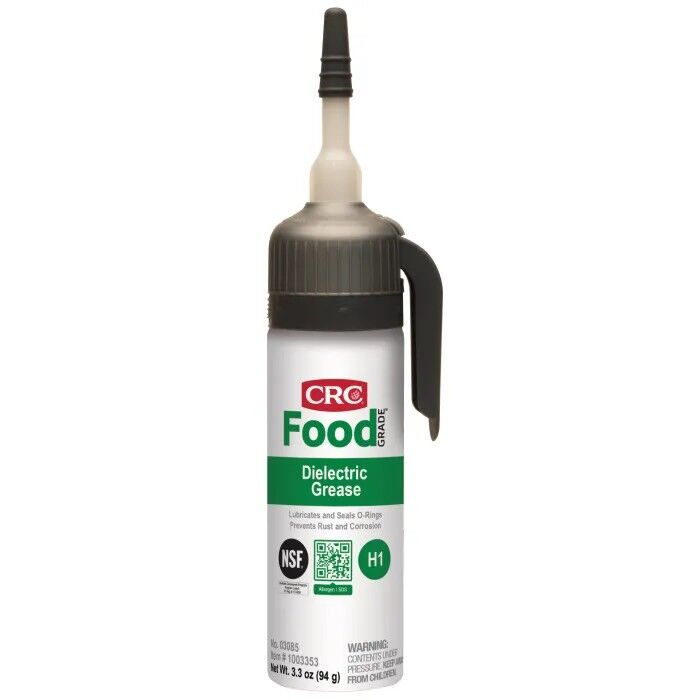

CRC Di-Electric Grease Food Grade 94g
Available
CRC Food Grade Di-Electric Grease is a thin, non-curing silicone compound. It seals, lubricates, protects, insulates and waterproofs electrical connections, and also suits O-rings, valves, pistons, gaskets, guides and slide mechanisms.
It has a temperature range of -21 °C to 204 °C and NLGI Grade 2. It is supplied as a 94g pressurised can. It will not harden, freeze, dry or melt due to temperature fluctuations, and it must not be applied while equipment is energised.
Where this product is used
- Electrical connections: panels, disconnects, switching mechanisms, electrical contacts, spark plugs and battery terminals (de-energised)
- O-rings, gaskets and seals
- Valves, pistons, guides and slide mechanisms
- Fasteners
Features
- Thin, non-curing silicone compound
- Seals, lubricates, protects, insulates and waterproofs
- NLGI Grade 2
- Temperature range -21 °C to 204 °C
- Will not harden, freeze, dry or melt due to temperature fluctuations
- Will not degrade seals, gaskets or plastic insulators
Key specifications
| Specification | Detail |
|---|---|
| Brand | CRC |
| Product type | Food grade dielectric grease: thin, non-curing silicone compound |
| CRC product number | FG03085 |
| Pack | 94g aerosol (pressurised can) |
| Main ingredients | Dimethyl siloxane (polydimethylsiloxane) 90 %; nitrogen 5 %; amorphous silicon dioxide 5 % |
| NLGI grade | 2 |
| Appearance | Opaque white liquid and/or paste |
| Specific gravity | 1.06 |
| Temperature range | -21 °C to 204 °C |
| Dielectric strength | 500 volts/mil |
| Flash point (liquid component) | Above 150 °C |
| Boiling point | Above 315 °C |
| NSF registration (NSF letter 15/07/15) | NSF Registration No. 151608 (issued to CRC Industries, Inc., US), category H1: acceptable as a lubricant with incidental food contact (H1) for use in and around food processing areas |
| Hazard statement | Signal word WARNING; H229; UN 1950, Aerosols, Class 2.2 |
Choosing the right option
For a non-food version see CRC Di-Electric Grease Seals. For other CRC food grade greases see CRC Food Grade Di-Electric Grease 284g and CRC Industrial Food Grade Silicone Grease 75ml.
See also: CRC Di-Electric Grease Seals, CRC Food Grade Di-Electric Grease 284g, CRC Industrial Food Grade Silicone Grease 75ml, CRC Food Grade Multi-Purpose Grease 397g.
Using it
Directions: do not apply while equipment is energised. Shut off the power supply, drain any stored power and let hot surfaces cool.
Apply a light, even film to the areas that need lubrication or protection, and repeat if necessary.
Storage and handling
The product is combustible. Keep away from naked flames and ignition sources, and do not spray on an open flame. Store cool and well ventilated. Do not puncture, incinerate or store above 50 °C, and keep out of direct sunlight.
Limits and safety
Warning. Pressurised container: may burst if heated (H229). UN 1950, Aerosols, Class 2.2. It is not classified as a health or environmental hazard, and it is combustible. Do not apply while equipment is energised. NSF registration: use the minimum amount needed, and wash or wipe off an anti-rust film so nothing transfers to food; the registration is valid only while the registration number, category code and mark appear on the approved label and the product is on the NSF White Book. Read the safety data sheet before use.
Dielectric strength 500 volts/mil by ASTM D-877.
Flash point above 150 °C for the liquid component.
