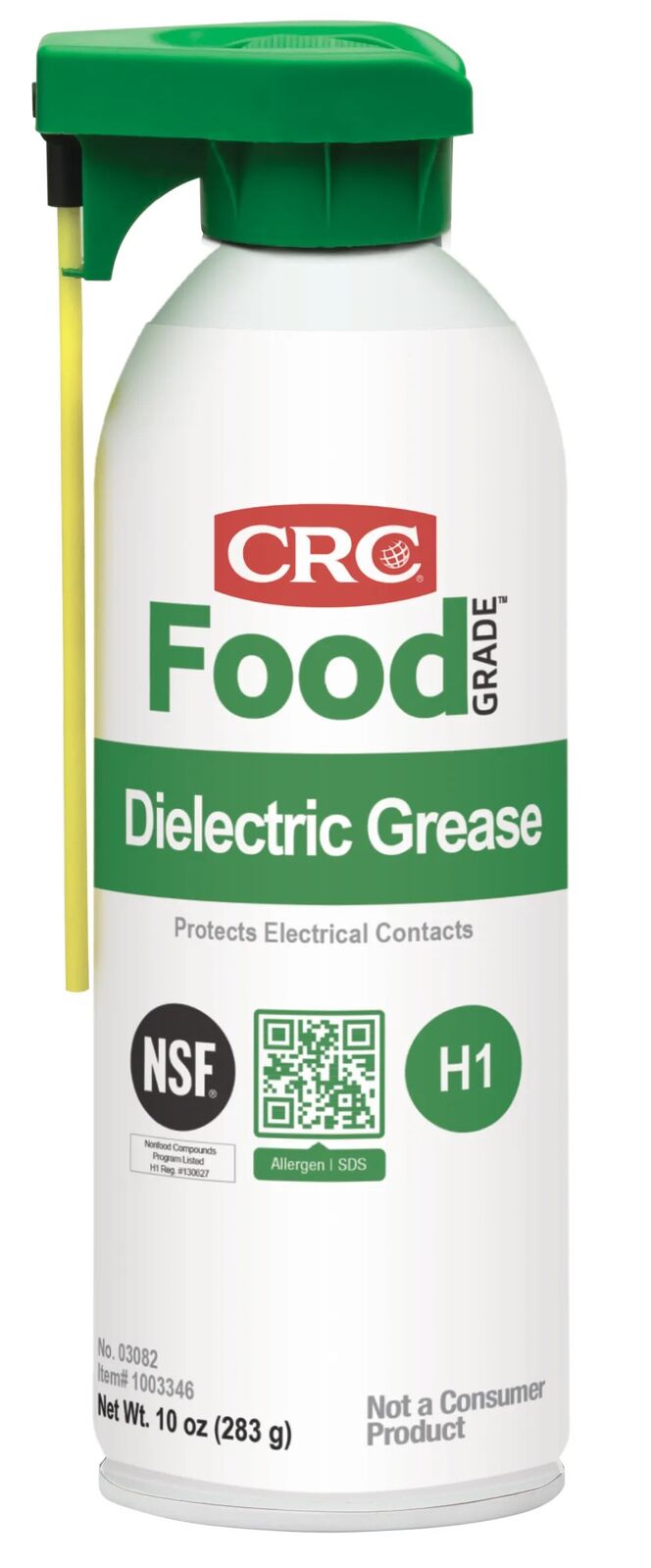

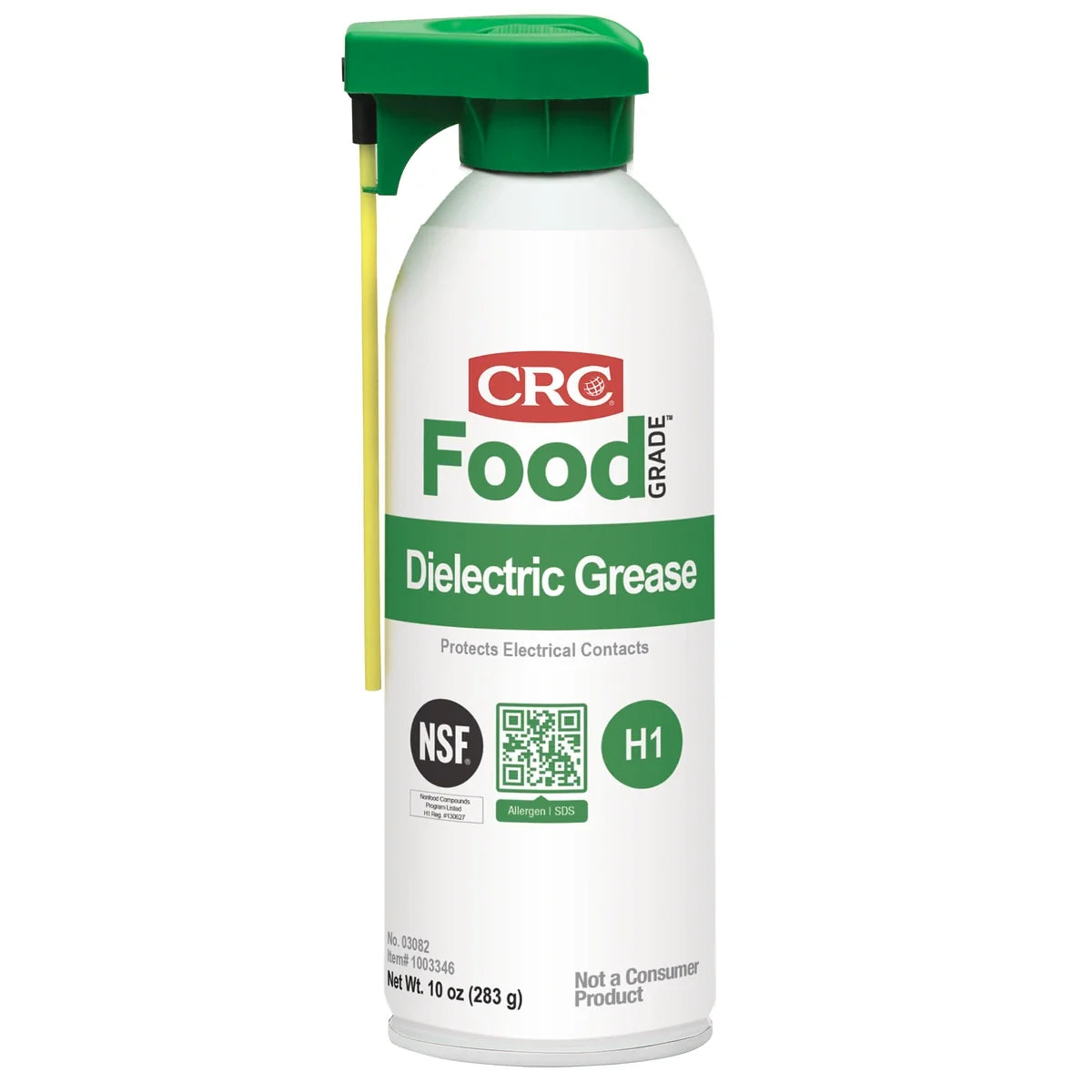

CRC Food Grade Di-Electric Grease 284g

CRC Food Grade Di-Electric Grease is a non-curing silicone paste supplied in a hydrocarbon-propelled aerosol. It is an electrical lubricant that seals, lubricates, protects, insulates and waterproofs.

It suits electrical panels, outdoor lighting, scoreboards, traffic lights, high voltage poles, transformers, disconnects and switching mechanisms. It is sprayed on as a light film to de-energised equipment.

Where this product is used

• Electrical panels and switching mechanisms
• Outdoor lighting, scoreboards and traffic lights
• High voltage poles, transformers and disconnects
• Electrical contacts, spark plugs and battery terminals
• Fasteners used to support temporary electrical work
• O-rings, rubber and plastic parts

Features

• Non-curing silicone paste that seals, lubricates, protects, insulates and waterproofs
• Will not harden, freeze, dry or melt due to temperature fluctuations
• Temperature range of -40 °C to 205 °C
• Dielectric strength of 500 volts/mil (ASTM D-877)
• NLGI grade 2
• It will not degrade seals, gaskets or plastic insulators
• Sprays on as a light, even film, repeated if more thickness is needed

Key specifications

Choosing the right option

For a smaller tube of CRC food grade di-electric grease, see CRC Di-Electric Grease Food Grade 94g. The 94g tube is sold under its own item number, FG03085, with a separate data sheet.

Because the can is flammable and conducts electricity, it is applied only to equipment that has been switched off and de-energised.

See also: CRC Di-Electric Grease Food Grade 94g, CRC Aerosol Silicone Electrical Multi-Use Lubricant 300g, CRC Aerosol Lectra Shield Corrosion Inhibitor 300g, CRC Electrical Parts Cleaner Quick Drying 400g.

Using it

Switch off the power, de-energise the equipment and drain any stored power. Allow hot surfaces to cool before spraying.

Spray a light, even film on the areas that need lubrication or protection. Repeat if more thickness is needed.

Do not apply while equipment is energised.

Storage and handling

Aerosol cans will conduct electricity. Do not puncture or incinerate the can, and do not store it above 50 °C.

Limits and safety

Signal word: Danger. Dangerous goods UN 1950, Aerosols, Class 2.1. Extremely flammable aerosol. Pressurised container: may burst if heated. May cause drowsiness or dizziness. Do not apply to energised equipment, as the aerosol can conducts electricity. Read the safety data sheet before use.

It is classified as an extremely flammable aerosol.
