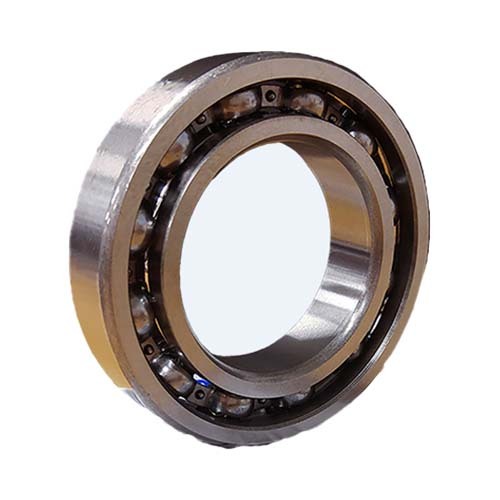

Koyo/JTEKT 6304C3 Deep Groove Ball Bearing Open Type (C3) 20 x 52 x 15mm

$16.06
$16.06
Inc. GST

Available

Koyo/JTEKT 6304C3. Open: open bearing for low-friction high-speed duty. Koyo precision chrome steel races and balls. C3 clearance: extra clearance for thermal expansion. Deep Groove Ball Bearing Open Type (C3) - 6300 Series is a service-grade replacement for industrial and automotive drive shafts.

Bearing type: Deep groove ball bearing. Sealing: Open. Clearance: C3 (extra clearance). Material: Chrome bearing steel. Refer to title for dimensions.

Available Sizes

17 sizes available — select the exact size you need from the dropdown above. Key figures for each:

Bore Diameter x Outer Diameter x Width (mm) Basic Load Rating (kN) Cr Basic Load Rating (kN) C0r Limiting Speed (min-1) Oil lub. (Z)
20 x 52 x 15 19.9 7.85 17000
30 x 72 x 19 33.3 15 12000
35 x 80 x 21 41.7 19.3 10000
40 x 90 x 23 50.9 24 9200
45 x 100 x 25 61.1 29.5 8100
50 x 110 x 27 77.5 38.3 7300
55 x 120 x 29 89.5 45 6700
60 x 130 x 31 102 52.2 6200
65 x 140 x 33 116 59.9 5800
70 x 150 x 35 130 68.2 5400
75 x 160 x 37 142 77.2 5000
80 x 170 x 39 154 86.7 4700
85 x 180 x 41 166 96.8 4400
90 x 190 x 43 4200
This size's load rating/fatigue-limit figures could not be independently confirmed against Koyo/JTEKT's own current site (no live page exists for this exact model) -- worth a direct supplier check before relying on this figure.
95 x 200 x 45 191 119 4000
100 x 215 x 47 216 141 3600
110 x 240 x 50 257 180 3200

Where This Is Used

  • Automotive: Transmissions, electrical devices, truck, and trailer equipment.
  • Off-Highway Vehicles: Construction equipment, agricultural equipment, railroad rolling equipment.
  • Electrical Equipment: Standard motors, electric appliances for domestic use.
  • Other: Measuring instruments, medical instruments, and miscellaneous industrial equipment.

Features

  • Features Deep Groove Radial Bearing.
  • Type: Open Type, Shielded/ sealed type, With locating snap ring, Maximum type, and Double-row.
  • The most popular rolling bearing type used in a wide variety of industries and applications.
  • The inner and outer rings have deep uninterrupted grooves.
  • They can support radial loading and a certain degree of axial loading in either direction.
  • High-speed capability.
  • The Maximum style not to be used when axial loading or high speed is involved.
  • Sealed and shielded types are filled with an appropriate volume of grease.
  • Bearings with a locating snap ring aid axial positioning and eliminate the need for housing shoulder.
  • Cages can be a pressed steel, machined copper alloy, molded polyamide, synthetic resin, pressed stainless sheet steel.
Full engineering specifications (all 14 fields, 17 sizes)

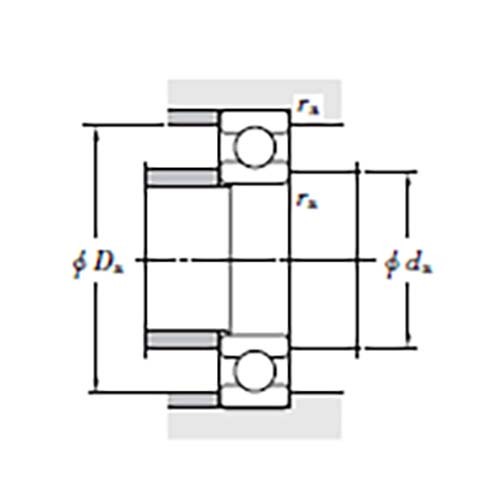

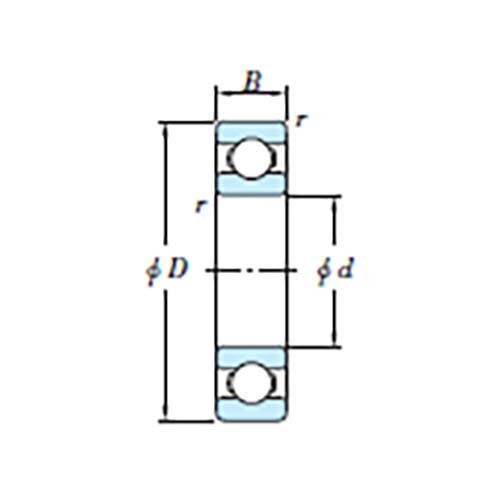

Bearing Width B (mm) Bore Diameter x Outer Diameter x Width (mm) Limiting Speed (min-1) Oil lub. (Z) Basic Load Rating (kN) Cr Fatigue Load Limit (kN) Cu Outside Diameter D (mm) Basic Load Rating (kN) C0r Bore Diameter d (mm) Mounting Dimension (mm) Da Max Mounting Dimension (mm) Ra Max Factor F 0 Limiting Speed (min-1) Grease lub. (RU, 2RU) Mounting Dimension (mm) Da Min Boundary Dimension (mm) r min.
15 20 x 52 x 15 17000 19.9 0.66 52 7.85 20 45.5 1 12.3 14000 26.5 1.1
19 30 x 72 x 19 12000 33.3 1.15 72 15 30 65.5 1 13.3 9600 36.5 1.1
21 35 x 80 x 21 10000 41.7 1.45 80 19.3 35 72 1.5 13.2 8500 43 1.5
23 40 x 90 x 23 9200 50.9 1.85 90 24 40 82 1.5 13.2 7700 48 1.5
25 45 x 100 x 25 8100 61.1 2.25 100 29.5 45 92 1.5 13.3 6800 53 1.5
27 50 x 110 x 27 7300 77.5 2.9 110 38.3 50 101 2 13.2 6100 59 2
29 55 x 120 x 29 6700 89.5 3.45 120 45 55 111 2 13.2 5600 64 2
31 60 x 130 x 31 6200 102 3.95 130 52.2 60 119 2 13.2 5200 71 2.1
33 65 x 140 x 33 5800 116 4.5 140 59.9 65 129 2 4.5 4800 76 2.1
35 70 x 150 x 35 5400 130 4.95 150 68.2 70 139 2 13.2 4500 81 2.1
37 75 x 160 x 37 5000 142 5.4 160 77.2 75 149 2 13.2 4200 86 2.1
39 80 x 170 x 39 4700 154 5.85 170 86.7 80 159 2 13.3 3900 91 2.1
41 85 x 180 x 41 4400 166 6.35 180 96.8 85 167 2.5 13.3 3700 98 3
43 90 x 190 x 43 4200 190 90 177 2.5 3500 103 3
This size's load rating/fatigue-limit figures could not be independently confirmed against Koyo/JTEKT's own current site (no live page exists for this exact model) -- worth a direct supplier check before relying on this figure.
45 95 x 200 x 45 4000 191 9.45 200 119 95 187 2.5 13.3 3300 108 3
47 100 x 215 x 47 3600 216 10.9 215 141 100 202 2.5 10.9 3000 113 3
50 110 x 240 x 50 3200 257 13.3 240 180 110 227 2.5 13.2 2700 123 3
Product Highlights −
  • Open: open bearing for low-friction high-speed duty
  • Koyo precision chrome steel races and balls
  • C3 clearance: extra clearance for thermal expansion

Deep Groove Ball Bearing Open Type (C3) - 6300 Series is a service-grade replacement for industrial and automotive drive shafts.

Resources

File icon
KOYO-Ball-_-Roller-Bearing-Catalogue
File icon
KOYO-Bearing-Specifications-Table-Catalogue
File icon
KOYO-Premium-Bearing-Catalogue
Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • 20 x 52 x 15mm bearing
    Model Number: 6304C3/KOYO
  • 30 x 72 x 19mm bearing
    Model Number: 6306C3/KOYO
  • 35 x 80 x 21mm bearing
    Model Number: 6307C3/KOYO
  • 40 x 90 x 23mm bearing
    Model Number: 6308C3/KOYO
  • 45 x 100 x 25mm bearing
    Model Number: 6309C3/KOYO
  • 50 x 110 x 27mm bearing
    Model Number: 6310C3/KOYO
  • 55 x 120 x 29mm bearing
    Model Number: 6311C3/KOYO
  • 60 x 130 x 31mm bearing
    Model Number: 6312C3/KOYO
  • 65 x 140 x 33mm bearing
    Model Number: 6313C3/KOYO
  • 70 x 150 x 35mm bearing
    Model Number: 6314C3/KOYO
  • 75 x 160 x 37mm bearing
    Model Number: 6315C3/KOYO
  • 80 x 170 x 39mm bearing
    Model Number: 6316C3/KOYO
  • 85 x 180 x 41mm bearing
    Model Number: 6317C3/KOYO
  • 90 x 190 x 43mm bearing
    Model Number: 6318C3/KOYO
  • 95 x 200 x 45mm bearing
    Model Number: 6319C3/KOYO
  • 100 x 215 x 47mm bearing
    Model Number: 6320C3/KOYO
  • 110 x 240 x 50mm bearing
    Model Number: 6322C3/KOYO
