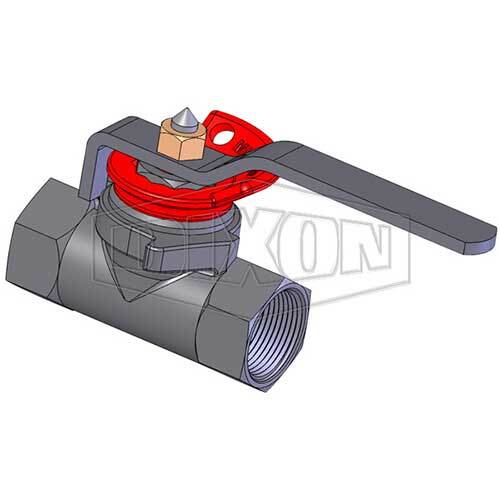

Dixon Minsup Econovalve 1" lockout

This Dixon Minsup Econovalve is a 25mm (1") general-purpose lockout ball valve with female x female NPT ends. It has a one-piece ball and stem for a positive on/off action, and the range is suitable for air and water in mining. The Econovalve range is rated at 300 PSI and -20 to 80°C, with a 2:1 safety rating.

The body is zinc-plated SG iron and the seal is nitrile butadiene; the 1" size is a top-loading design, so the valve can be maintained in line.

Where this product is used

• Air and water lines in underground and surface mining
• Isolation points where a solid iron-bodied valve with a pressed steel handle suits the duty
• Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon

Features

• One-piece ball and stem for a positive on/off action
• Top-loading 1" design allows in-line maintenance
• Body: SG iron, zinc plated, seal: nitrile butadiene
• Working pressure 300 PSI, temperature -20 to 80°C
• End connections: Female x female NPT

Key specifications

Choosing the right option

Both ends are female NPT, so each side needs a male NPT thread; NPT and BSP threads do not interchange. The lockout version is the one that can be locked open or closed with Dixon's Econovalve lockout device.
