Dixon Minsup Econovalve 1" lockout ball valve
Regular price
$91.26
Sale price
$91.26
Regular price
Inc. GST
Available

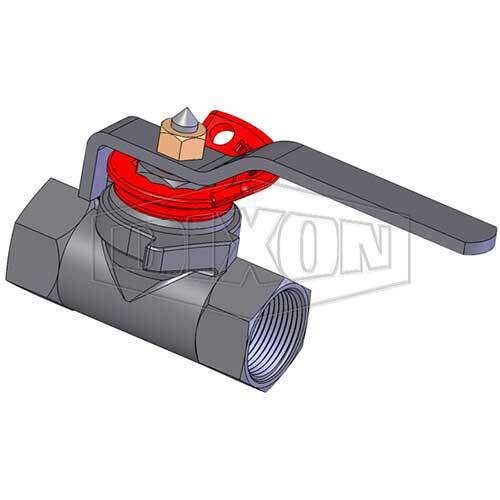

This Dixon Minsup Econovalve is a 25mm (1") ball valve with a lockout device, part number 08/062/102/00LOA. The Minsup Econovalve range is rated at 300 PSI and -20 to 80°C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal.
Where this product is used
- Air and water lines in mining
- Points where the valve needs to be locked open or locked closed, using the lockout fitted to this version
Features
- Minsup Econovalve range: one-piece ball and stem
- Range body: SG iron, zinc plated, seal: nitrile butadiene
- Range rating: 300 PSI, -20 to 80°C
- Lockout version, 1" (25mm)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Valve type | Minsup Econovalve ball valve with lockout |
| Size | 1" (25mm) |
| Range working pressure | 300 PSI |
| Range temperature | -20 to 80°C |
| Range body | SG iron (ISO 1083, 400-250-15), zinc plated (AS1789) |
| Range seal | Nitrile butadiene |
Choosing the right option
Related Dixon products: Dixon 08/062/102/00LO 1" Ball Valve Lockout Minsup NPTF x NPTF Standard, Dixon Minsup Econovalve Ball Valve Lockout Device and Dixon Econovalve - Ball Valve Lockout BSP Female x BSP Female.
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Dixon 08/062/102/00LOA 1" Ball Valve Lockout Minsup F- NPTF x F- NPTF
SKU: A0067598 | Model: 08/062/102/00LOA
Dixon 08/062/102/00LOA: Minsup Econovalve 1" lockout ball valve.
