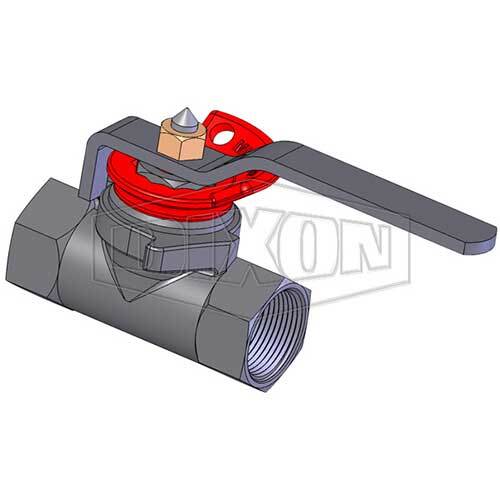

Dixon 08/062/113/00LO 1" (25 mm) Minsup Econovalve Lockout Ball Valve BSP F x F
Available
This Dixon Minsup Econovalve is a lockout ball valve with female BSP threads on both ends. The store lists four sizes, from 3/4 in to 2 in, all in the lockout version (manufacturer-stated).
Dixon rates the range at 300 PSI and -20 to 80 degrees C, with a 2:1 safety rating, a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal (manufacturer-stated). The 3/4 in and 1 in sizes are top-loading, and the 1-1/2 in and 2 in sizes are a 3-piece design, so all can be maintained in line (manufacturer-stated).
Where this product is used
- Air and water lines in underground and surface mining that use BSP threaded pipework (manufacturer-stated).
- Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon.
Features
- Female BSP x female BSP ends, lockout version, 3/4 in to 2 in (manufacturer-stated)
- One-piece ball and stem for a positive on/off action (manufacturer-stated)
- Body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
- Working pressure 300 PSI; temperature -20 to 80 degrees C (manufacturer-stated)
- Handle: pressed mild steel on 3/4 in and 1 in; SG iron on 1-1/2 in and 2 in (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Valve type | Minsup Econovalve ball valve, one-piece ball and stem |
| End connections | Female BSP x female BSP |
| Working pressure | 300 PSI |
| Temperature | -20 to 80 degrees C |
| Safety rating | 2:1 |
| Body | SG iron (ISO 1083; 400-250-15), zinc plated (AS1789) (manufacturer-stated) |
| Seal | Nitrile butadiene |
| Ball and stem | SG iron (ISO 1083; 400-250-15) and copper, chrome plated (AS1192), one-piece ball and stem (manufacturer-stated) |
| Sizes | 3/4" (20 mm), 1" (25 mm), 1-1/2" (40 mm), 2" (50 mm) |
Key specifications
| Dixon part number | Size | Handle | Working pressure |
|---|---|---|---|
| 08/062/114/00LO | 3/4" (20 mm) | Pressed mild steel | 300 PSI |
| 08/062/113/00LO | 1" (25 mm) | Pressed mild steel | 300 PSI |
| 08/062/847/00LO | 1-1/2" (40 mm) | SG iron | 300 PSI |
| 08/062/848/00LO | 2" (50 mm) | SG iron | 300 PSI |
The standard (non-lockout) Econovalves, 08/062/113/00 (1 in) and 08/062/848/00 (2 in), are listed by Dixon as separate part numbers.
Selecting the right option
Both ends are female BSP, so each side needs a male BSP thread. Pick the size from the pipe thread, then fit the lockout version if the valve has to be locked open or closed; Dixon's Econovalve lockout device (ELOK100C and ELOK200C) can also be fitted to existing Econovalves. For NPT threads, see the 1 in NPT lockout valve under Related products.
Related products
Related Dixon products: Dixon 08/062/102/00LO 1" Ball Valve Lockout Minsup NPTF x NPTF Standard, Dixon Minsup Econovalve Ball Valve Lockout Device and Dixon Ball Valve Surelock BSP.
