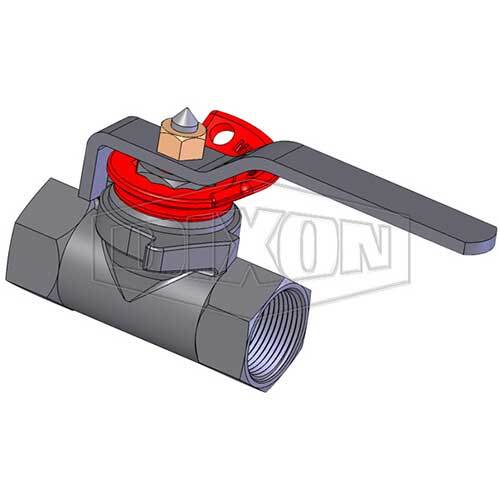

Dixon Econovalve lockout ball valve, 1-1/2" (40mm)

This Dixon Minsup Econovalve is a lockout ball valve with female BSP threads on both ends. It comes in four sizes, from 3/4" to 2", all in the lockout version. The range is rated at 300 PSI and -20 to 80°C, with a 2:1 safety rating, a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal.

The 3/4" and 1" sizes are top-loading, and the 1-1/2" and 2" sizes are a 3-piece design, so all can be maintained in line.

Where this product is used

• Air and water lines in underground and surface mining that use BSP threaded pipework
• Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon

Features

• Female BSP x female BSP ends, lockout version, 3/4" to 2"
• One-piece ball and stem for a positive on/off action
• Body: SG iron, zinc plated, seal: nitrile butadiene
• Working pressure 300 PSI, temperature -20 to 80°C
• Handle: pressed mild steel on 3/4" and 1", SG iron on 1-1/2" and 2"

Key specifications

Choosing the right option

Both ends are female BSP, so each side needs a male BSP thread. Pick the size from the pipe thread, then fit the lockout version if the valve has to be locked open or closed; Dixon's Econovalve lockout device (ELOK100C and ELOK200C) can also be fitted to existing Econovalves.

The standard (non-lockout) Econovalves, 08/062/113/00 (1") and 08/062/848/00 (2"), are separate part numbers.

Related Dixon products: Dixon 08/062/102/00LO 1" Ball Valve Lockout Minsup NPTF x NPTF Standard, Dixon Minsup Econovalve Ball Valve Lockout Device and Dixon Ball Valve Surelock BSP.
