Dixon 08/062/172/00LO 1" (25 mm) Minsup Econovalve Lockout Ball Valve Surelock x BSP
Available
This Dixon Minsup Econovalve is a lockout ball valve with a Minsup Surelock claw end on one side and a female BSP thread on the other, in 25 mm (1 in) and 50 mm (2 in) sizes (manufacturer-stated). The Surelock end is listed to suit the coupling sizes in the table below.
Dixon rates the Econovalve range at 300 PSI and -20 to 80 degrees C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal (manufacturer-stated). The 1 in size has a top-loading design, and the 2 in size is a 3-piece design, both for in-line maintenance (manufacturer-stated).
Where this product is used
- Connecting a Surelock hose line to a BSP threaded port on mine air and water systems (manufacturer-stated).
- Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon.
Features
- Surelock x female BSP ends, lockout version (manufacturer-stated)
- One-piece ball and stem for a positive on/off action (manufacturer-stated)
- Body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
- Working pressure 300 PSI; temperature -20 to 80 degrees C (manufacturer-stated)
- 1 in top-loading design; 2 in 3-piece design (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Valve type | Minsup Econovalve ball valve, one-piece ball and stem |
| End connections | Minsup Surelock x female BSP |
| Working pressure | 300 PSI |
| Temperature | -20 to 80 degrees C |
| Safety rating | 2:1 |
| Body | SG iron (ISO 1083; 400-250-15), zinc plated (AS1789) (manufacturer-stated) |
| Seal | Nitrile butadiene |
| Ball and stem | SG iron (ISO 1083; 400-250-15) and copper, chrome plated (AS1192), one-piece ball and stem (manufacturer-stated) |
| Handle | Pressed mild steel on 1 in; SG iron (ISO 1083; 400-250-15) on 2 in (manufacturer-stated) |
Key specifications
| Dixon part number | Size | Surelock size to suit | Working pressure |
|---|---|---|---|
| 08/062/172/00LO | 1" (25 mm) | 10 mm (3/8 in) to 32 mm (1-1/4 in) | 300 PSI |
| 08/062/868/00LO | 2" (50 mm) | 40 mm (1-1/2 in) to 50 mm (2 in) | 300 PSI |
Dixon's data sheet describes 08/062/172/00LO as 1 in BSPF x 1 in Surelock with lockout, and 08/062/868/00LO as 2 in BSPF x 2 in Surelock with lockout.
Selecting the right option
Match the Surelock end to your coupling size, and the female BSP end to a male BSP thread on your pipework. The 1 in valve suits the small Surelock range (10 mm to 32 mm) and the 2 in valve suits the medium range (40 mm to 50 mm). If your port is NPT, the 1 in Surelock x female NPT valve is listed under Related products. Surelock couplings are not to be used on steam (manufacturer-stated).
Related products
Related Dixon products: Dixon 08/062/108/00LO 1" Ball Valve Surelock sizes 3/8" - 1-1/4" NPT, Dixon Minsup Lockout Econovalve Surelock Ball Valve and Dixon Econovalve - Ball Valve Lockout BSP Female x BSP Female.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
1
Model Number: 08/062/172/00LO
-
2

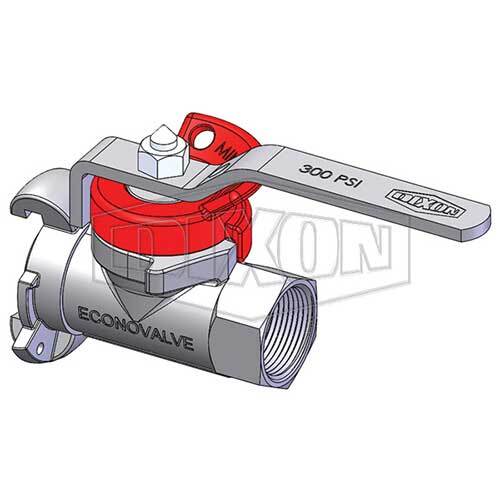

Model Number: 08/062/868/00LO
