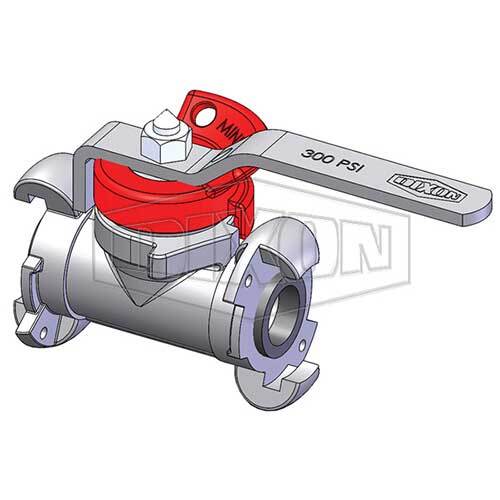

Dixon 08/062/111/00LO Minsup Econovalve Lockout Ball Valve Surelock x Surelock
Available
This Dixon Minsup Econovalve is a lockout ball valve with a Minsup Surelock claw end on each side, in 25 mm (1 in) and 50 mm (2 in) sizes. The Surelock ends are listed to suit the Surelock coupling sizes shown in the table below (manufacturer-stated).
Dixon rates the Econovalve range at 300 PSI and -20 to 80 degrees C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal (manufacturer-stated). The 1 in size has a top-loading design for in-line maintenance, and the 2 in size is a 3-piece design (manufacturer-stated).
Where this product is used
- Mine air and water hose lines that already use Minsup Surelock claw couplings (manufacturer-stated).
- Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon.
Features
- Surelock x Surelock ends, lockout version (manufacturer-stated)
- One-piece ball and stem for a positive on/off action (manufacturer-stated)
- Body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
- Working pressure 300 PSI; temperature -20 to 80 degrees C (manufacturer-stated)
- 1 in top-loading design; 2 in 3-piece design (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Valve type | Minsup Econovalve ball valve, one-piece ball and stem |
| End connections | Surelock x Surelock (to suit Surelock couplings, see table) |
| Working pressure | 300 PSI |
| Temperature | -20 to 80 degrees C |
| Safety rating | 2:1 |
| Body | SG iron (ISO 1083; 400-250-15), zinc plated (AS1789) (manufacturer-stated) |
| Seal | Nitrile butadiene |
| Ball and stem | SG iron (ISO 1083; 400-250-15) and copper, chrome plated (AS1192), one-piece ball and stem (manufacturer-stated) |
| Handle | Pressed mild steel on 1 in; SG iron (ISO 1083; 400-250-15) on 2 in (manufacturer-stated) |
Key specifications
| Dixon part number | Size | Surelock size to suit | Working pressure |
|---|---|---|---|
| 08/062/111/00LO | 1" (25 mm) | 10 mm (3/8 in) to 32 mm (1-1/4 in) | 300 PSI |
| 08/062/869/00LO | 2" (50 mm) | 40 mm (1-1/2 in) to 50 mm (2 in) | 300 PSI |
Dixon's data sheet describes 08/062/111/00LO as 1 in Surelock x 1 in Surelock with lockout. The catalogue lists 08/062/869/00LO as the 2 in valve to suit 40 mm to 50 mm Surelock couplings.
Selecting the right option
Match the valve to the Surelock coupling size, not just the pipe size: the 1 in valve suits the small Surelock range (10 mm to 32 mm) and the 2 in valve suits the medium range (40 mm to 50 mm). Dixon's Surelock coupling information says not to use Surelock couplings on steam (manufacturer-stated), and the Econovalve is listed for air and water.
Related products
Related Dixon products: Dixon Ball Valve Surelock BSP, Dixon 08/062/108/00LO 1" Ball Valve Surelock sizes 3/8" - 1-1/4" NPT and Dixon Minsup Econovalve Ball Valve Lockout Device.
