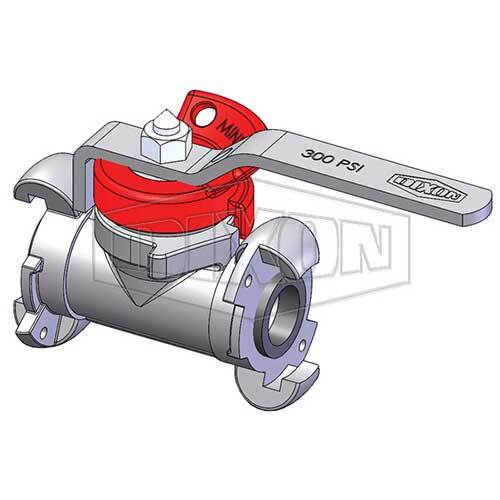

Dixon Minsup lockout ball valve, 2" (50mm)

This Dixon Minsup Econovalve is a lockout ball valve with a Minsup Surelock claw end on each side, in 25mm (1") and 50mm (2") sizes. The Econovalve range is rated at 300 PSI and -20 to 80°C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal. The 1" size has a top-loading design for in-line maintenance, and the 2" size is a 3-piece design.

Where this product is used

• Mine air and water hose lines that already use Minsup Surelock claw couplings
• Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon

Features

• Surelock x Surelock ends, lockout version
• One-piece ball and stem for a positive on/off action
• Body: SG iron, zinc plated, seal: nitrile butadiene
• Working pressure 300 PSI, temperature -20 to 80°C
• 1" top-loading design, 2" 3-piece design

Key specifications

Choosing the right option

Match the valve to the Surelock coupling size, not just the pipe size: the 1" valve suits the small Surelock range (10mm to 32mm) and the 2" valve suits the medium range (40mm to 50mm). Not to use Surelock couplings on steam, and the Econovalve suits air and water.

08/062/111/00LO is 1" Surelock x 1" Surelock with lockout.

Related Dixon products: Dixon Ball Valve Surelock BSP, Dixon 08/062/108/00LO 1" Ball Valve Surelock sizes 3/8" - 1-1/4" NPT and Dixon Minsup Econovalve Ball Valve Lockout Device.
