Dixon Minsup lockout ball valve, 2" (50mm)

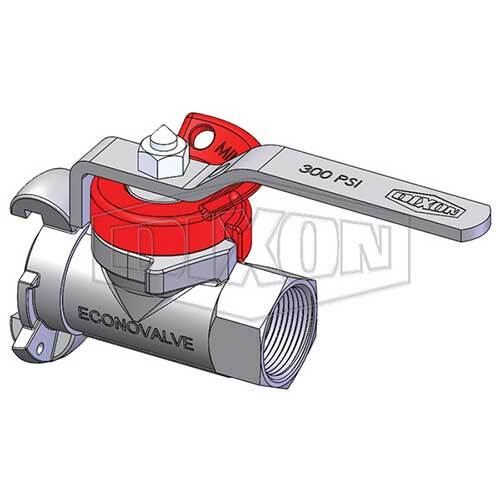

This Dixon Minsup Econovalve is a lockout ball valve with a Minsup Surelock claw end on one side and a female BSP thread on the other, in 25mm (1") and 50mm (2") sizes. The Econovalve range is rated at 300 PSI and -20 to 80°C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal. The 1" size has a top-loading design, and the 2" size is a 3-piece design, both for in-line maintenance.

Where this product is used

• Connecting a Surelock hose line to a BSP threaded port on mine air and water systems
• Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon

Features

• Surelock x female BSP ends, lockout version
• One-piece ball and stem for a positive on/off action
• Body: SG iron, zinc plated, seal: nitrile butadiene
• Working pressure 300 PSI, temperature -20 to 80°C
• 1" top-loading design, 2" 3-piece design

Key specifications

Choosing the right option

Match the Surelock end to your coupling size, and the female BSP end to a male BSP thread on your pipework. The 1" valve suits the small Surelock range (10mm to 32mm) and the 2" valve suits the medium range (40mm to 50mm). Surelock couplings are not to be used on steam.

08/062/172/00LO is 1" BSPF x 1" Surelock with lockout, and 08/062/868/00LO is 2" BSPF x 2" Surelock with lockout.
