Dixon Minsup Econovalve 2" lockout

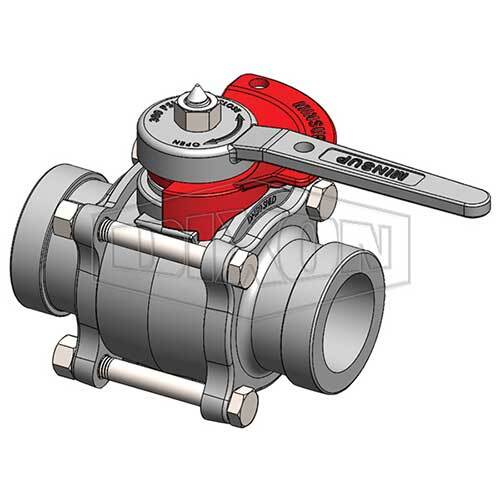

This Dixon Minsup Econovalve is a 50mm (2") lockout ball valve with a shouldered end on each side. It is a 2" shouldered x 2" shouldered valve with lockout. The Econovalve range is rated at 300 PSI and -20 to 80°C, with a one-piece ball and stem, a zinc-plated SG iron body, a nitrile butadiene seal and an SG iron handle on the 2" size.

The 2" size is a 3-piece design for in-line maintenance.

Where this product is used

• Mine air and water lines that use shouldered pipe ends, such as the 50mm (2") shouldered quick release clamps and adaptors in Dixon's mining range
• Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon

Features

• Shouldered x shouldered ends, lockout version
• One-piece ball and stem for a positive on/off action
• Body: SG iron, zinc plated, seal: nitrile butadiene
• Working pressure 300 PSI, temperature -20 to 80°C
• 2" 3-piece design allows in-line maintenance

Key specifications

Choosing the right option

Check that the shoulder profile on your pipe or adaptor matches before ordering: both ends are shouldered, so no thread is involved.

Related Dixon products: Dixon Econovalve with Lockout Device BSP, Dixon Ball Valve Surelock BSP and Dixon Minsup Econovalve Ball Valve Lockout Device.
