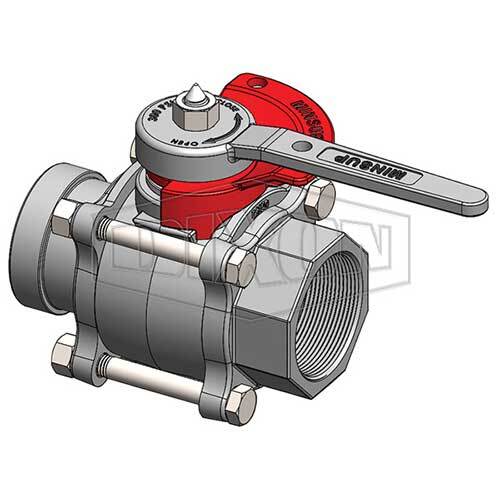

Dixon 08/062/118/00LO 2" Minsup Lockout Shouldered End x F (1") Ball
Regular price
$76.37
Sale price
$76.37
Regular price
Inc. GST
Available
Size of 2" Shouldered matches standard line work without modification. Rated to ½” to 2” - 300 PSI, so you can match it to line pressure with confidence. Body materials: Spheroidal graphite cast iron to ISO 1083, 400-250-15 SGI. Handle: Pressed mild steel. Ball & Stem: Spheroidal graphite cast iron to ISO 1083, Chrome copper plated to AS1192.
Key Specifications
| Size | 2" Shouldered |
| Working Pressure | ½” to 2” - 300 PSI |
| Temperature Rating | -20°C to 80°C |
| Material | SG Iron to ISO 1083 |
| Female Thread | BSP |
| Female Thread Size | 1" / 2" |
| Seat | Nitrile Butadiene |
| Temperature Rating Metric | -20°C to 80°C |
| Standards referenced | ISO 1083, AS1192, AS1789 |
Where This Is Used
- This is a general-purpose ball valve suitable for air and water applications in the mining industry.
- Solid construction with a unique one-piece ball and stem provide a positive on/off action.
- In-line maintenance is easy for the top-loading 20mm (¾”) and 25mm (1”) design, and the 3-piece 40mm (1½”) and 50mm (2”) design.
- General purpose ball valve suitable for mining and industrial applications.
Features
- Solid construction with unique one piece ball and stem provides positive on/off action.
- In-line maintenance is easy.
- Supplied with lock device fitted.
