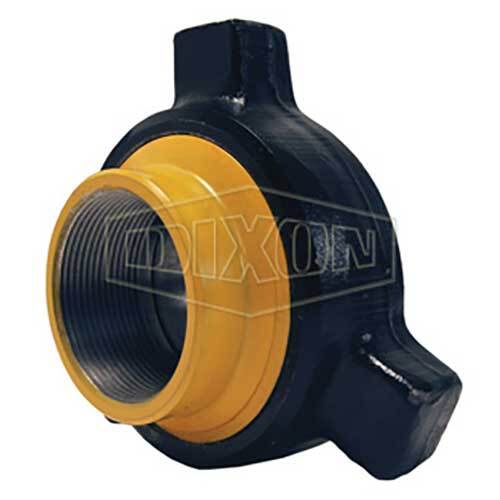

Dixon HU100200BW 2" 100 Series Hammer Union Butt Weld Forged Steel

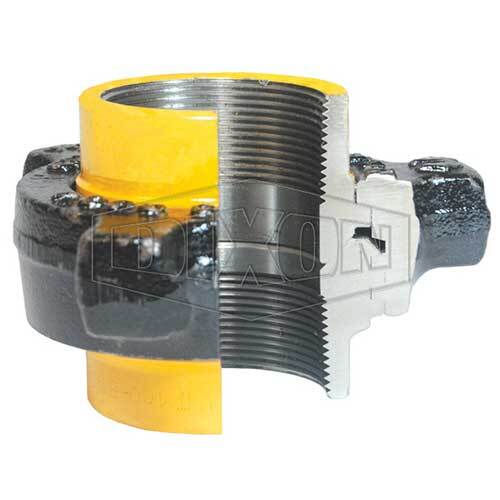

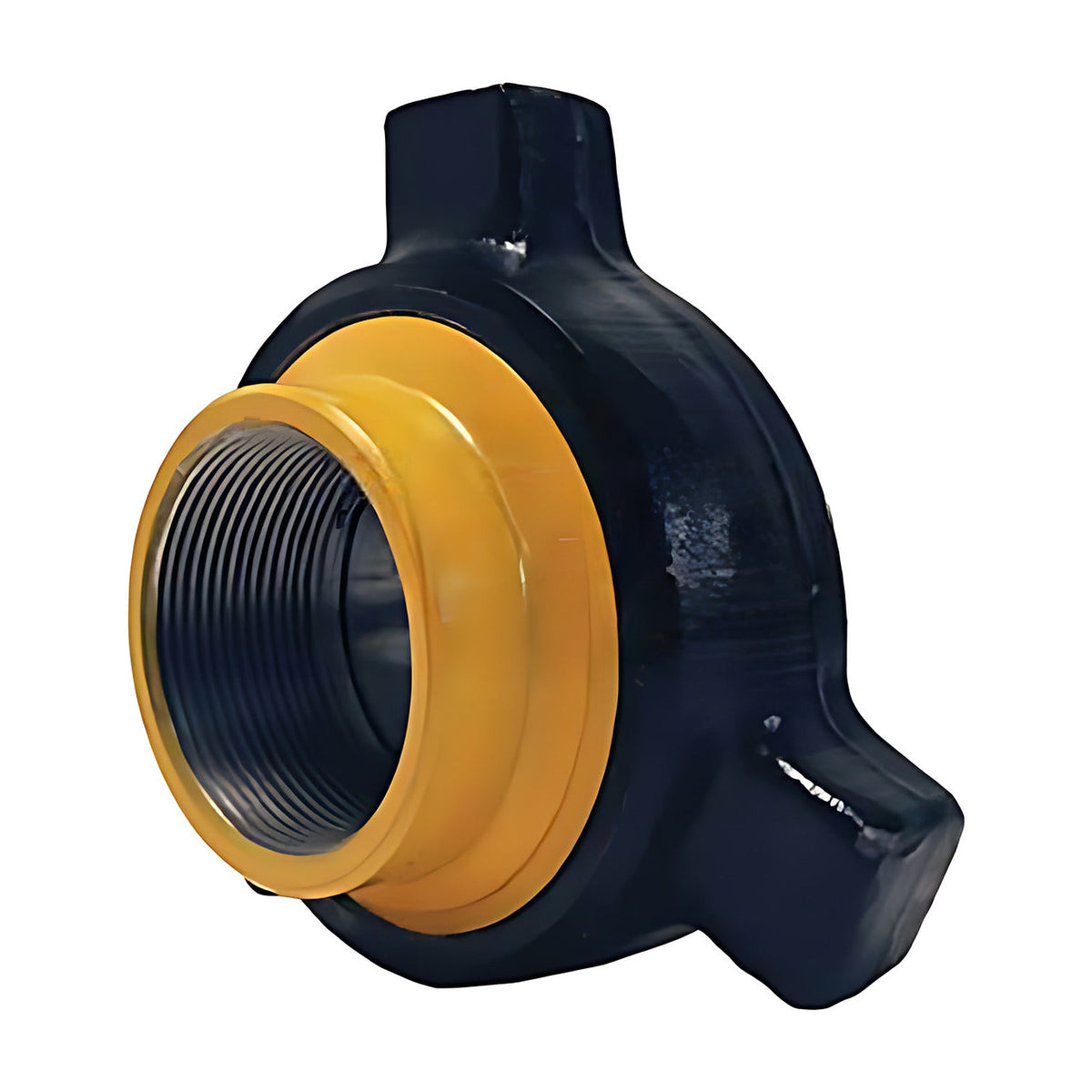

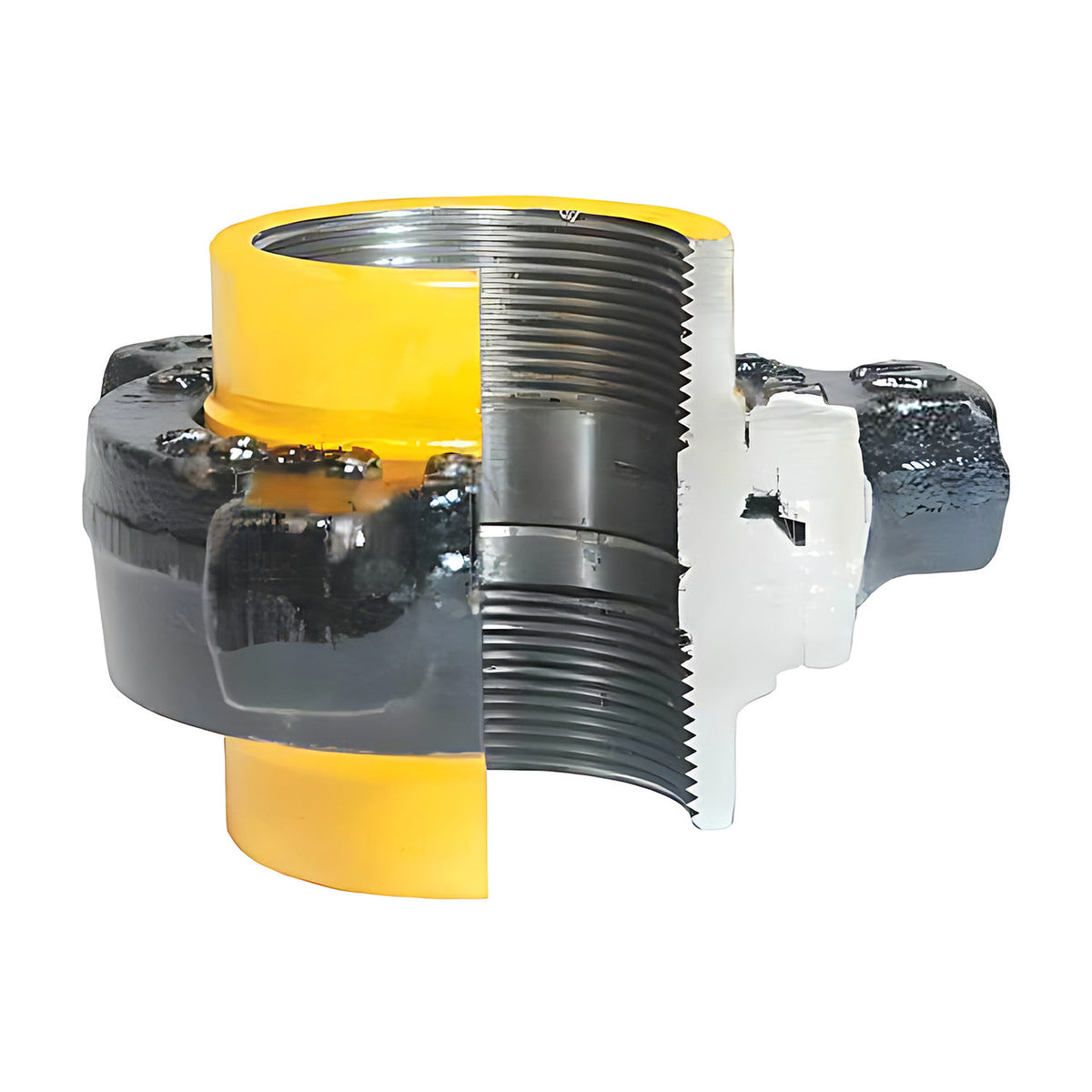

This Dixon 100 Series hammer union is forged steel with butt weld ends, a yellow sub and a black nut. Two sizes are listed: HU100200BW for 2" and HU100400BW for 4". Dixon rates the series at 1000 PSI (69 bar) NSCWP and states that its butt weld ends are schedule 80 (manufacturer-stated).

NSCWP means non-shock cold water pressure: the rated value is the maximum pressure at an ambient temperature of 21 degrees C, with no pressure spikes above it and no instantaneous pressure rises (manufacturer-stated). Dixon gives the temperature range as -32 to +93 degrees C and lists the 100 Series for low-pressure manifolds and lines running air, water, oil or gas (manufacturer-stated).

Where this product is used

• Low-pressure manifolds and lines running air, water, oil or gas where the union is welded in (manufacturer-stated).
• Water, brine, water-based chemical and proppant slurry lines at hydraulic fracturing sites (manufacturer-stated).

Features

• Forged steel hammer union with butt weld ends (manufacturer-stated)
• Butt weld ends are schedule 80 (manufacturer-stated)
• Yellow sub and black nut (manufacturer-stated)
• Rating: 1000 PSI (69 bar) NSCWP (manufacturer-stated)
• Temperature range: -32 to +93 degrees C (manufacturer-stated)

Common specifications

Key specifications

NSCWP is non-shock cold water pressure.

Selecting the right option

Hammer unions work at very high pressure, and Dixon warns that mixing components from different series can lead to destruction of property, serious injury or death (manufacturer-stated). Keep the sub, nut and seal in the same series and size, and check the rating suits your system. Check the pipe schedule you are welding to against the schedule 80 ends. The threaded (FNPT) 100 Series is a separate product (linked below).
