Dixon HU206100 1" 206 Series Hammer Union
Out of stock

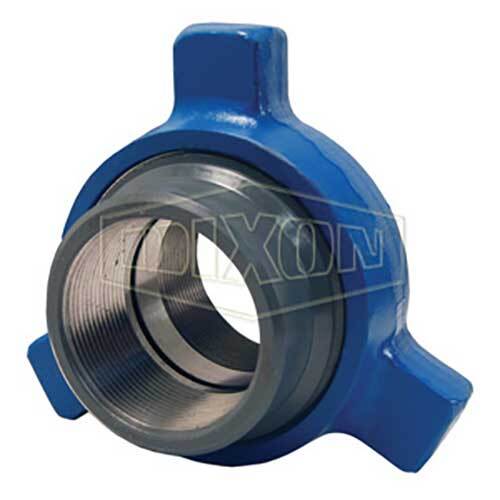

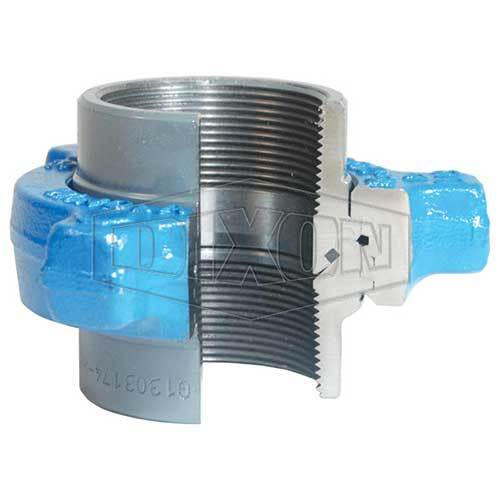

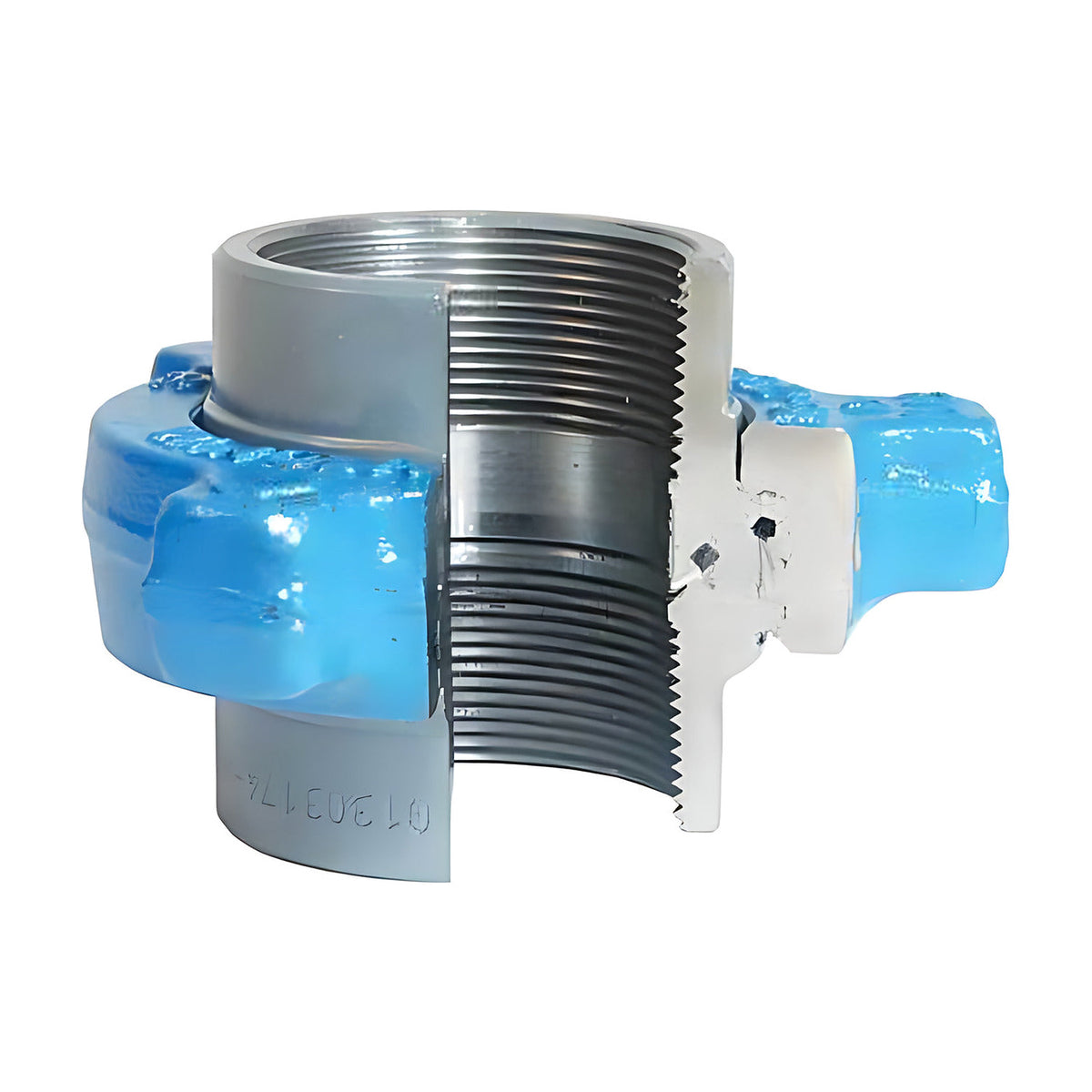

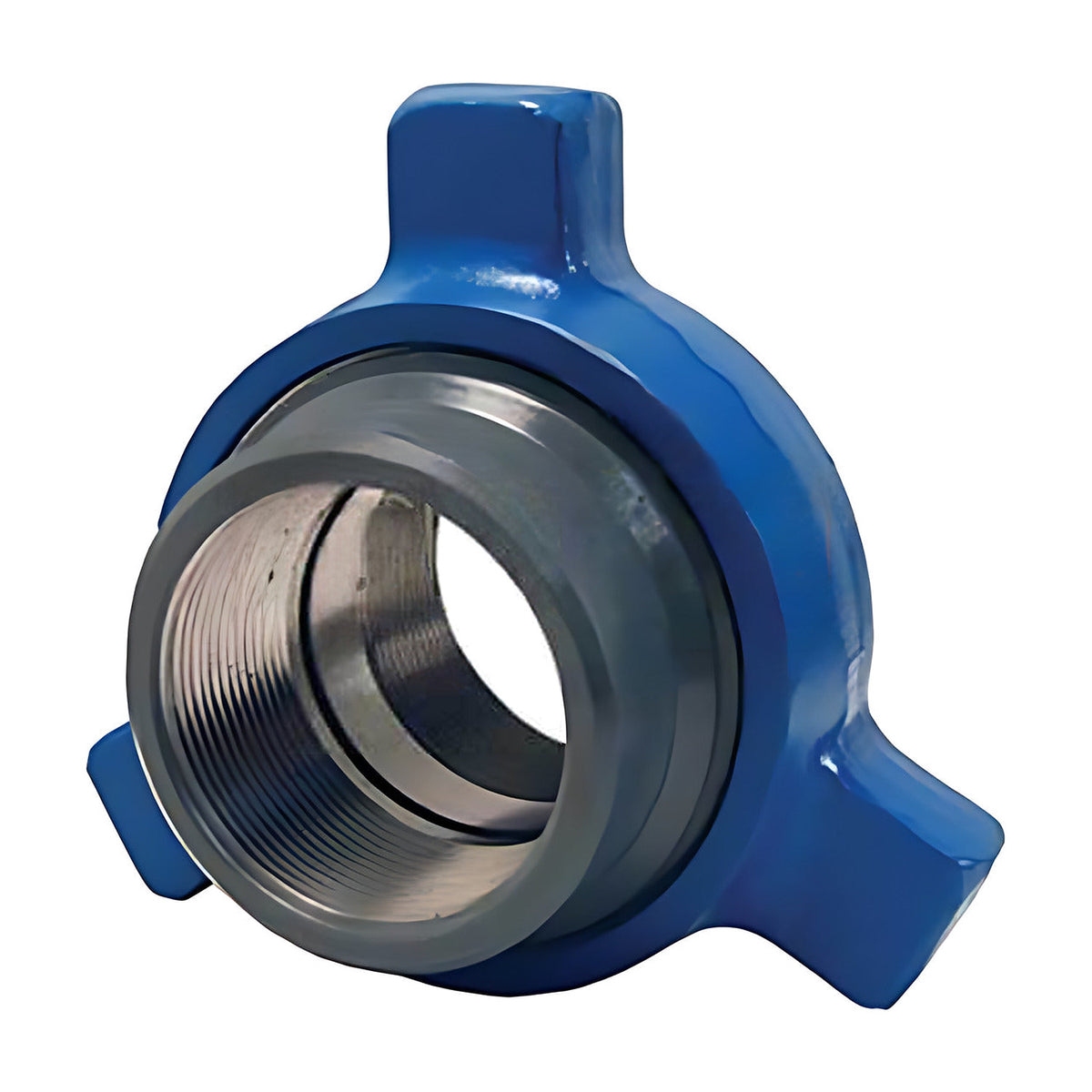

This Dixon 206 Series hammer union is forged steel with female NPT (FNPT) threaded ends, a grey sub and a blue nut. Dixon lists eight sizes from 1" (HU206100) to 8" (HU206800) and rates the series at 2000 PSI (138 bar) NSCWP (manufacturer-stated).
NSCWP means non-shock cold water pressure: the rated value is the maximum pressure at an ambient temperature of 21 degrees C, with no pressure spikes above it and no instantaneous pressure rises (manufacturer-stated). Dixon gives the temperature range as -32 to +93 degrees C, and describes the 200 and 206 series as having a nitrile O-ring mounted fitting body (manufacturer-stated).
Where this product is used
- General service lines running air, water, oil or gas up to 2000 PSI NSCWP (manufacturer-stated).
- Transfer of water, brine, water-based chemicals and gelatinous proppant slurry at hydraulic fracturing sites (manufacturer-stated).
- Hose and pipework connections that need a Figure 206 union, such as the 206 caps in this range.
Features
- Forged steel hammer union with FNPT threaded ends (manufacturer-stated)
- Grey sub and blue nut (manufacturer-stated)
- Rating: 2000 PSI (138 bar) NSCWP (manufacturer-stated)
- Nitrile O-ring mounted fitting body (manufacturer-stated)
- Eight sizes from 1" to 8" (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Series | 206 Series (grey sub, blue nut) |
| Material | Forged steel |
| End connection | FNPT threaded |
| Rating | 2000 PSI (138 bar) NSCWP |
| Temperature range | -32 to +93 degrees C |
| Seal | Nitrile O-ring mounted fitting body |
| Sizes | 1" to 8" |
Key specifications
| Dixon part number | Size | Catalogue size (mm) | Configuration | Rating (NSCWP) |
|---|---|---|---|---|
| HU206100 | 1" | 25 | FNPT threaded | 2000 PSI |
| HU206150 | 1-1/2" | 40 | FNPT threaded | 2000 PSI |
| HU206200 | 2" | 50 | FNPT threaded | 2000 PSI |
| HU206250 | 2-1/2" | 65 | FNPT threaded | 2000 PSI |
| HU206300 | 3" | 80 | FNPT threaded | 2000 PSI |
| HU206400 | 4" | 100 | FNPT threaded | 2000 PSI |
| HU206600 | 6" | 150 | FNPT threaded | 2000 PSI |
| HU206800 | 8" | 200 | FNPT threaded | 2000 PSI |
NSCWP is non-shock cold water pressure. Sizes in millimetres are from Dixon's catalogue.
Selecting the right option
Hammer unions work at very high pressure, and Dixon warns that mixing components from different series can lead to destruction of property, serious injury or death (manufacturer-stated). Keep the sub, nut and seal in the same series and size, and check the rating suits your system. The 206 caps in Dixon's range fit the 206 thread, for example the 4" cap HU207400 linked below. Dixon lists a 200 series in the same sizes with the same 2000 PSI rating; confirm the figure number of your existing unions before you order.
