Dixon HUC207400 4" Hammer Union Cap Forged Steel
Out of stock

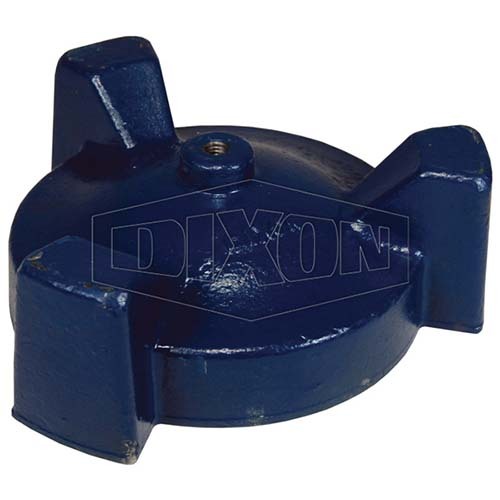

This Dixon HUC207400 is a 4" (100mm) hammer union cap for Figure 206 connections. It is forged steel meeting AISI standards. The cap closes off a hammer union connection so that fluid does not leak while the line is under pressure or the equipment is being moved.
The cap has larger lugs than a standard nut, which makes it easier to fit and remove, and a hole for a chain or cable. The bolt is grade 8 carbon steel and the seal as O-ring O429BU.
Where this product is used
- Closing off hammer union connections on manifolds and hose assemblies, including in pressurised service or in transit
- Preventing leakage of hydraulic fracturing fluids from open hammer union connections
Features
- Forged steel cap meeting AISI standards
- Larger lugs for easier fitting and removal
- Threaded hole for attaching a chain or cable
- Grade 8 carbon steel bolt
- Fits Figure 206 threads in the 4" size
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Size | 4" (100mm) |
| Fits | Figure 206 hammer union threads |
| Material | Forged steel meeting AISI standards |
| Bolt | Grade 8 carbon steel |
| Seal | O-ring O429BU |
Choosing the right option
Check that your hammer union is a Figure 206 in the 4" size. Mixing parts from different series can cause destruction of property, serious injury or death. A chain or cable keeps the cap with the equipment when it is removed. The cap O-ring separately is O429BU.
Related Dixon products: Dixon 206 Series Hammer Union and Dixon 100 Series Hammer Union Threaded Forged Steel.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon HUC207400 4" Hammer Union Cap Forged Steel
SKU: A0132080 | Model: HUC207400
Dixon HUC207400: 4" Figure 206 hammer union cap.
