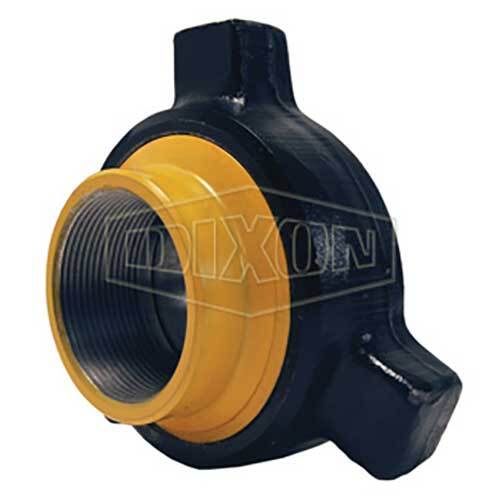

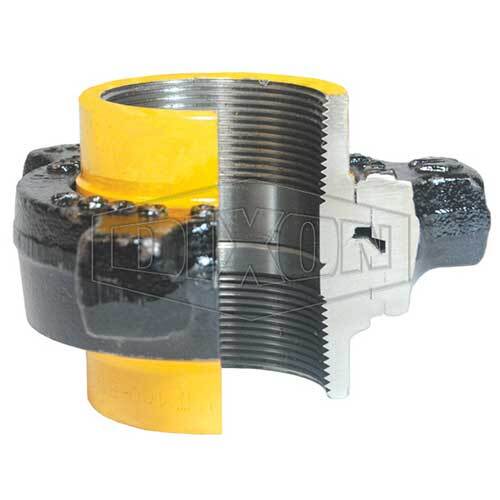

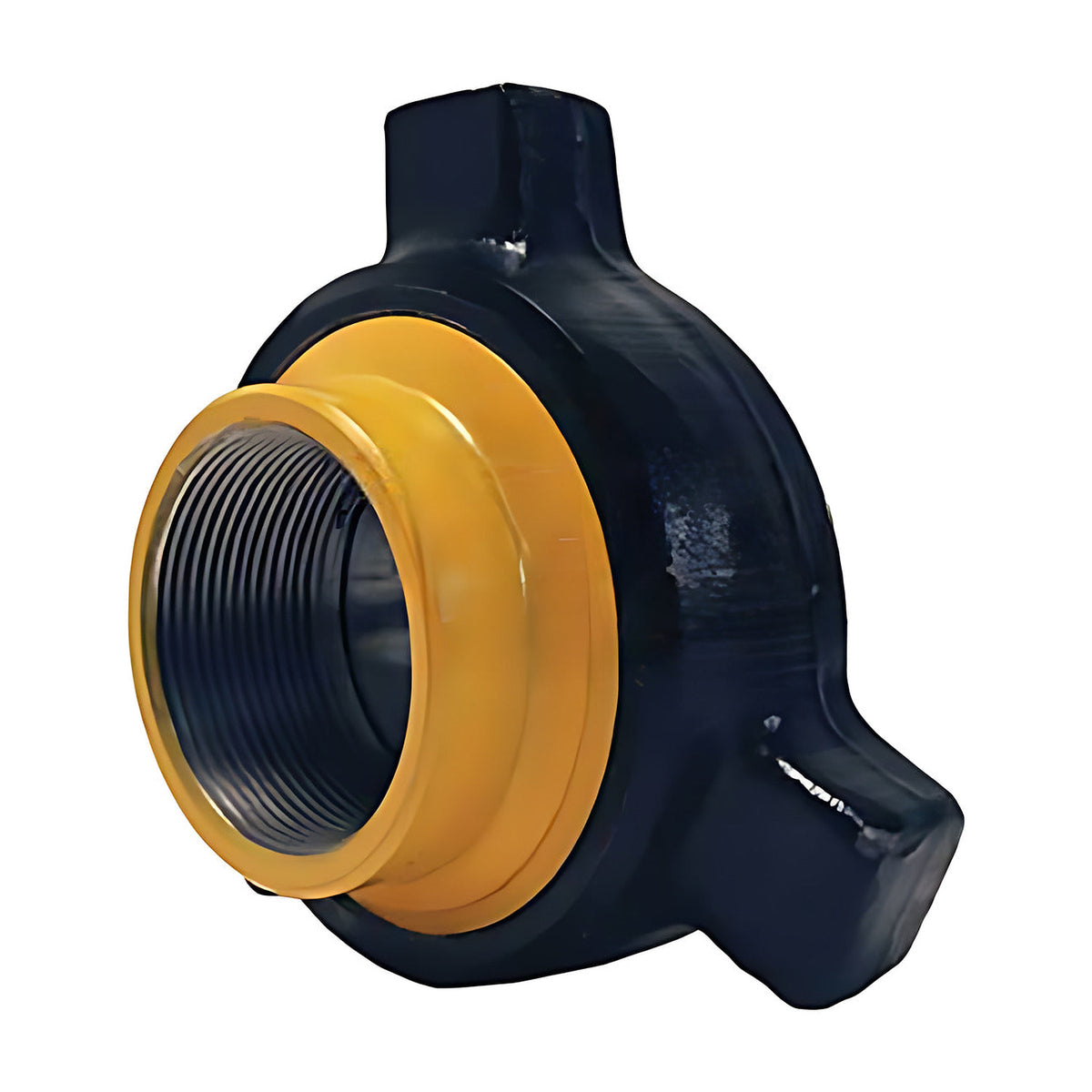

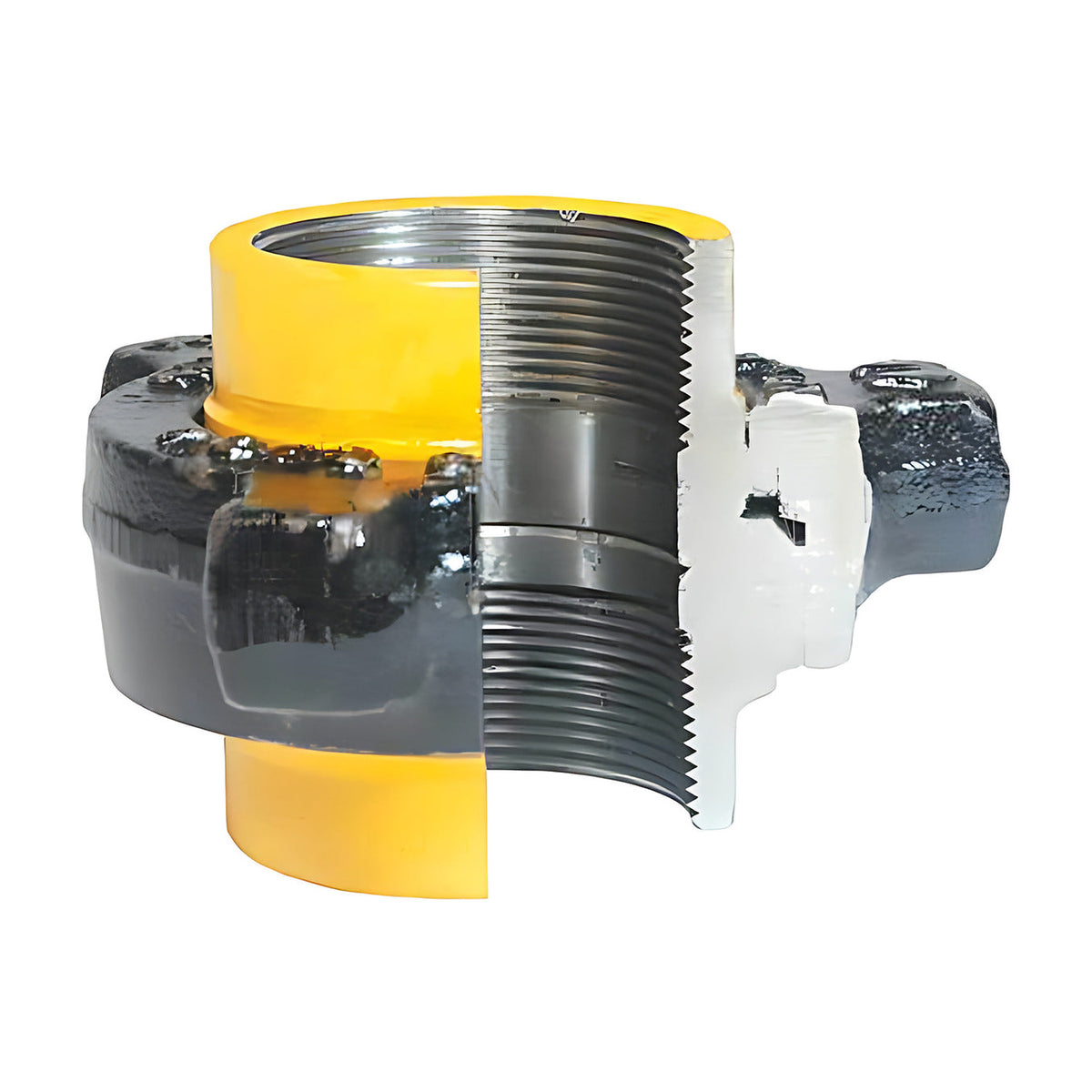

Dixon HU100200 2" 100 Series Hammer Union Threaded Forged Steel
Available
This Dixon 100 Series hammer union is forged steel with female NPT (FNPT) threaded ends, a yellow sub and a black nut. Dixon lists six sizes from 2" (HU100200) to 8" (HU100800) and rates the series at 1000 PSI (69 bar) NSCWP (manufacturer-stated).
NSCWP means non-shock cold water pressure: the rated value is the maximum pressure at an ambient temperature of 21 degrees C, with no pressure spikes above it and no instantaneous pressure rises (manufacturer-stated). Dixon gives the temperature range as -32 to +93 degrees C and lists the 100 Series for low-pressure manifolds and lines running air, water, oil or gas (manufacturer-stated).
Where this product is used
- Low-pressure manifolds and lines running air, water, oil or gas (manufacturer-stated).
- Transfer of water, brine, water-based chemicals and water-based acids at hydraulic fracturing sites (manufacturer-stated).
- Threaded connections on pipework that needs a union that can be broken and made up with a hammer.
Features
- Forged steel hammer union with FNPT threaded ends (manufacturer-stated)
- Yellow sub and black nut (manufacturer-stated)
- Rating: 1000 PSI (69 bar) NSCWP (manufacturer-stated)
- Temperature range: -32 to +93 degrees C (manufacturer-stated)
- Six sizes from 2" to 8" (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Series | 100 Series (yellow sub, black nut) |
| Material | Forged steel |
| End connection | FNPT threaded |
| Rating | 1000 PSI (69 bar) NSCWP |
| Temperature range | -32 to +93 degrees C |
| Sizes | 2" to 8" |
Key specifications
| Dixon part number | Size | Catalogue size (mm) | Configuration | Rating (NSCWP) |
|---|---|---|---|---|
| HU100200 | 2" | 50 | FNPT threaded | 1000 PSI |
| HU100250 | 2-1/2" | 65 | FNPT threaded | 1000 PSI |
| HU100300 | 3" | 80 | FNPT threaded | 1000 PSI |
| HU100400 | 4" | 100 | FNPT threaded | 1000 PSI |
| HU100600 | 6" | 150 | FNPT threaded | 1000 PSI |
| HU100800 | 8" | 200 | FNPT threaded | 1000 PSI |
NSCWP is non-shock cold water pressure. Sizes in millimetres are from Dixon's catalogue.
Selecting the right option
Hammer unions work at very high pressure, and Dixon warns that mixing components from different series can lead to destruction of property, serious injury or death (manufacturer-stated). Keep the sub, nut and seal in the same series and size, and check the rating suits your system. For higher pressure, Dixon lists the 200 and 206 series (grey sub, blue nut) at 2000 PSI NSCWP. The butt weld version of the 100 Series is listed separately (linked below).
