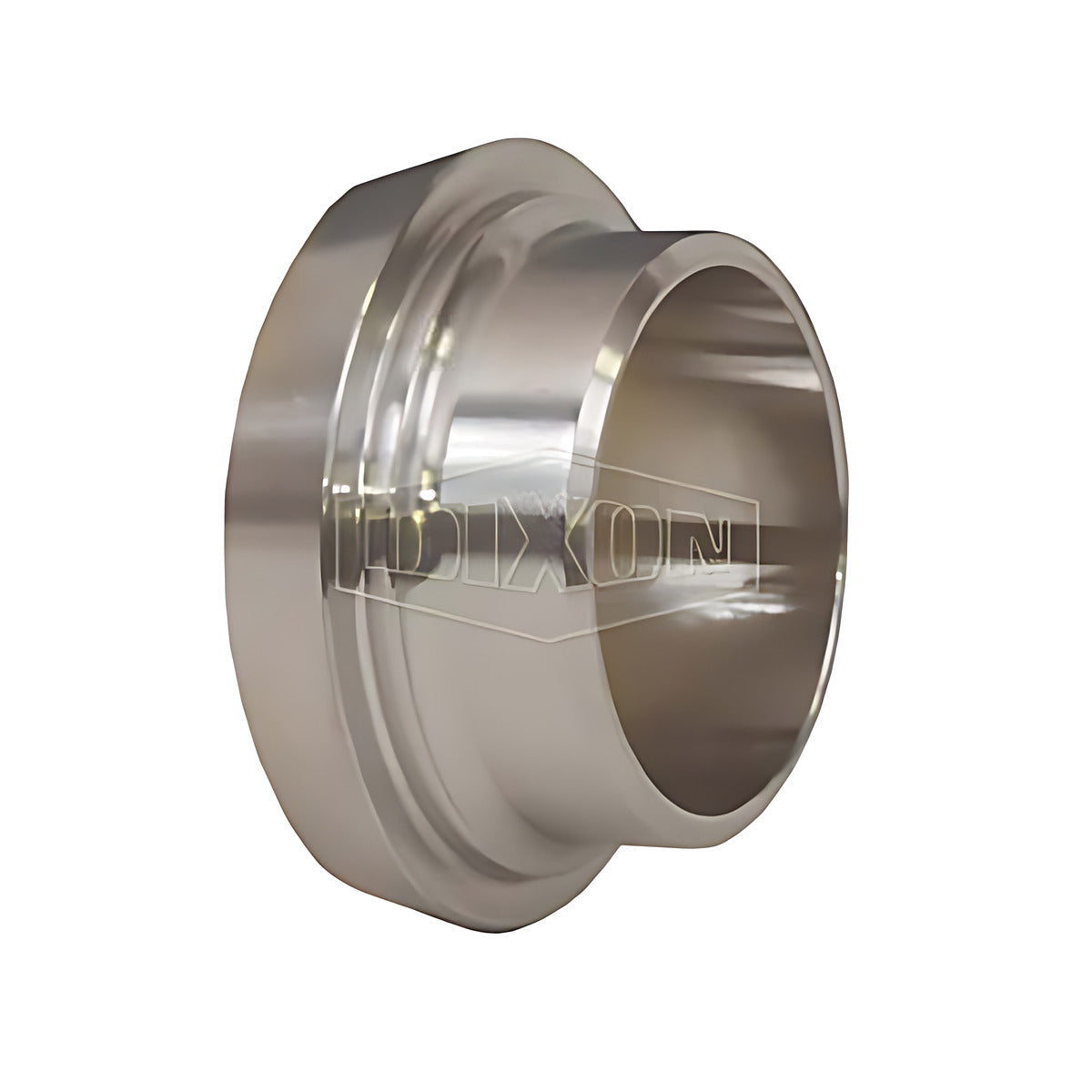

Dixon 14A-R300DIN 3" 316 Stainless Steel DIN Weld Liner
Available
This Dixon DIN weld liner is the 316 stainless steel weld-on liner of a DIN union, which Dixon describes as made for German and other European equipment. Dixon lists 8 sizes, from 1/2" (DN15) to 4" (DN100) (manufacturer-stated).
Dixon says its DIN unions are manufactured in accordance with DIN 11851 (EN10357) and consist of a round slotted nut, weld liner, weld male and seal, with a captive seal for a crevice-free internal bore (manufacturer-stated). Its 2024 catalogue says the range is made to imperial DIN 11851.
Dixon also says DIN fittings can be supplied in imperial or metric DIN, and that the weld side of its euro fittings is made to imperial tube dimensions (manufacturer-stated).
Where this product is used
- Connecting to German and other European equipment with DIN unions (manufacturer-stated).
- Welding DIN union connections onto imperial stainless tube in food processing, beverage and brewery pipework (manufacturer-stated).
Features
- 316 stainless steel weld liner for DIN unions (manufacturer-stated)
- Manufactured in accordance with DIN 11851 (EN10357) (manufacturer-stated)
- Captive seal design for a crevice-free internal bore (manufacturer-stated)
- Weld side made to imperial tube dimensions (manufacturer-stated)
- 3A sanitary finish listed for inside and outside diameters (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel |
| Union type | DIN |
| Standard | DIN 11851 (EN10357) (manufacturer-stated) |
| Weld side | Imperial tube dimensions |
| Sizes | 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1-1/2" (DN40), 2" (DN50), 2-1/2" (DN65), 3" (DN80), 4" (DN100) |
Key specifications
| Dixon part number | Size | DN size | A (mm) |
|---|---|---|---|
| 14A-R100DIN | 1" | DN25 | 22 |
| 14A-R150DIN | 1-1/2" | DN40 | 26 |
| 14A-R200DIN | 2" | DN50 | 28 |
| 14A-R250DIN | 2-1/2" | DN65 | 32 |
| 14A-R300DIN | 3" | DN80 | 37 |
| 14A-R400DIN | 4" | DN100 | 44 |
| 14A-R50DIN | 1/2" | DN15 | |
| 14A-R75DIN | 3/4" | DN20 |
A is the dimension letter in Dixon's catalogue drawing, in millimetres. Dixon's catalogues give different B and C figures for these liners, so only A is shown. No dimensions are published for the 1/2" and 3/4" liners under these part numbers.
Selecting the right option
Confirm the union is a DIN style before ordering, because DIN, SMS and RJT unions are not interchangeable. Choose the size from the tube OD you are welding to and the DN size of the equipment. The liner works with a DIN round slotted nut, a weld male and a DIN seal, which Dixon lists separately.
