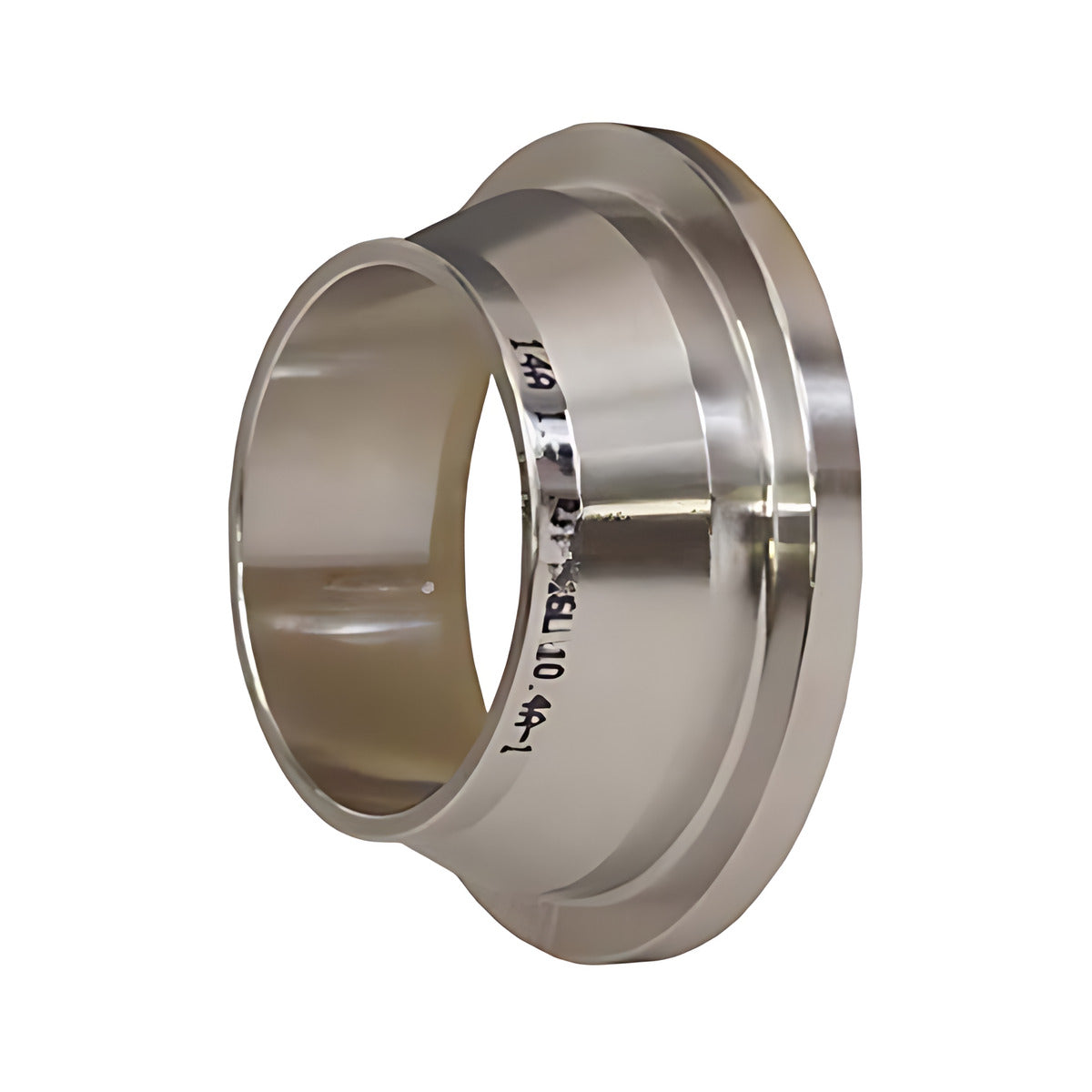

Dixon 14A-R200RJT 2" 316 Stainless Steel BSM Welding Liner
Available
This Dixon BSM welding liner is the 316 stainless steel liner used in the Australian RJT union, and it is welded to tube. Dixon's catalogue lists it in 6 sizes, from 1" to 4" (manufacturer-stated), and its Hygienic Product Catalogue adds a 6" size without dimensions.
Dixon lists the RJT (BSM) range under AS1528.2 - 2001 screwed couplings (manufacturer-stated). It describes the Australian union as having a captive seal for a seamless, crevice-free internal bore, with a distinct liner and an O-ring, and a choice of slotted or hex nut (manufacturer-stated).
Dixon's 2024 catalogue lists a 3A sanitary finish on the inside and outside diameters of its DIN, SMS and RJT euro fittings, and notes that the weld side is made to imperial tube dimensions (manufacturer-stated).
Where this product is used
- Connecting tubes, valves, pumps, tanks and hoses in the food and beverage industry (manufacturer-stated).
- Welding an RJT union connection onto imperial stainless tube in food processing, beverage and brewery pipework (manufacturer-stated).
Features
- 316 stainless steel weld liner for the Australian RJT (BSM) union (manufacturer-stated)
- Standard listed: AS1528.2 - 2001 screwed couplings (manufacturer-stated)
- Captive seal design for a crevice-free internal bore (manufacturer-stated)
- Weld side made to imperial tube dimensions (manufacturer-stated)
- 3A sanitary finish listed for inside and outside diameters (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel |
| Union type | RJT (BSM), Australian version |
| Standard | AS1528.2 - 2001 screwed couplings (manufacturer-stated) |
| Weld side | Imperial tube dimensions |
| Sizes | 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
Key specifications
| Dixon part number | Size | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 14A-R100RJT | 1" | 19.5 | 22.1 | 25.4 |
| 14A-R150RJT | 1-1/2" | 19.5 | 34.8 | 38.1 |
| 14A-R200RJT | 2" | 19.5 | 47.5 | 50.8 |
| 14A-R250RJT | 2-1/2" | 19.5 | 60.2 | 63.5 |
| 14A-R300RJT | 3" | 19.5 | 72.9 | 76.2 |
| 14A-R400RJT | 4" | 19.5 | 97.4 | |
| 14A-R600RJT | 6" |
A, B and C are the dimension letters in Dixon's catalogue drawing, in millimetres. Dixon does not publish dimensions for the 6" liner. The 4" C figure is left blank because Dixon's catalogues give 101.85 and 101.6 for it.
Selecting the right option
This is the Australian BSM liner. Dixon lists a different liner for the New Zealand version of the RJT union (the 14A-R...RJT-NZ series), so check which version your fitting is before ordering. Nuts and males can be interchanged between the versions, but the liner and O-ring differ (manufacturer-stated). The CIP flat face liner is a separate part, and Dixon lists a standard O-ring range and a separate CIP range, so match the O-ring to the liner.
