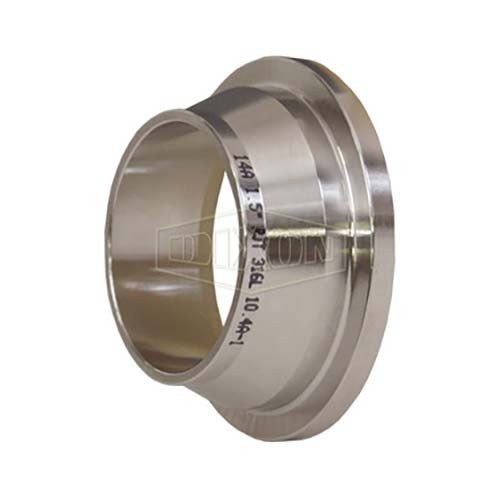

Dixon BSM (RJT) welding liner, 1-1/2"
Out of stock
This Dixon BSM welding liner is the 316 stainless steel liner used in the Australian RJT union, and it is welded to tube. The Australian union has a captive seal for a seamless, crevice-free internal bore, with a distinct liner and an O-ring, and a choice of slotted or hex nut.
Where this product is used
- Connecting tubes, valves, pumps, tanks and hoses in the food and beverage industry
- Welding an RJT union connection onto imperial stainless tube in food processing, beverage and brewery pipework
Features
- 316 stainless steel weld liner for the Australian RJT (BSM) union
- Standard: AS1528.2 - 2001 screwed couplings
- Captive seal design for a crevice-free internal bore
- Weld side made to imperial tube dimensions
- 3A sanitary finish for inside and outside diameters
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | 316 stainless steel |
| Union type | RJT (BSM), Australian version |
| Standard | AS1528.2 - 2001 screwed couplings |
| Weld side | Imperial tube dimensions |
| Sizes | 1", 1-1/2", 2", 2-1/2", 3", 4", 6" |
Choosing the right option
This is the Australian BSM liner. Dixon also offers a different liner for the New Zealand version of the RJT union (the 14A-R...RJT-NZ series), so check which version your fitting is before ordering. Nuts and males can be interchanged between the versions, but the liner and O-ring differ. The CIP flat face liner is a separate part, and Dixon also offers a standard O-ring range and a separate CIP range, so match the O-ring to the liner.
Related Dixon products: Dixon 316 Stainless Steel RJT-14 CIP Welding Liner, Dixon EPDM RJT O Ring Gasket and Dixon Black Buna-N RJT Gasket Red Dot.
| Option | Part number | SKU |
|---|---|---|
| 1" | 14A-R100RJT | A0067735 |
| 1-1/2" | 14A-R150RJT | A0067740 |
| 2" | 14A-R200RJT | A0067745 |
| 2-1/2" | 14A-R250RJT | A0067750 |
| 3" | 14A-R300RJT | A0067755 |
| 4" | 14A-R400RJT | A0067760 |
| 6" | 14A-R600RJT | A0067765 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon 316 Stainless Steel BSM Welding Liner: 1-1/2"
SKU: A0067740 | Model: 14A-R150RJT
Dixon 14A-R150RJT: 1-1/2" BSM (RJT) welding liner, 316 stainless steel, Australian RJT union. Dimensions: A 19.5, B 34.8, C 38.1mm.
