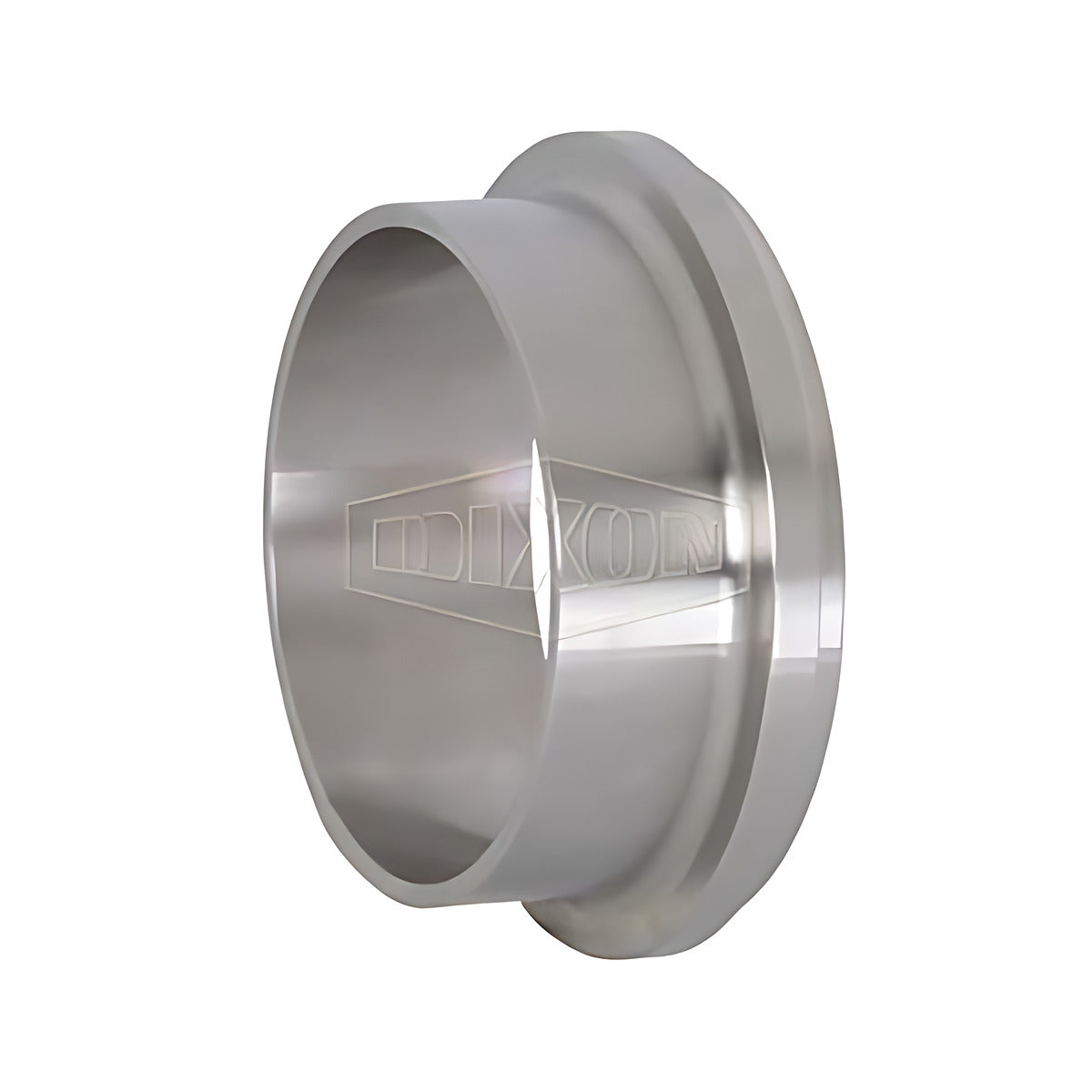

Dixon 14A-R100SMS 1" 316 Stainless Steel SMS Long Weld Liner
Out of stock
This Dixon SMS long weld liner is a 316 stainless steel liner for SMS unions, and it is welded to tube. Dixon lists it in 6 sizes, from 1" to 4" (DN25 to DN101.6) (manufacturer-stated).
Dixon's 2024 catalogue notes that its SMS fittings are manufactured in accordance with the Swedish Milk Standard, ISO 2037 and ISO 2851 (manufacturer-stated). It lists the liner as an SMS x tube OD welding liner.
Dixon also lists a 3A sanitary finish on the inside and outside diameters of its euro fittings and says the weld side is made to imperial tube dimensions (manufacturer-stated).
Where this product is used
- Welding SMS union connections onto imperial stainless tube in food processing, beverage and brewery pipework (manufacturer-stated).
- Dairy, beverage and brewery lines that use SMS fittings.
Features
- 316 stainless steel long weld liner for SMS unions (manufacturer-stated)
- SMS fittings made to the Swedish Milk Standard, ISO 2037 and ISO 2851 (manufacturer-stated)
- Sizes 1" to 4" with DN sizes DN25 to DN101.6 (manufacturer-stated)
- Weld side made to imperial tube dimensions (manufacturer-stated)
- 3A sanitary finish listed for inside and outside diameters (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | 316 stainless steel |
| Union type | SMS |
| Standard | Swedish Milk Standard, ISO 2037 and ISO 2851 (manufacturer-stated) |
| Weld side | Imperial tube dimensions |
| Sizes | 1", 1-1/2", 2", 2-1/2", 3", 4" |
Key specifications
| Dixon part number | Size | DN size | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
| 14A-R100SMS | 1" | 25 | 15.5 | 22.1 | 25.4 |
| 14A-R150SMS | 1-1/2" | 38 | 16.0 | 34.8 | 38.1 |
| 14A-R200SMS | 2" | 51 | 17.0 | 47.5 | 50.8 |
| 14A-R250SMS | 2-1/2" | 63.5 | 17.0 | 60.2 | 63.5 |
| 14A-R300SMS | 3" | 76 | 19.0 | 72.9 | 76.2 |
| 14A-R400SMS | 4" | 101.6 | 19.0 | 97.4 | 101.6 |
DN size, A, B and C are as printed in the 2024 Dixon catalogue, in millimetres. This liner is not in the Australian main catalogue.
Selecting the right option
Confirm the union is SMS before ordering, because SMS, DIN and RJT unions are not interchangeable. Choose the size from the tube OD you are welding to. The liner works with an SMS round nut, a weld male and an SMS seal ring, which Dixon lists separately.
