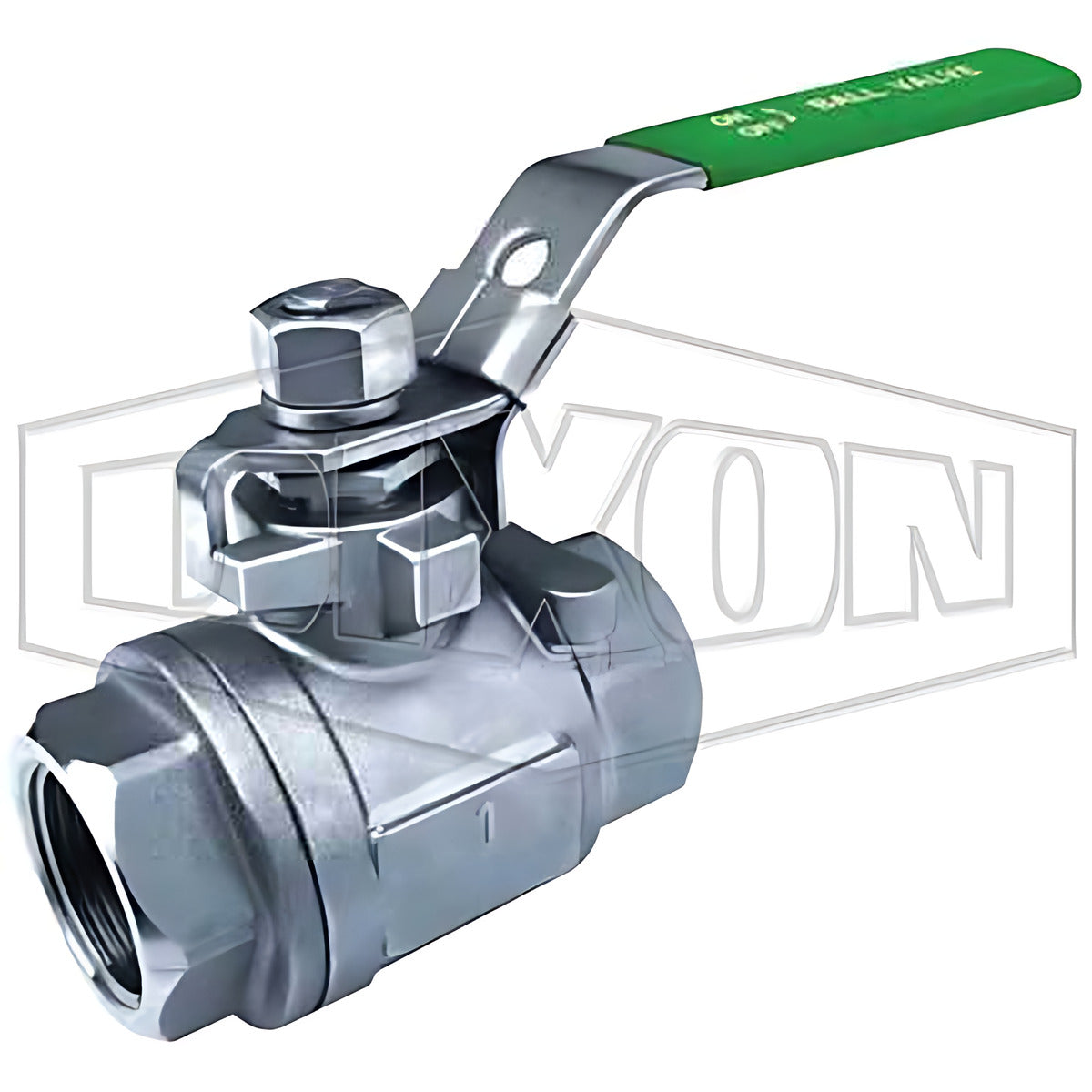

Dixon SS2P-12MM 1/2" (15 mm) Two-Piece Ball Valve 316 SS BSP F x F

This Dixon two-piece ball valve has a 316 stainless steel body (CF8M), a PTFE seat, a full-bore passage, a locking device and female x female BSP ends. Dixon lists it in 9 sizes, from 1/2" to 4" (manufacturer-stated).

Dixon rates the range at 1000 PSI CWP (69 bar) and describes it as AGA and Watermark certified (manufacturer-stated). It suits air, water, oil and gas, and fluids that are compatible with the body and trim.

Where this product is used

• Isolating air, water, oil and gas lines, and fluids that are compatible with the body and trim (manufacturer-stated).
• Pipework with male BSP nipples or threaded pipe ends on both sides of the valve.
• Lines that need a lockable valve, because the design includes a locking device (manufacturer-stated).

Features

• Two-piece, full-bore design with a locking device (manufacturer-stated)
• Body: 316 stainless steel (CF8M); seat: PTFE (manufacturer-stated)
• End connection: female x female BSP (manufacturer-stated)
• Working pressure: 1000 PSI CWP (69 bar) (manufacturer-stated)
• Approvals listed by Dixon: AGA and Watermark (manufacturer-stated)

Common specifications

Key specifications

Dixon's catalogue prints the metric size of the 1/2 in valve as 12 mm. The store size follows the part number (SS2P-12MM is listed as 15 mm); the inch size is the same in both.

Selecting the right option

Both ends of this valve are female BSP, so each side needs a male BSP thread. If one side is male, use the male x female version listed under Related products. Confirm the media and operating temperature with Dixon for hot or aggressive service; the catalogue gives the pressure rating but no temperature range for this valve.
