Dixon ALDC050E 1/2" (15 mm) Die Cast Aluminium Camlock Type E Adaptor x Hose Tail
Available

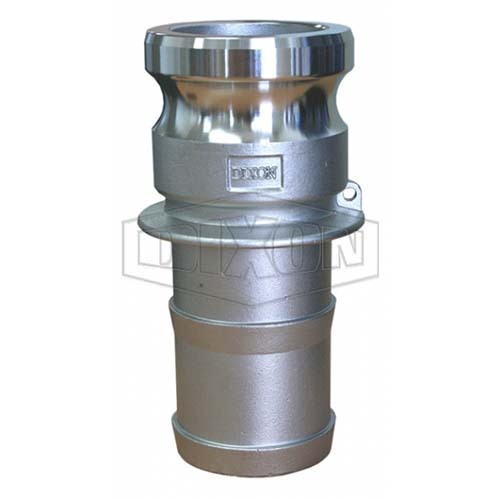

This Dixon camlock is an adaptor with a hose tail (hose shank) in die cast aluminium. In Dixon's cam and groove system it is the male half of the joint: it slides into a coupler and the coupler cam levers are pressed down to lock it (manufacturer-stated). The store lists 11 sizes, from 1/2" (15 mm) to 6" (150 mm).
Dixon lists the body as aluminium conforming to ASTM-A383 in Dixon's catalogue (manufacturer-stated). An adaptor carries no seal of its own: the standard seal for this material, nitrile Buna rubber, sits in the mating coupler, and Dixon bases the pressure rating on the seal of the mating part (manufacturer-stated).
Dixon rates the sizes in the store at 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).
Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated). Dixon also states that polypropylene and nyglass fittings should not be mixed with aluminium fittings (manufacturer-stated). Dixon states that couplings made by the die cast process must not be welded (manufacturer-stated).
Where this product is used
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks (manufacturer-stated).
- Fitting an adaptor to the end of a hose, so the hose can be connected to a coupler on a tank, a pump or another hose.
- Hose and pipework where the aluminium body and the nitrile Buna rubber seal suit the media; check both against your media before ordering.
Features
- Type E: adaptor x hose tail (manufacturer-stated)
- Body: die cast aluminium (manufacturer-stated)
- Seal fitted in the mating coupler: nitrile Buna rubber; pressure rating is based on the seal of the mating part (manufacturer-stated)
- Working pressure: 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated)
- Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Configuration | Type E, adaptor x hose tail |
| Body | Aluminium conforming to ASTM-A383 in Dixon's catalogue (manufacturer-stated) |
| Material standard | Catalogue: ASTM-A383; data sheet: ASTM B 26/B 26M grade 356.0-T6 (manufacturer-stated) |
| Connection | Hose tail |
| Seal in mating coupler | Nitrile Buna rubber (manufacturer-stated) |
| Working pressure | 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated) |
| Interchange | Commercial item description A-A-59326D (manufacturer-stated) |
| Sizes in store | 1/2" (15 mm), 3/4" (20 mm), 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (65 mm), 3" (75 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm) |
Key specifications
| Dixon part number | Size | Working pressure | Overall length (mm) | Across flats (mm) |
|---|---|---|---|---|
| ALDC050E | 1/2" (15 mm) | 150 PSI | ||
| ALDC075E | 3/4" (20 mm) | 250 PSI | 89 | 21 |
| ALDC100E | 1" (25 mm) | 250 PSI | 106 | 27 |
| ALDC125E | 1-1/4" (32 mm) | 250 PSI | 109.6 | 33.75 |
| ALDC150E | 1-1/2" (40 mm) | 250 PSI | 114.6 | 39.88 |
| ALDC200E | 2" (50 mm) | 250 PSI | 145.23 | 52.6 |
| ALDC250E | 2-1/2" (65 mm) | 150 PSI | 145.1 | 66.2 |
| ALDC300E | 3" (75 mm) | 125 PSI | ||
| ALDC400E | 4" (100 mm) | 100 PSI | 175 | 103.99 |
| ALDC500E | 5" (125 mm) | 75 PSI | ||
| ALDC600E | 6" (150 mm) | 75 PSI | 238 | 154.8 |
Pressure ratings are the figures Dixon prints for this material and size (manufacturer-stated). Lengths and flats come from Dixon's aluminium camlock data sheet, which lists 20 to 150 mm in its own size steps; blank cells mean the sheet does not list that size, and the values are quoted as printed there.
Selecting the right option
Type E has a hose tail, so pick the size to suit your hose and secure the hose with a clamp or band suited to it; the working pressure of the assembly also depends on the hose and the clamp. It connects to a Type B, C or D coupler of the same size. Do not weld die cast aluminium couplings (manufacturer-stated), and do not mix aluminium with polypropylene or nyglass fittings (manufacturer-stated). Dixon states that no standard exists for 15 mm (1/2") fittings and that this size generally does not interchange with other manufacturers (manufacturer-stated). Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
