Dixon Aluminium camlock, 1/2" (15mm)

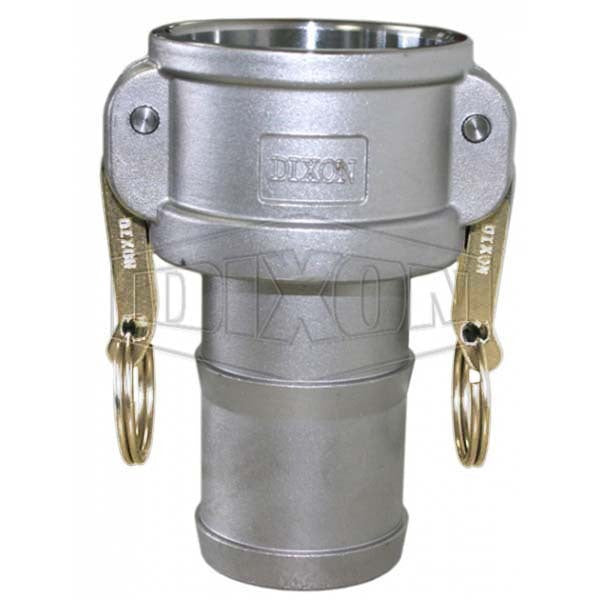

This Dixon camlock is a coupler with a hose tail (hose shank) in die cast aluminium. In Dixon's cam and groove system it is the female half of the joint, with the cam levers: an adaptor slides in and the levers are pressed down to lock it. It comes in 11 sizes, from 1/2" (15mm) to 6" (150mm).

The sizes are rated at 250 PSI for 20, 25, 32, 40 and 50mm; 150 PSI for 15 and 65mm; 125 PSI for 75mm; 100 PSI for 100mm; 75 PSI for 125 and 150mm. Pressure ratings are based on mating Dixon fittings at an ambient temperature of 21°C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions. Camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications. Polypropylene and nyglass fittings should not be mixed with aluminium fittings.

Where this product is used

• Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks
• Fitting a coupler to the end of a hose, so the hose can be connected to any adaptor of the same size
• Hose and pipework where the aluminium body and the nitrile Buna rubber seal suit the media, check both against your media before ordering

Features

• Type C: coupler x hose tail
• Body: die cast aluminium
• Fittings: brass levers, zinc plated steel pins and pull rings and nitrile Buna rubber seal
• Working pressure: 250 PSI for 20, 25, 32, 40 and 50mm, 150 PSI for 15 and 65mm, 125 PSI for 75mm, 100 PSI for 100mm, 75 PSI for 125 and 150mm
• Interchanges with products made to commercial item description A-A-59326D

Key specifications

Choosing the right option

Type C has a hose tail, so pick the size to suit your hose and secure the hose with a clamp or band suited to it; the working pressure of the assembly also depends on the hose and the clamp. It connects to a Type A, E or F adaptor of the same size. Do not weld die cast aluminium couplings, and do not mix aluminium with polypropylene or nyglass fittings. No standard exists for 15mm (1/2") fittings and that this size generally does not interchange with other manufacturers. Dust caps and dust plugs must not be used in any pressure application.

Related Dixon products: Dixon Aluminium Die Cast BSP Cam & Groove Type E Adaptor x Hose Shank, Cam & Groove Type F Adaptor x Male BSP Aluminium Die Cast and Dixon Stainless Steel BSP Cam & Groove Type C Coupler x Hose Shank.

Dust caps and plugs for the unused end: Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DC Dust Cap.
