Dixon Anfo Loader Spare Part Sub Assembly Reducing Bush 1/2" x 1/4" BSP
Available

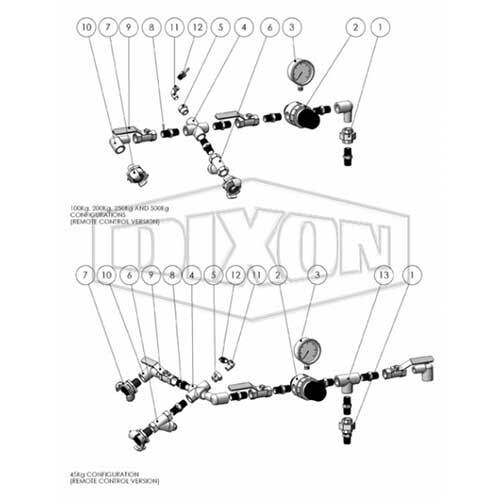

This Dixon reducing hex bush joins a 1/2" BSP thread to a 1/4" BSP thread and is made in 316 stainless steel. It is reference 7 in the manifold assembly parts list for the remote control version of the Minsup® ANFO loader. This is the stainless steel version, SS16B1508.
Where this product is used
- Stepping a 1/2" BSP port down to a 1/4" BSP fitting in a stainless steel manifold, as in the Minsup® remote control manifold
- Replacing a bush in an ANFO loader manifold from the numbered spare parts list
Features
- 316 stainless steel reducing hex bush, 1/2 x 1/4" BSP
- Reference 7 in the remote control manifold assembly parts list
- Section rating: 300 PSI working pressure
- Thread standard: ISO 7-1 pipe threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | Reducing hex bush, 1/2" x 1/4" BSP |
| Material | 316 stainless steel |
| Thread size | 1/2 x 1/4" BSP |
| Working pressure | 300 PSI (stainless steel BSP fittings range) |
| Thread standard | ISO 7-1 pipe threads |
| Used in | Minsup® manifold assembly, remote control version (reference 7) |
Choosing the right option
The galvanised malleable iron version of this bush, FMG-BUS-15-8, is a different material and is not a match for a stainless steel manifold. Check that the mating threads on your loader are BSP before ordering.
Related Dixon ANFO loader parts: Dixon Anfo Loader Spare Part Sub Assembly Cross BSP Stainless Steel, Dixon Anfo Loader 1/2" BSP Replacement Air Regulator 0-1000 kPa and Dixon Anfo Loader 1/4" BSP Replacement Pressure Gauge 0 - 1000 PSI.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Anfo Loader Spare Part Sub Assembly Reducing Bush 1/2" x 1/4" BSP
SKU: A0157441 | Model: SS16B1508
Dixon SS16B1508: 1/2" x 1/4" BSP reducing bush.
