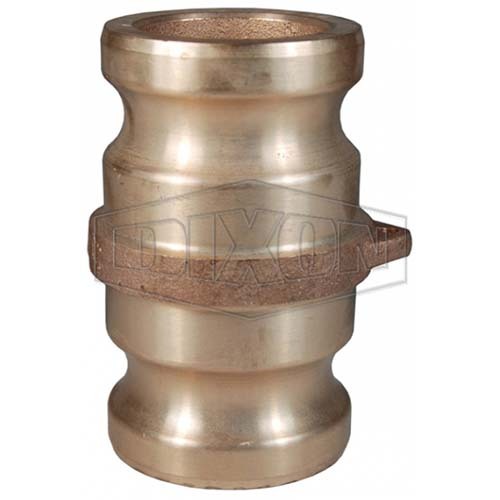

Dixon 200-AA-BR 2" (50 mm) Camlock Spool Adaptor Type AA

This Dixon Type AA spool adaptor is an adaptor x adaptor: both ends are the male half of the cam and groove joint, so it joins two couplers (manufacturer-stated). The store lists the 50 mm (2") and 75 mm (3") sizes.

The store lists these two parts as brass, but Dixon's Australian catalogue prints 200-AA-BR and 300-AA-BR in its bronze column while Dixon's US brochure lists them as brass. The material is therefore not stated here; confirm it with us if it matters for your media.

Dixon rates the sizes in the store at 250 PSI for 50 mm; 125 PSI for 75 mm (manufacturer-stated). A spool adaptor carries no seal of its own: Dixon bases the pressure rating on the seal of the mating coupler (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).

Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated).

Where this product is used

• Joining two couplers of the same size, or of two different sizes where the part number has two sizes, in a quick-connect hose or pipe line.
• Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes (manufacturer-stated).
• Lines where both ends need to connect to couplers, for example between two hose runs that each end in a Type C or Type D coupler.

Features

• Type AA spool adaptor: adaptor x adaptor, a male cam and groove end on both sides (manufacturer-stated)
• Working pressure: 250 PSI for 50 mm; 125 PSI for 75 mm (manufacturer-stated)
• Pressure rating is based on the seal of the mating coupler (manufacturer-stated)
• Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)

Common specifications

Key specifications

Pressure ratings are the figures Dixon prints for 200-AA-BR and 300-AA-BR (manufacturer-stated).

Selecting the right option

Check that both mating parts are couplers (Type B, C or D) of the matching size, and that their seal suits your media. Dixon's Australian catalogue and its US brochure disagree on the material of these two part numbers, so confirm the material with us before using them with media that attack brass or bronze. Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).

Related products

Related Dixon products: Dixon Cam & Groove Spool Adaptor Type AA Aluminium, Dixon Cam & Groove Spool Adaptor Type AA Stainless Steel and Dixon Aluminium Die Cast BSP Cam & Groove Type C Coupler x Hose Shank.
