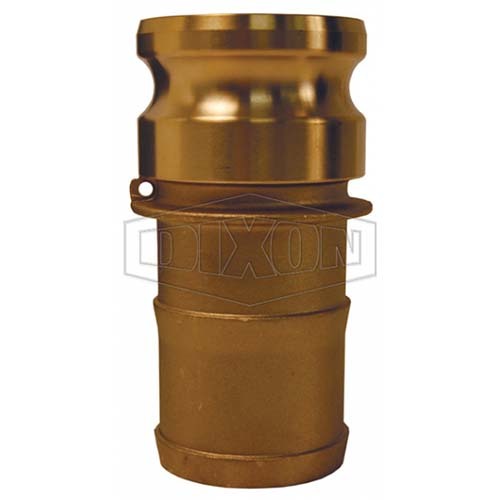

Dixon Brass camlock, 3/4" (20mm)

This Dixon camlock is an adaptor with a hose tail (hose shank) in brass. In Dixon's cam and groove system it is the male half of the joint: it slides into a coupler and the coupler cam levers are pressed down to lock it. It comes in 4 sizes, from 3/4" (20mm) to 2-1/2" (65mm).

The body is brass grade UNS C38500 to ASTM-B455. An adaptor carries no seal of its own: the standard seal for this material, nitrile Buna rubber, sits in the mating coupler, and the pressure rating is based on the seal of the mating part. The sizes are rated at 250 PSI for 20, 25 and 32mm; 150 PSI for 65mm. Pressure ratings are based on mating Dixon fittings at an ambient temperature of 21°C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions.

Where this product is used

• Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks
• Fitting an adaptor to the end of a hose, so the hose can be connected to a coupler on a tank, a pump or another hose
• Hose and pipework where the brass body and the nitrile Buna rubber seal suit the media, check both against your media before ordering

Features

• Type E: adaptor x hose tail
• Body: brass, grade UNS C38500 to ASTM-B455
• Seal fitted in the mating coupler: nitrile Buna rubber, pressure rating is based on the seal of the mating part
• Working pressure: 250 PSI for 20, 25 and 32mm, 150 PSI for 65mm
• Interchanges with products made to commercial item description A-A-59326D

Key specifications

Choosing the right option

Type E has a hose tail, so pick the size to suit your hose and secure the hose with a clamp or band suited to it; the working pressure of the assembly also depends on the hose and the clamp. It connects to a Type B, C or D coupler of the same size. Check your media against the brass body and the nitrile Buna rubber seal before ordering. Dust caps and dust plugs must not be used in any pressure application.

Related Dixon products: Dixon Brass Standard BSP Cam & Groove Type C Coupler x Hose Shank, Dixon Aluminium Die Cast BSP Cam & Groove Type E Adaptor x Hose Shank and Dixon Stainless Steel BSP Cam & Groove Type E Adaptor x Hose Shank.

Dust caps and plugs for the unused end: Dixon Brass Standard BSP Cam & Groove Type DC Dust Cap.
