Dixon B5 27.0-30.2 mm hose OD Clamp 2 Bolt Type, 2 Gripping Fingers Zinc Plated Iron
Available

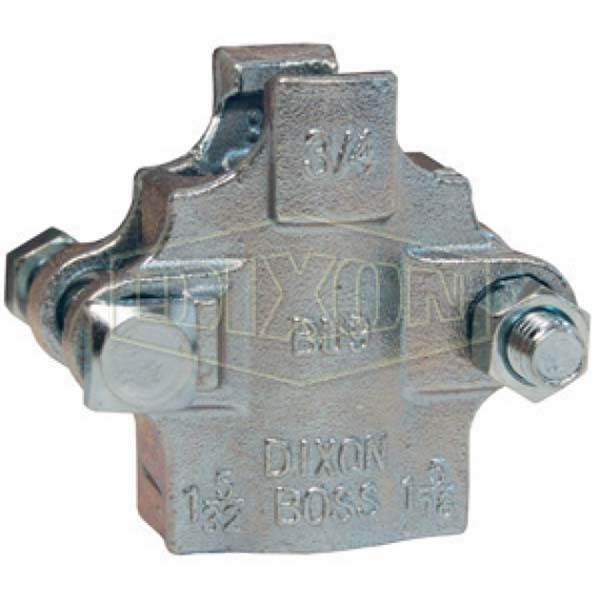

This Dixon 2-bolt clamp has a zinc plated iron body with two gripping fingers. It is part of the Boss clamp range and is used to clamp hose onto Boss stems and hose menders (manufacturer-stated). Two sizes are listed: B5 for hose with an outside diameter of 27.0 to 30.2 mm, and B9 for 33.3 to 38.1 mm.
Dixon recommends Boss clamps for steam service up to 230 degrees C and gives a bolt torque of 12 ft-lb (16.3 Nm) for B5 and 21 ft-lb (28.5 Nm) for B9. The bolts are not standard bolts: they are designed to bend as they are tightened, so each clamp is for single use only (manufacturer-stated).
Where this product is used
- Clamping hose onto Boss stems, spuds and hose menders, including steam hose assemblies (manufacturer-stated).
- Hose assemblies where the hose outside diameter is between 27.0 mm and 38.1 mm.
Features
- Two-bolt clamp with two gripping fingers, zinc plated iron (manufacturer-stated)
- Recommended for steam service up to 230 degrees C (manufacturer-stated)
- Bolt torque: 12 ft-lb (16.3 Nm) for B5 and 21 ft-lb (28.5 Nm) for B9 (manufacturer-stated)
- Single use: the bolts are designed to bend as they are tightened (manufacturer-stated)
- Hose outside diameter: 27.0 to 30.2 mm (B5) and 33.3 to 38.1 mm (B9) (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Zinc plated iron |
| Design | 2-bolt clamp, 2 gripping fingers |
| Steam service | Recommended up to 230 degrees C |
| Use | Single use only |
Key specifications
| Dixon part number | Hose OD (mm) | Nominal hose ID | Bolt torque |
|---|---|---|---|
| B5 | 27.0-30.2 | 1/2" | 12 ft-lb (16.3 Nm) |
| B9 | 33.3-38.1 | 3/4" | 21 ft-lb (28.5 Nm) |
Hose OD ranges, nominal hose IDs and torques are the figures in Dixon's Boss catalogue.
Selecting the right option
Choose the clamp by the measured outside diameter of the hose over the stem, not by the nominal hose size alone. Dixon's method is to secure the assembly in a vice and tighten the two bolts alternately, a full turn at a time, until both reach the torque in the table (manufacturer-stated). Torque values assume dry bolts, so do not lubricate the nuts and bolts. Retighten periodically, because rubber hose cold flows (manufacturer-stated).
Related products
Related Dixon products: Dixon Clamp 2 Bolt Type, 2 Gripping Fingers Investment Cast Carbon Steel, Dixon Hose Mender and Dixon Wing Nut Plated Iron.
