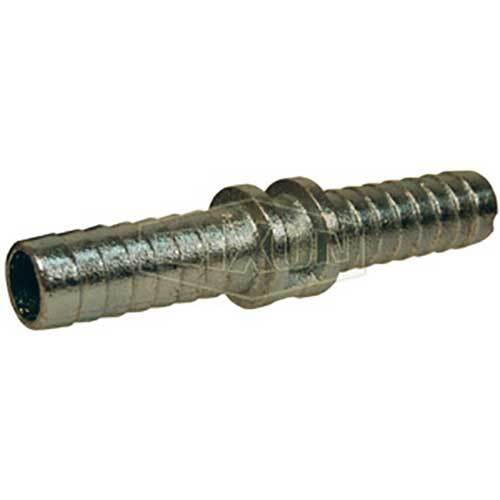

Dixon M1 1/2" Boss Hose Mender, Plated Steel
Available
This Dixon hose mender is the Boss hose joiner: a collar that joins two lengths of hose of the same inside diameter, or repairs a hose by joining the two good ends. It is made for use with Boss clamps (manufacturer-stated). Dixon lists eight sizes, from M1 for 1/2" to M36 for 3".
M1 is plated steel and M6 to M36 are plated malleable iron (manufacturer-stated). The collar is fitted with a Boss clamp over the hose at each end, and Dixon lists the clamps separately.
Where this product is used
- Repairing a cut or damaged hose by joining the two good ends.
- Joining two hose lengths of the same inside diameter into one assembly.
- Boss hose assemblies where Boss clamps are already specified (manufacturer-stated).
Features
- Boss hose mender for use with Boss clamps (manufacturer-stated)
- M1 is plated steel; M6 to M36 are plated malleable iron (manufacturer-stated)
- Eight sizes from 1/2" to 3" (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | M1 plated steel; M6 to M36 plated malleable iron |
| Use with | Boss clamps |
| Sizes | 1/2" to 3" |
Key specifications
| Dixon part number | Hose ID | Boss catalogue size (mm) | Material |
|---|---|---|---|
| M1 | 1/2" | 15 | Plated steel |
| M6 | 3/4" | 20 | Plated malleable iron |
| M11 | 1" | 25 | Plated malleable iron |
| M16 | 1-1/4" | 32 | Plated malleable iron |
| M21 | 1-1/2" | 40 | Plated malleable iron |
| M26 | 2" | 50 | Plated malleable iron |
| M31 | 2-1/2" | 65 | Plated malleable iron |
| M36 | 3" | 75 | Plated malleable iron |
Millimetre sizes are from Dixon's Boss catalogue and match the store size options. Dixon's main product catalogue prints M1 as 12 mm and M36 as 80 mm, so use the inch size to confirm the fit.
Selecting the right option
Match the mender to the hose inside diameter. Fit one Boss clamp over the hose at each end of the mender; the Boss 2-bolt clamp pages linked below give the hose outside diameter ranges and bolt torques. Dixon states that Boss clamps are for single use and need periodic retightening (manufacturer-stated).
Related products
Related Dixon products: Dixon Hose Mender Zinc Plated Steel, Dixon Clamp 2 Bolt Type, 2 Gripping Fingers Zinc Plated Iron and Dixon Clamp 2 Bolt Type, 2 Gripping Fingers Investment Cast Carbon Steel.
