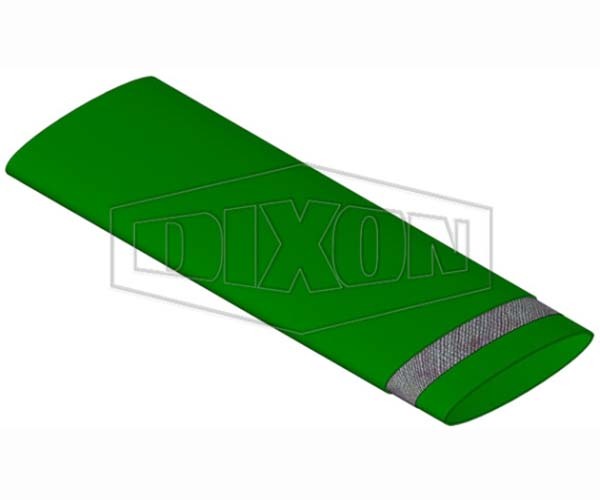

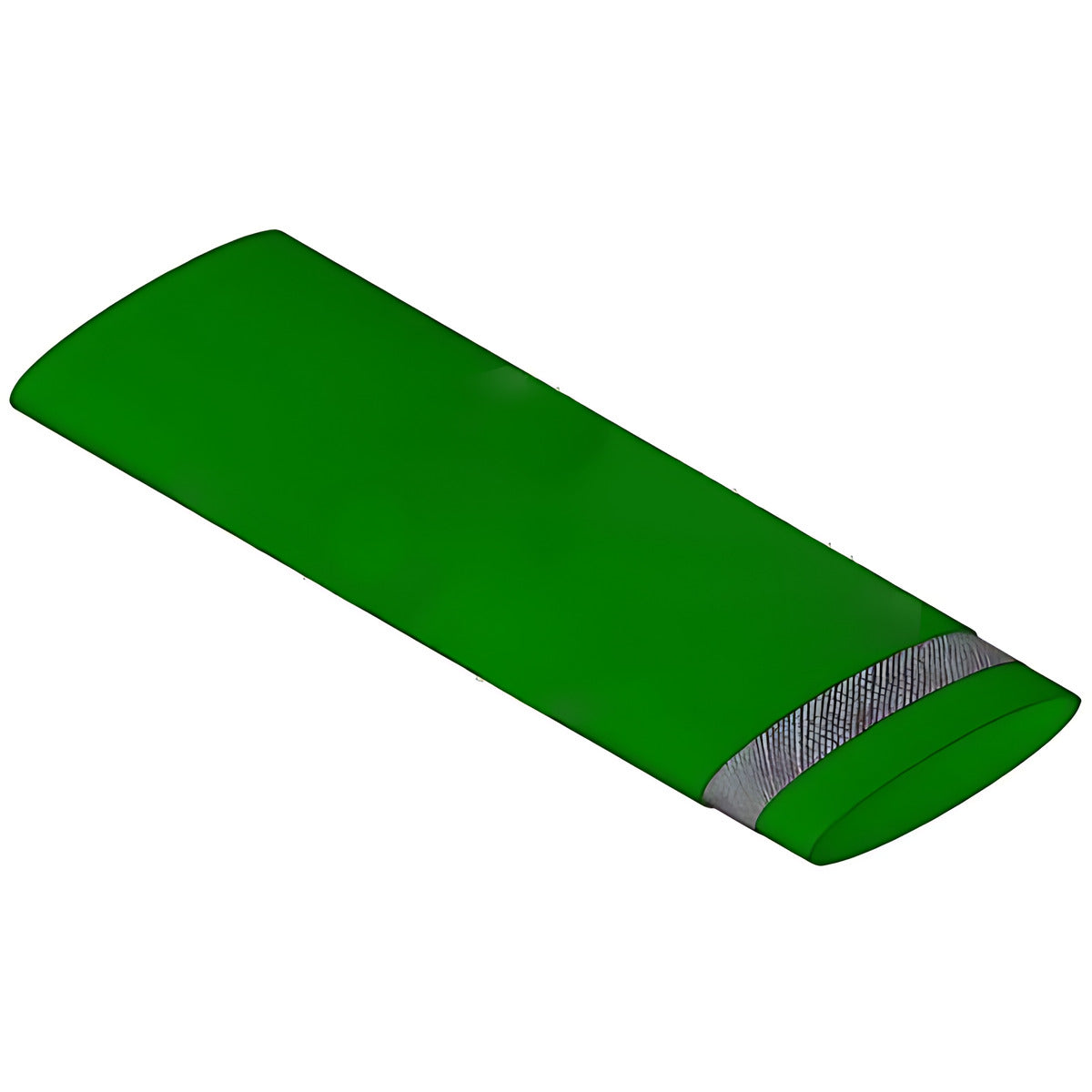

Dixon Extra Heavy Duty Green Mining Layflat Hose
Out of stock
This Dixon layflat hose is an 8" (204mm ID) green PVC hose with textile reinforcement, for water service. It is abrasion resistant and UV stabilised, and it is supplied as a 10 m cut length. It is rated at 145 PSI (1.0 MPa) working pressure and 430 PSI burst, for -20°C to 54°C.
The hose has a 204mm ID and a 214mm OD.
Where this product is used
- Large-bore water transfer in mining applications
- Water discharge lines where an abrasion resistant, UV stabilised hose is wanted
Features
- Green PVC tube and cover with textile reinforcement
- Abrasion resistant and UV stabilised
- Working pressure 145 PSI (1.0 MPa), burst pressure 430 PSI
- Temperature range -20°C to 54°C
- Hose ID 204mm (8"), hose OD 214mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Tube | PVC, green |
| Cover | PVC, green |
| Reinforcement | Textile |
| Hose ID | 204mm (8") |
| Hose OD | 214mm |
| Working pressure | 145 PSI (1.0 MPa) |
| Burst pressure | 430 PSI |
| Temperature range | -20°C to 54°C |
| Service | Water |
| Pack | 10 m cut length |
Choosing the right option
Layflat is a discharge hose: it is not for suction. Check the 145 PSI working pressure against your pump, and the -20°C to 54°C temperature range against your site.
Related Dixon layflat hoses: Dixon Heavy Duty Red Layflat Hose - Sunny Red, Dixon Medium Duty Blue Layflat Hose - Sunny Blue and Dixon Rubber Layflat Hose.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Extra Heavy Duty Green Mining Layflat Hose: 10 m
SKU: A0070601CUT | Model: LF200GN
Dixon LF200GN: 204mm x 10 m extra heavy duty green mining layflat hose, 145 PSI (1.0 MPa). Burst pressure: 430 PSI, Hose ID: 204mm (8").
