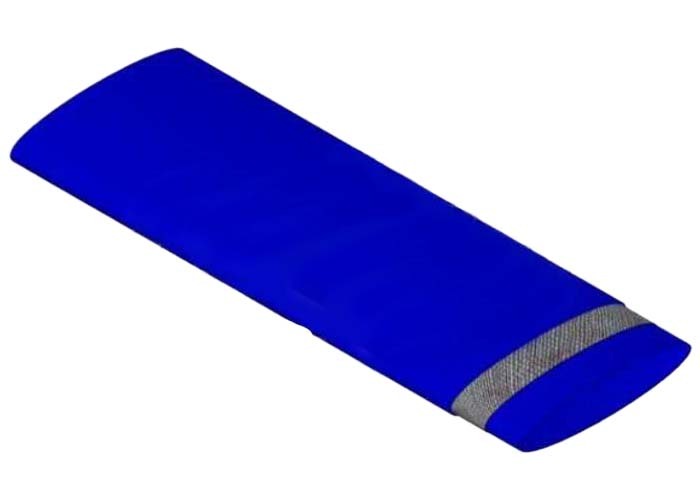

Dixon Medium-duty blue layflat hose, 26mm / 10 m

This Dixon layflat hose has a blue PVC tube and cover with polyester yarn reinforcement. It is an extruded hose that is ozone, weather and abrasion resistant, and it is the medium-duty layflat in its LFA range. It is rated from 102 PSI (7 bar) working pressure at 1" to 29 PSI (2 bar) at 8", for -10°C to 60°C.

It comes in 1" to 8" hose and a 40mm size, as 10 m cut lengths and 100 m coils.

Where this product is used

• Transfer of water and other non-corrosive liquids on building sites
• Mining applications, and general civil, construction, irrigation and drainage operations

Features

• Blue PVC tube and cover with polyester yarn reinforcement
• Extruded, ozone, weather and abrasion resistant
• Working pressure 102 PSI (7 bar) at 1", falling to 29 PSI (2 bar) at 8"
• Temperature range -10°C to 60°C
• Cut lengths available in multiples of 10 m

Key specifications

Choosing the right option

Layflat is a discharge hose: it is not for suction. Working pressure falls steeply with size, so read the row for your size and check it against your pump. Cut lengths are available in multiples of 10 m and that charges apply.
