Dixon LFAR040100 40 mm x 100 m Heavy Duty Red Layflat Hose - Sunny Red
Available

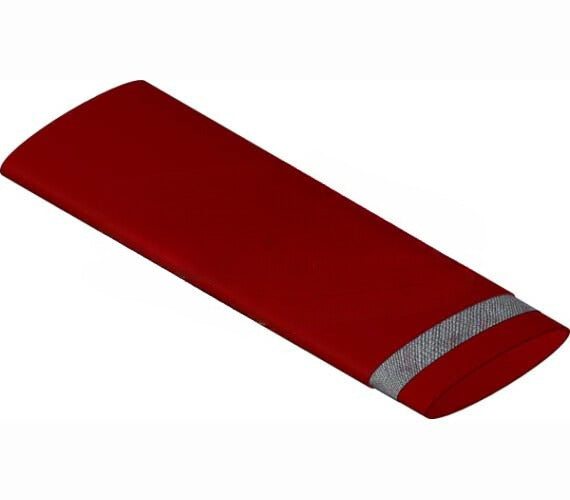

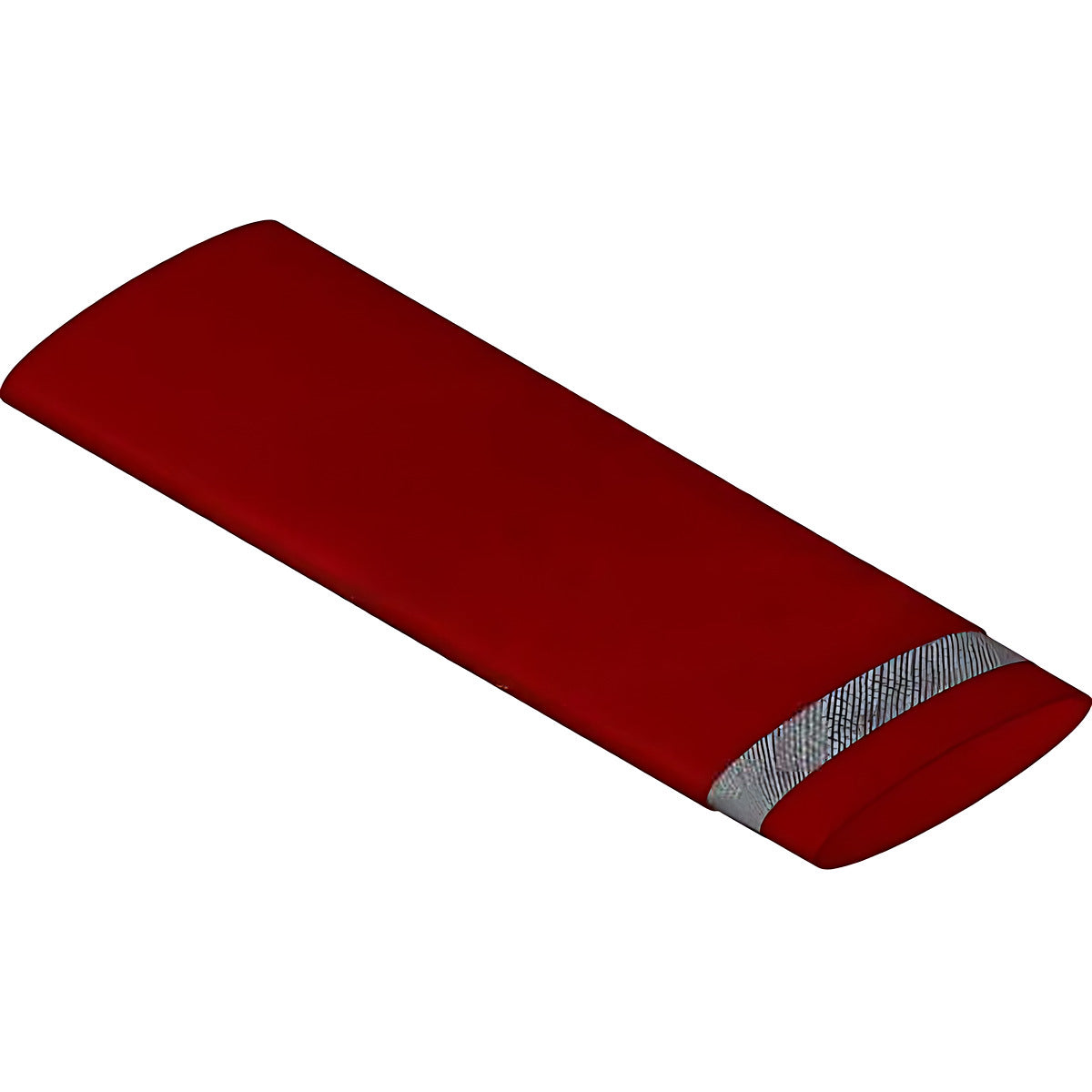

This Dixon layflat hose has a red PVC tube and cover with polyester yarn reinforcement (manufacturer-stated). It is an extruded hose that is ozone, weather and abrasion resistant, and Dixon positions it as the heavy-duty layflat in its LFA range.
Dixon's mining and industrial hose catalogues rate it from 150 PSI (10 bar) working pressure at 2 in to 73 PSI (5 bar) at 8 in, for -10°C to 60°C (manufacturer-stated). This listing covers 2 in to 8 in hose and a 40 mm size, as 10 m cut lengths and 100 m coils.
Where this product is used
- Transfer of water and other non-corrosive liquids on building sites (manufacturer-stated).
- Mining applications, and general civil, construction, irrigation and drainage operations (manufacturer-stated).
Features
- Red PVC tube and cover with polyester yarn reinforcement (manufacturer-stated)
- Extruded; ozone, weather and abrasion resistant (manufacturer-stated)
- Working pressure 150 PSI (10 bar) at 2 and 2-1/2 in, falling to 73 PSI (5 bar) at 8 in (manufacturer-stated)
- Temperature range -10°C to 60°C (manufacturer-stated)
- Cut lengths available in multiples of 10 m (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | PVC, red |
| Cover | PVC, red |
| Reinforcement | Polyester yarn |
| Working pressure | 150 PSI (10 bar) at 2 and 2-1/2 in; 125 PSI (9 bar) at 3 and 4 in; 102 PSI (7 bar) at 6 in; 73 PSI (5 bar) at 8 in |
| Burst pressure | 450 PSI (30 bar) at 2 and 2-1/2 in; 375 PSI (26 bar) at 3 and 4 in; 306 PSI (21 bar) at 6 in; 219 PSI (15 bar) at 8 in |
| Temperature range | -10°C to 60°C |
| Construction | Extruded |
| Sizes | 2, 2-1/2, 3, 4, 6 and 8 in, plus a 40 mm size |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI (bar) | Burst PSI (bar) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| LFAR040 | 10 m cut length | - | - | - | - | - |
| LFAR040100 | 100 m coil | - | - | - | - | - |
| LFAR050 | 10 m cut length | 50.8 (2 in) | 54.8 | 150 (10) | 450 (30) | 0.42 |
| LFAR050100 | 100 m coil | 50.8 (2 in) | 54.8 | 150 (10) | 450 (30) | 0.42 |
| LFAR065 | 10 m cut length | 63.5 (2-1/2 in) | 67.5 | 150 (10) | 450 (30) | 0.55 |
| LFAR065100 | 100 m coil | 63.5 (2-1/2 in) | 67.5 | 150 (10) | 450 (30) | 0.55 |
| LFAR080 | 10 m cut length | 76.2 (3 in) | 80.2 | 125 (9) | 375 (26) | 0.66 |
| LFAR080100 | 100 m coil | 76.2 (3 in) | 80.2 | 125 (9) | 375 (26) | 0.66 |
| LFAR100 | 10 m cut length | 101.6 (4 in) | 106.6 | 125 (9) | 375 (26) | 1.00 |
| LFAR100100 | 100 m coil | 101.6 (4 in) | 106.6 | 125 (9) | 375 (26) | 1.00 |
| LFAR150 | 10 m cut length | 152.4 (6 in) | 157.8 | 102 (7) | 306 (21) | 1.65 |
| LFAR150100 | 100 m coil | 152.4 (6 in) | 157.8 | 102 (7) | 306 (21) | 1.65 |
| LFAR200 | 10 m cut length | 203.2 (8 in) | 210.0 | 73 (5) | 219 (15) | 2.20 |
| LFAR200100 | 100 m coil | 203.2 (8 in) | 210.0 | 73 (5) | 219 (15) | 2.20 |
Figures are from Dixon's mining and industrial hose catalogues, which show the hose ID in millimetres with the inch size. Headings use inch sizes because the store size options (52.5, 66, 78.5, 104, 155 and 208 mm) do not match the catalogue IDs (50.8, 63.5, 76.2, 101.6, 152.4 and 203.2 mm). The 40 mm part numbers LFAR040 and LFAR040100 have no catalogue row, so no ratings are shown for them; Dixon lists a 38.1 mm hose as LFAR038.
Selecting the right option
Layflat is a discharge hose: it is not for suction. Match the working pressure for your size to your pump, because the rating falls as the hose gets larger. Dixon's mining catalogue says cut lengths are available in multiples of 10 m and that charges apply (manufacturer-stated). Check the 40 mm part numbers with Dixon if the ratings matter, because they are not in the catalogue.
