Dixon ARM016020 16 mm x 20 m Metalflex PVC Suction Hose Clear Food Grade
Available

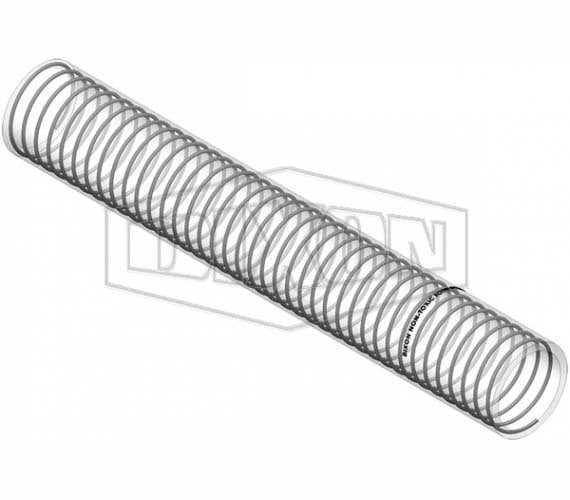

This Dixon Metalflex hose is a lightweight suction and discharge hose with a transparent, non-toxic PVC tube and cover and an embedded steel helix (manufacturer-stated). It is highly flexible, with good resistance to kinking, abrasion and crushing, and it is UV stabilised and listed as food grade FDA approved.
Dixon's industrial hose catalogue rates it for -15°C to 60°C, with working pressure falling from 87 PSI (6 bar) at 15.9 mm ID to 29 PSI (2 bar) at 101.6 mm, and vacuum of 0.9 bar up to 45 mm ID (manufacturer-stated). This listing covers 16 mm to 152 mm ID in 20 m coils.
Where this product is used
- Suction and discharge with vacuum pumps and agricultural machinery (manufacturer-stated).
- Irrigation systems and chemical plants (manufacturer-stated).
- Transferring foodstuffs and potable water (manufacturer-stated).
Features
- Transparent non-toxic PVC tube and cover with embedded steel helix (manufacturer-stated)
- UV stabilised, abrasion resistant, highly flexible (manufacturer-stated)
- Listed as non-toxic, food grade FDA approved (manufacturer-stated)
- Temperature range -15°C to 60°C (manufacturer-stated)
- Working pressure 87 PSI (6 bar) at 15.9 mm ID, falling to 29 PSI (2 bar) at 101.6 mm ID (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | PVC, non-toxic, smooth, transparent |
| Cover | PVC, non-toxic, transparent |
| Reinforcement | Embedded steel helix |
| Temperature range | -15°C to 60°C |
| Working pressure | 87 PSI (6 bar) at 15.9 mm ID, falling to 29 PSI (2 bar) at 101.6 mm ID |
| Vacuum | 0.9 bar at small sizes, falling to 0.5 bar at 152.4 mm ID |
| Food contact listing | Non-toxic, food grade FDA approved (manufacturer-stated) |
| Sizes | 16, 20, 25, 35, 38, 45, 50, 63, 76, 102 and 152 mm hose ID |
| Pack | 20 m coil |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI (bar) | Burst PSI (bar) | Vacuum (bar) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| ARM016020 | 20 m coil | 15.9 | 22.2 | 87 (6) | 261 (18) | 0.9 | 35 | 0.23 |
| ARM020020 | 20 m coil | 19.1 | 26.3 | 73 (5) | 219 (15) | 0.9 | 50 | 0.34 |
| ARM025020 | 20 m coil | 25.4 | 33.2 | 73 (5) | 219 (15) | 0.9 | 60 | 0.51 |
| ARM035020 | 20 m coil | 35.0 | 43.6 | 57 (4) | 171 (12) | 0.9 | 80 | 0.73 |
| ARM038020 | 20 m coil | 38.1 | 47.0 | 57 (4) | 171 (12) | 0.9 | 90 | 0.80 |
| ARM045020 | 20 m coil | 45.0 | 54.4 | 43 (3) | 129 (9) | 0.9 | 105 | 1.10 |
| ARM050020 | 20 m coil | 50.8 | 60.2 | 43 (3) | 129 (9) | 0.8 | 125 | 1.20 |
| ARM063020 | 20 m coil | 63.5 | 75.8 | 43 (3) | 129 (9) | 0.7 | 150 | 1.95 |
| ARM080020 | 20 m coil | 76.2 | 89.3 | 29 (2) | 87 (6) | 0.7 | 220 | 2.70 |
| ARM100020 | 20 m coil | 101.6 | 116.0 | 29 (2) | 87 (6) | 0.6 | 300 | 3.40 |
| ARM150020 | 20 m coil | 152.4 | 169.0 | - | - | 0.5 | 460 | 6.35 |
Figures are from Dixon's industrial hose catalogue. The catalogue ID is shown in millimetres; the store size options round it (for example 76 mm for 76.2 mm). Pressure figures for the 152.4 mm hose are not shown because Dixon's documents disagree on them. Dixon prints the 20 m length as the 020 at the end of each part number.
Selecting the right option
Working pressure falls steeply with size, and the vacuum rating also drops above 45 mm ID, so read the row for your size. Dixon lists the hose to 60°C, so it is not listed for hot product. Confirm the pressure rating for your size with Dixon if you are using it for positive pressure.
