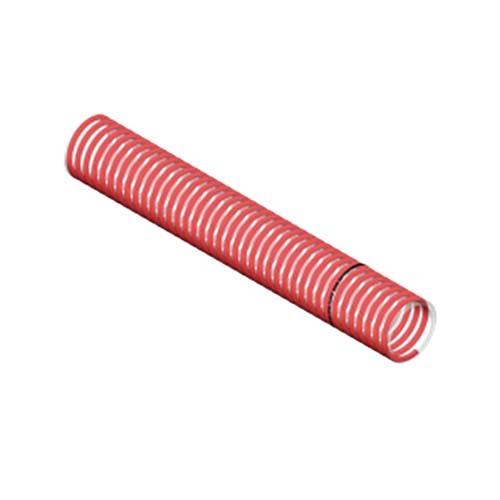

Dixon 32mm x 20m Wine & Beverage Heavy Duty Suction & Delivery Hose Red
Regular price
$227.34
Sale price
$227.34
Regular price
Inc. GST
Available
Length: 20 m. Rated to 1.0 Bar, so you can match it to line pressure with confidence. Service temperature -20°C to 60°C, suitable for the conditions on real industrial sites. Construction. Tube: Clear non toxic PVC. Reinforcing: Rigid red PVC helix. Available Lengths. Cut Length: 5 m.
Key Specifications
| Length | 20 m |
| ID | 25.4 mm / 31.8 mm / 38.1 mm / 50.8 mm / 101.6 mm |
| OD | 31.5 mm / 39.1 mm / 46.2 mm / 60.7 mm / 115.1 mm |
| Hose ID (mm) | 25 / 32 / 38 / 51 / 102 |
| Working Pressure | 90 PSI (6.0 bar) / 80 PSI (5.5 bar) / 75 PSI (5.0 bar) / 50 PSI (3.5 bar) |
| Burst Pressure | 260 PSI (18.0 bar) / 240 PSI (16.5 bar) / 220 PSI (15.0 bar) / 150 PSI (10.5 bar) |
| Vacuum Rating | 1.0 Bar |
| Temperature Range | -20°C to 60°C |
| Material | PVC |
| Color | Red |
| Intended Service | Water, Food & Alcohol |
| Unit weight | 0.39 kg/m / 0.51 kg/m / 0.65 kg/m / 1.1 kg/m / 3 kg/m |
| Bend Radius | 75 mm / 105 mm / 155 mm / 205 mm / 380 mm |
| Hose Outside Diameter (mm) | 34.4 / 41.6 / 47.9 / 62 / 117.4 |
| Weight kg/m | 0.45 / 0.68 / 0.78 / 1.15 / 3.25 |
| Application | Water, Food & Alcohol |
| Hose Length | 20 m |
| Vacuum Rating M/h20 | 6 |
Where This Is Used
- Heavy-duty suction and delivery hose predominately for wine, beer and spirits up to 15% alcohol content.
- Also suitable for other liquids including water, soda, juice and syrup handling.
- Can be used to transfer dry foodstuffs.
- Special hose for heavy-duty wine, beer and spirits suction and delivery.
- Wine and spirits up to 15% alcohol.
Features
- UV stabilised.
- Abrasion resistant.
- Non-toxic.
- Food grade FDA approved.
- Extruded.
- Food grade FDA.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
25
Model Number: AUS025FB020
-
32
Model Number: AUS032FB020
-
38
Model Number: AUS040FB020
-
51
Model Number: AUS050FB020
-
102
Model Number: AUS100FB020
