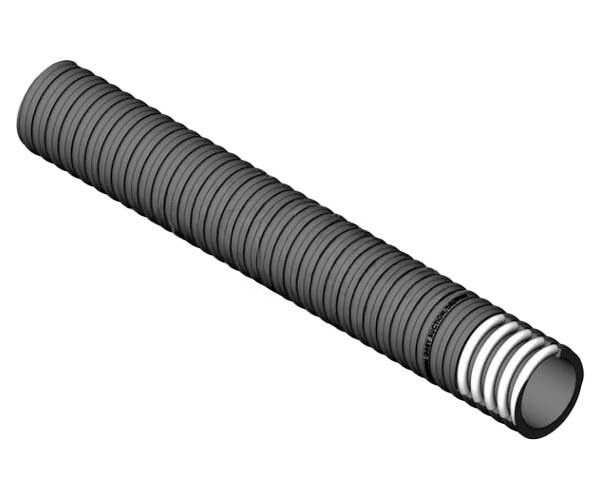

Dixon 25.5mm x 20m Heavy Duty Premium Grey PVC Suction Hose AUS025G020
Regular price
$136.55
Sale price
$136.55
Regular price
Inc. GST
Available
Rated to 1.0 bar, so you can match it to line pressure with confidence. Service temperature -20°C to 60°C, suitable for the conditions on real industrial sites. Construction. Tube: Grey PVC. Reinforcing: White rigid PVC helix. Available Lengths. Coil Length: 20 & 30 m. Cut Length: 5 m.
Key Specifications
| Length | 20 m coil |
| ID | 25.4 mm / 38.1 mm / 50.8 mm / 63.5 mm / 101.6 mm / 152.4 mm |
| OD | 31.5 mm / 46.2 mm / 60.7 mm / 74.4 mm / 115.1 mm / 169.4 mm |
| Hose ID | 25.5 mm / 38.5 mm / 51.1 mm / 64.4 mm / 102.2 mm / 152 mm |
| Working Pressure | 90 PSI (6.0 bar) / 75 PSI (5.0 bar) / 50 PSI (3.5 bar) / 30 PSI (2.0 bar) |
| Burst Pressure | 260 PSI (18.0 bar) / 220 PSI (15.0 bar) / 150 PSI (10.5 bar) / 90 PSI (6.0 bar) |
| Vacuum Rating | 1.0 bar |
| Temperature Range | -20°C to 60°C |
| Material | PVC |
| Color | Grey |
| Intended Service | Water & Slurry |
| Unit weight | 0.39 kg/m / 0.65 kg/m / 1.1 kg / 1.5 kg / 3 kg/m / 5.51 kg/m |
| Bend Radius | 75 mm / 155 mm / 205 mm / 255 mm / 380 mm / 635 mm |
| Hose Outside Diameter (mm) | 33 / 47 / 60.1 / 74.4 / 115 / 170 |
| Weight kg/m | 0.43 / 0.65 / 0.95 / 1.3 / 3.3 / 6.2 |
| Application | Water & Slurry |
| Hose Length | 20 m |
Where This Is Used
- Water and light slurry suction and delivery hose used in construction, mining, agricultural, irrigation, and municipal applications.
- Suction and Delivery of water, mud, slurries, some chemicals, grains, sand and gravel.
- Used in Agricultural and Industrial applications on tank trucks, ships, silos and general manufacturing.
Features
- UV stabilised.
- Abrasion resistant.
- Non-toxic.
- Food grade FDA approved.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
25.5 mm
Model Number: AUS025G020
-
38.5 mm
Model Number: AUS038G020
-
51.1 mm
Model Number: AUS050G020
-
64.4 mm
Model Number: AUS065G020
-
102.2 mm
Model Number: AUS100G020
-
152 mm
Model Number: AUS150G020
