Dixon Rubber discharge hose, 76 / 20 m

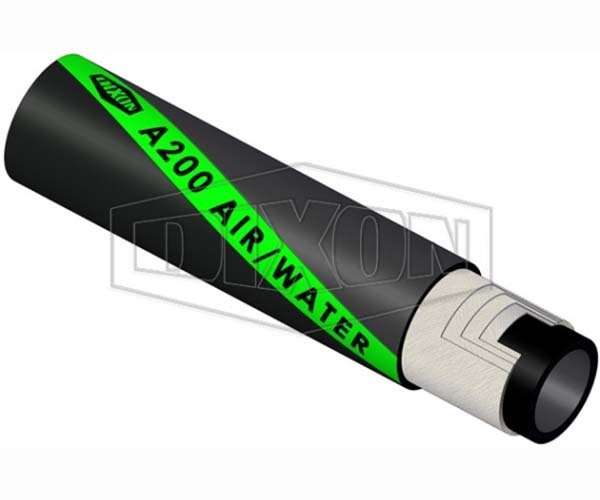

This Dixon rubber hose is a discharge hose for water and non-corrosive liquids. It has an SBR tube, an SBR/EPDM blend cover with a Mylar layline and embossed tape line, and high tensile synthetic textile cords with a single wire helix, and it is mandrel built. It comes in the 63.5 and 76mm sizes in 20 m and 60 m lengths.

Every size of the A200 range is rated at 150 PSI (10 bar) working pressure and 435 PSI (30 bar) burst, for temperatures from -30 to 80°C.

Where this product is used

• Water and non-corrosive liquid discharge in construction, mining and general dewatering
• Pump discharge lines where a mandrel built textile and wire helix hose is wanted

Features

• Tube: SBR, black, cover: SBR/EPDM blend, smooth, black
• Reinforcement: high tensile synthetic textile cords with a single wire helix
• Working pressure 150 PSI (10 bar), burst 435 PSI (30 bar)
• Temperature range -30 to 80°C
• Ozone, weather and abrasion resistant, mandrel built

Key specifications

Choosing the right option

Use this hose on the discharge side of a pump.
