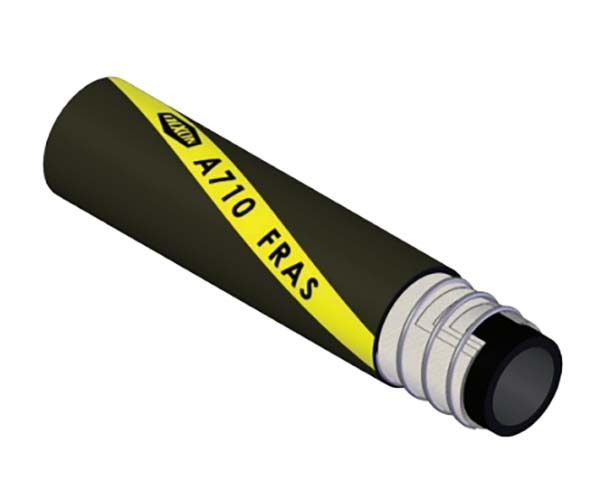

Dixon A71015020 152 mm x 20 m Rubber FRAS Air & Water Suction & Discharge Hose

This Dixon rubber hose is built for fire-resistant, anti-static (FRAS) air and water suction and discharge. It has an NBR blend tube, a chloroprene blend cover and high tensile synthetic textile cords with a steel wire helix, and it is mandrel built (manufacturer-stated). The store lists one size: 152 mm (6 in) ID in a 20 m coil.

Dixon states that the hose is designed to meet the fire-resistant and anti-static requirements of AS 2660 for air and water suction and discharge in underground coal mines (manufacturer-stated). It is rated at 150 PSI (10 bar) working pressure, 450 PSI (30 bar) burst and 0.93 bar vacuum, from -30 to 70 degrees C (manufacturer-stated).

Where this product is used

• Air and water suction and discharge in underground coal mines where a fire-resistant, anti-static hose is required (manufacturer-stated).
• Water and light slurry suction and discharge in construction, mining, dewatering, irrigation and municipal work (manufacturer-stated).
• Large-bore pump lines where a 152 mm hose with a steel wire helix is needed.

Features

• Tube: NBR blend, black; cover: chloroprene blend, black (manufacturer-stated)
• Reinforcement: high tensile synthetic textile cords with a steel wire helix (manufacturer-stated)
• Designed to meet the fire-resistant and anti-static requirements of AS 2660 (manufacturer-stated)
• Working pressure 150 PSI (10 bar), burst 450 PSI (30 bar), vacuum 0.93 bar (manufacturer-stated)
• Temperature range -30 to 70 degrees C; ozone, weather and abrasion resistant (manufacturer-stated)

Key specifications

Selecting the right option

If the hose is going into an underground coal mine, confirm the FRAS marking and any approval your site requires on the hose itself and with Dixon before you order; this page gives Dixon's published description only. Match couplings to the 152.4 mm ID and allow for the 760 mm bend radius. Dixon also lists a made-up A710 assembly for this size with shouldered ends and crimp ferrules, 3 m long (part number A710150X3FSH) (manufacturer-stated).
