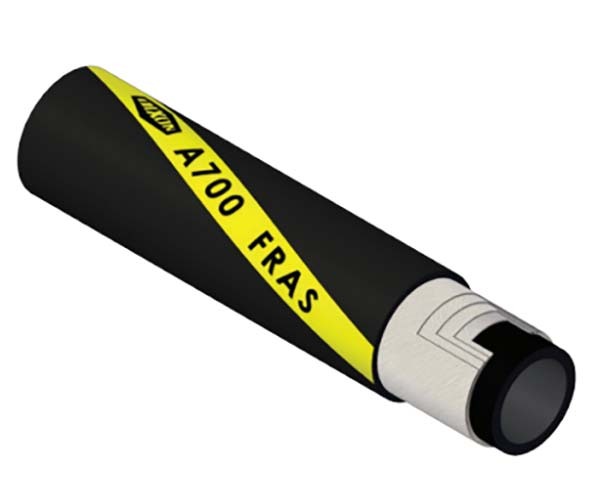

Dixon 19mm x 20m Rubber FRAS Air & Water Delivery Hose Black A70002020
Regular price
$679.69
Sale price
$679.69
Regular price
Inc. GST
Available
Black colour for fast visual recognition in service. Application: Air & Water. Hose Length: 20 m. Minimum Cut Length: 10 metres. Standard Coil Length: 20 metres. Construction. Tube: Black anti-static NBR rubber compound, oil resistant. Cover: Black smooth (wrapped finish), chloroprene rubber compound, oil and weather resistant. Reinforcement: High strength synthetic cord.
Key Specifications
| Length | 20 m coil |
| ID | 19.1 mm / 25.4 mm / 63.5 mm / 101.6 mm |
| OD | 30.0 mm / 37.0 mm / 79.0 mm / 122.0 mm |
| Hose ID (mm) | 19 / 25 / 38 / 63 / 102 |
| Working Pressure | 300 PSI (20 bar) |
| Burst Pressure | 1015 PSI (70 bar) / 1200 psi |
| Temperature Range | -30°C to 70°C / -15°C to 70°C |
| Color | Black |
| Intended Service | Air & Water |
| Unit weight | 0.6 kg/m / 0.72 kg/m / 2.5 kg/m / 4.6 kg/m |
| Bend Radius | 150 mm / 200 mm / 500 mm / 900 mm |
| Hose Outside Diameter (mm) | 29 / 37 / 52 / 81 / 122 |
| Weight kg/m | 0.99 / 1.2 / 1.52 / 2.63 / 4.33 |
| Application | Air & Water |
| Hose Length | 20 m |
| Working Pressure (mpa) | 2 |
| Bend Radius (mm) | 456 |
| Standards referenced | AS 2660 |
Where This Is Used
- Designed to meet the fire-resistant and anti-static requirements of AS 2660 for air and water delivery in underground coal mines.
- Also suitable for use in heavy-duty compressed air and water applications in a multitude of industries including mining, construction, and general industrial workshops.
- Designed specifically for the conveyance of air and water in coal mining applications.
- 4:1 Safety Factor.
Features
- Weather resistant.
- Ozone resistant.
- Abrasion resistant.
- Oil mist resistant.
- Mylar layline & embossed tape line.
- Fire resistant.
- Anti-static as per AS 2660 class B.
- Electrically conductive reistannce <1MΩ/m.
- Mandrel built.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
19
Model Number: A70002020
-
25
Model Number: A70002520
-
38
Model Number: A70004020
-
63
Model Number: A70006520
-
102
Model Number: A70010020
