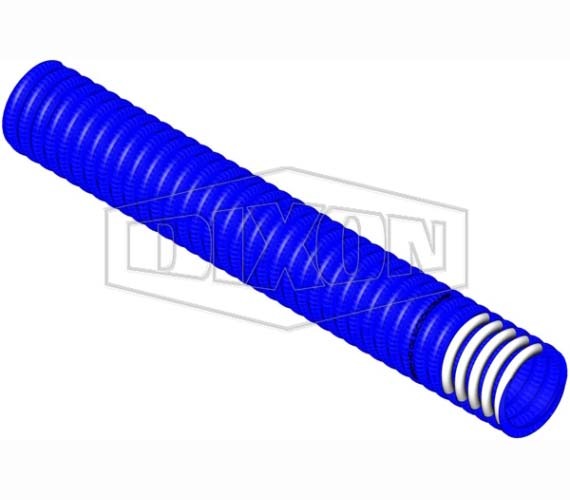

Dixon Blue PVC oil suction hose, 76.2mm

This Dixon blue PVC/NBR hose is made for heavy-duty suction and discharge of oils, oil slurry, grease, diesel fuel, light chemicals and lubricants, and it is particularly suited to liquid waste transfer and to grease trap and septic tank cleaning. It has a blue PVC/NBR blend tube and smooth cover with an embedded rigid PVC helix, and it is UV stabilised, abrasion and oil resistant and extruded. It has a temperature range of -40 to 65°C and a vacuum rating of 1.0 bar for every size, with working pressure from 75 PSI (5 bar) at 38.1 and 50.8mm down to 50 PSI (4 bar) at 101.6mm.

It comes in four sizes as 20 m coils.

Where this product is used

• Heavy-duty suction and discharge of oils, oil slurry, grease, diesel fuel, light chemicals and lubricants
• Liquid waste transfer, grease trap and septic tank cleaning

Features

• Tube and cover: PVC/NBR blend, blue, with embedded rigid PVC helix
• Vacuum 1.0 bar, working pressure 75 to 50 PSI by size
• Temperature range -40 to 65°C
• UV stabilised, abrasion resistant, oil resistant and high impact resistant

Key specifications

Choosing the right option

Match the hose to the pump and the fluid: check the oil, fuel or chemical against the PVC/NBR blend and use fittings made for rigid helix PVC hose. The working pressure falls as the size increases, so check the figure for the size you pick, and keep within the 1.0 bar vacuum rating on suction.

Related Dixon hose: Dixon Rubber Petrol & Oil Suction & Delivery Hose, Dixon Rubber Petrol & Oil Delivery Hose and Dixon Heavy Duty Grey PVC Suction Hose.
