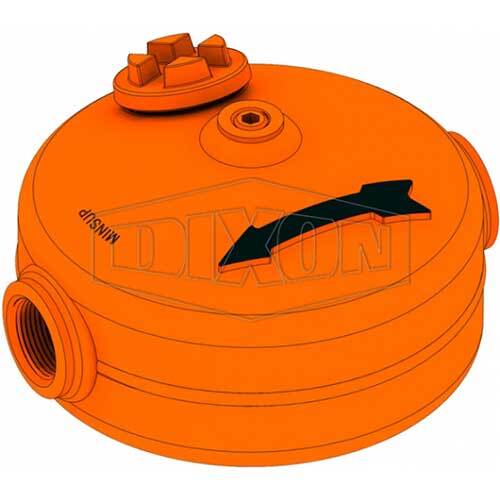

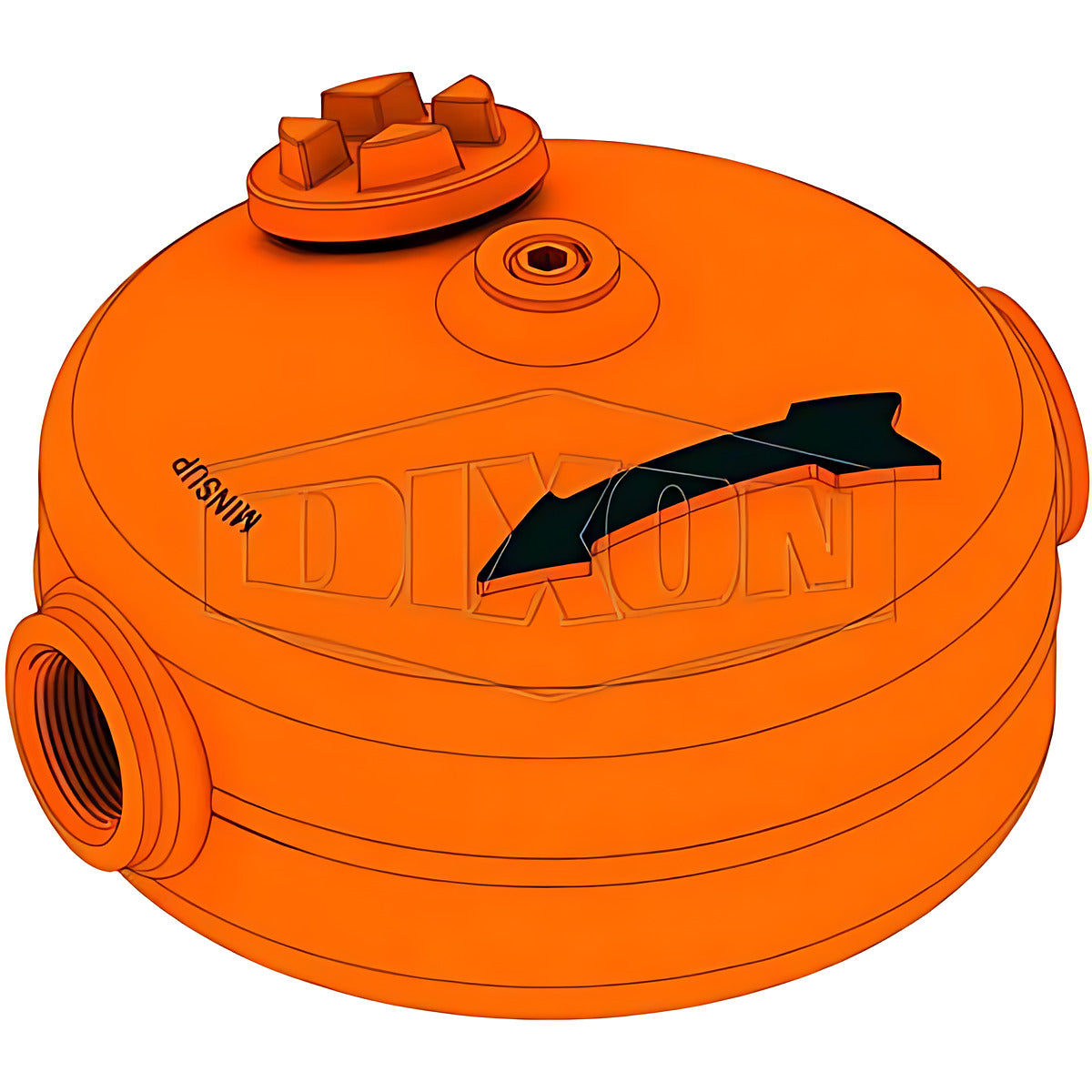

Dixon Minsup Air Operated Lubricator 1" BSP Fixed Jet
Available
This Dixon Minsup® air operated lubricator has a brass fixed jet, 1mm in diameter, designed for use with rock drill lubricating oil. It has a 1" (25mm) BSP thread and holds 1.2 litres of oil. Its part number is 08/066/01/000.
Dixon developed the Minsup® oil bottle to keep rock drills lubricated across a normal 8 hour shift, and should be placed no more than three metres from the machine so the oil reaches it in mist form. The body is mild steel with a cast steel venturi, nitrile Buna-N O-ring and copper Bundy tubes, and the working pressure is 300 PSI.
Where this product is used
- Oiling rock drills on a shift from an air operated oil bottle
- Rock drill oiling where a 1mm fixed jet suits the lubricating oil in use
Features
- Fixed jet: 1mm diameter, brass, for rock drill lubricating oil
- 1.2 litre oil capacity, 1" (25mm) BSP thread
- Working pressure 300 PSI
- 32mm (1-1/4") filler plug with built-in pressure release behind the O-ring
- Mild steel body, cast steel venturi, nitrile Buna-N O-ring, copper Bundy tubes
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Style | Fixed jet (1mm diameter, brass) |
| Thread | 25mm (1") BSP |
| Oil capacity | 1.2 litres |
| Working pressure | 300 PSI |
| Filler plug | 32mm (1-1/4") with built-in pressure release |
| Materials | Mild steel body, cast steel venturi, nitrile Buna-N O-ring, copper Bundy tubes |
Choosing the right option
Use the fixed jet when your oil and air conditions stay the same through the shift. If viscosity, pressure or temperature vary, the adjustable jet version suits those conditions better. Both have the same 1.2 litre capacity, 25mm BSP thread and 300 PSI rating.
Related Dixon mining products: Dixon Minsup Air Operated Lubricator 1" BSP Adjustable Jet, Dixon Minsup Scraper Block and Dixon Minsup Wooden Pelican Pick.
