Dixon Black PVC fire reel hose, 19mm / 20 m

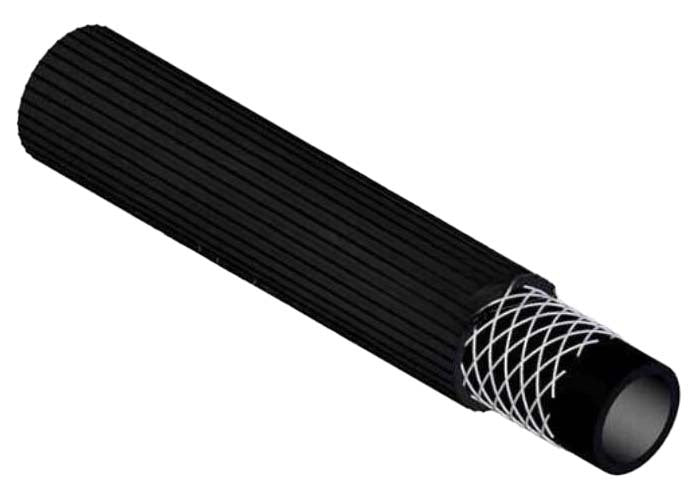

This Dixon hose is a black PVC fire reel hose with a PVC tube, a ribbed PVC cover and polyester yarn reinforcement. It is UV stabilised, abrasion resistant and has self-extinguishing properties, it is manufactured in accordance with AS/NZS 1221:1997 for use on fire reels. It is rated at 145 PSI (10 bar) working pressure, for -5°C to 60°C.

It comes in 19mm and 25mm ID in 20 m, 36 m and 100 m coils.

Where this product is used

• Replacement hose for fire reels, as the hose is designed for use on fire reels
• Fixed hose reel installations where the 19mm or 25mm ID needs to match the reel and nozzle

Features

• Black PVC tube and ribbed PVC cover, polyester yarn reinforcement
• UV stabilised and abrasion resistant, with self-extinguishing properties
• Working pressure 145 PSI (10 bar)
• Temperature range -5°C to 60°C
• Conforms to AS/NZS 1221:1997

Key specifications

Choosing the right option

Match the hose ID and the coil length to your reel: the reel drum capacity limits the length, and the reel fittings must suit the hose ID. The hose is made to AS/NZS 1221:1997; check your reel manufacturer's requirements and the compliance rules for your site before you replace hose on a fire reel.

Related Dixon products: Dixon Inferno Fire Hose Kit, 100 PSI (0.7 MPa) - FK6P, Dixon Brass Hose Reel Nozzle 19mm and Dixon Hose Reel Twist Spray Nozzle 3/4" Thread Size Rubber Gasket.
