Dixon Galvanised roll grooved flange adaptor, 150mm NB

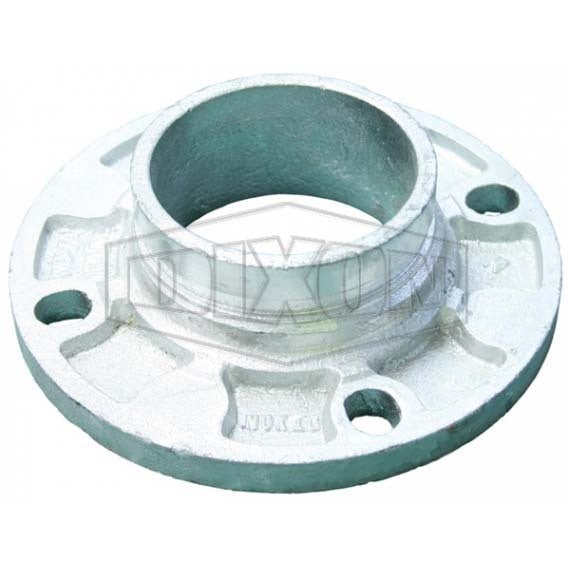

This Dixon roll grooved flange adaptor has a roll grooved end and a flange end, in galvanised ductile iron to ASTM A536. This range covers six sizes from 50mm to 200mm nominal bore, in Table D/E and Table E flange patterns. A 100mm Table D version, FWG-FA-114D, is separate product.

Where this product is used

• Connecting roll grooved pipe to a flanged valve, pump or fitting
• Adapting a roll grooved pipeline to a Table D or Table E flange

Features

• Galvanised ductile iron to ASTM A536
• Roll grooved end by flange end
• Six sizes from 50mm to 200mm nominal bore
• Table D/E pattern at 50, 65 and 80mm, Table E pattern at 100, 150 and 200mm
• Dixon model number 321G

Key specifications

Choosing the right option

Then check the mating flange pattern. At 100mm Table D has four bolts and Table E has eight, and at 150mm and 200mm Table E uses M20 bolts in 22mm holes against M16 in 18mm holes for Table D. Use appropriate gaskets and bolts for your flange.

Table D and Table E share the same drilling at 50, 65 and 80mm.

Related Dixon products: Dixon 4" (100mm) Roll Grooved Flange Adaptor Table D - Galvanised, Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
