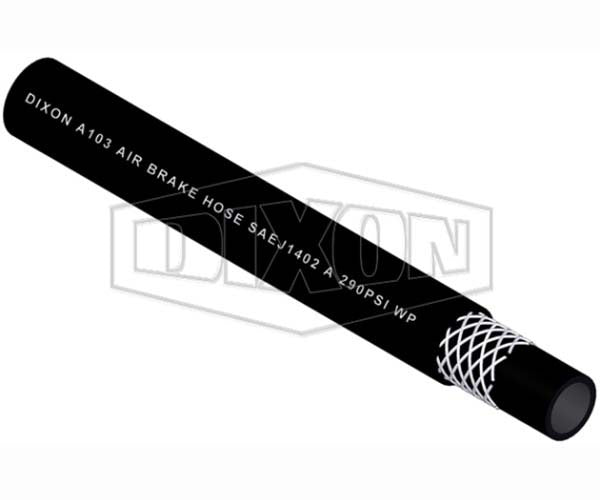

Dixon 10mm x 152m Rubber Air Brake Hose A103010152
Regular price
$1,038.57
Sale price
$1,038.57
Regular price
Inc. GST
Out of stock
Length: 152 m. Rated to 2, so you can match it to line pressure with confidence. Minimum Cut Length: 20 metres. Standard Coil Length: 152 metres. Construction. Tube: EPDM. Reinforcement: 4 spiral polyester yarn. According to SAE J1402 (Table 1, Type A), Synthetic Oil Resistant Compound. Safety Note. Bend radius figure is calculated as theoretical.
Key Specifications
| Length | 152 m |
| ID | 9.5 mm / 12.7 mm |
| OD | 19.0 mm / 22.0 mm |
| Hose ID (mm) | 10 / 13 |
| Working Pressure (mpa) | 2 |
| Burst Pressure | 870 PSI (60 bar) |
| Temperature Range | -20°C to 70°C |
| Color | Black |
| Hose Outside Diameter (mm) | 19 / 22 |
| Weight kg/m | 0.38 / 0.39 |
| Application | Automotive |
| Hose Length | 152 m |
| Bend Radius (mm) | 1201 / 1561 |
Where This Is Used
- A high-quality reinforced rubber hose designed to meet the requirements of SAE J1402 A, used specifically for the conveyance of air in truck braking systems.
- Extruded rubber air hose for conveyance of air in truck brake systems.
Features
- Ozone resistant.
- Weather resistant.
- Pin pricked cover.
- Extruded.
