Dixon A11506 6.5 mm Rubber Fuel Hose
Available

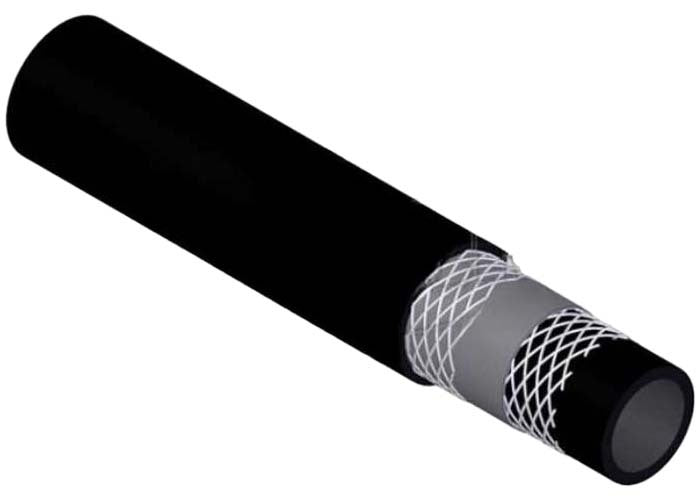

This Dixon reinforced rubber hose is made for flexible fuel lines, PCV connections, emission control lines and fuel return lines, and Dixon describes it as designed to meet SAE 30R7 (manufacturer-stated). It has a black NBR tube, a smooth black NBR blend cover and polyester yarn reinforcement, and it is extruded. The store lists the 5, 6.5, 8 and 10 mm sizes.
Dixon rates all sizes at 100 PSI (7 bar) working pressure and 400 PSI (28 bar) burst, for temperatures from -20 to 70 degrees C (manufacturer-stated). It is compatible with fuels containing a maximum of 50% aromatic content, including leaded and unleaded gasoline, diesel fuel and gasoline blends of ethanol (E-10) (manufacturer-stated).
Where this product is used
- Flexible fuel lines, PCV connections, emission control lines and fuel return lines (manufacturer-stated).
- Fuel lines carrying leaded or unleaded gasoline, diesel fuel or E-10 blends with up to 50% aromatic content (manufacturer-stated).
Features
- Tube: NBR, black; cover: NBR blend, smooth, black; polyester yarn reinforcement (manufacturer-stated)
- Working pressure 100 PSI (7 bar), burst 400 PSI (28 bar) (manufacturer-stated)
- Temperature range -20 to 70 degrees C (manufacturer-stated)
- Fuels up to 50% aromatic content, including E-10 blends (manufacturer-stated)
- Described by Dixon as designed to meet SAE 30R7 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | NBR, black |
| Cover | NBR blend, smooth, black |
| Reinforcement | Polyester yarn |
| Standard | SAE 30R7 (manufacturer-stated) |
| Working pressure | 100 PSI (7 bar) |
| Burst pressure | 400 PSI (28 bar) |
| Temperature | -20 to 70 degrees C |
| Aromatic content | Maximum 50% |
| Sizes on this page | 5, 6.5, 8, 10 mm |
Key specifications
| Dixon part number | Size | Catalogue ID (mm) | Catalogue OD (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| A11505 | 5 mm | 4.8 | 11 | 40 | 0.12 |
| A11506 | 6.5 mm | 6.4 | 13 | 50 | 0.15 |
| A11508 | 8 mm | 7.9 | 15 | 65 | 0.19 |
| A11510 | 10 mm | 9.5 | 17 | 75 | 0.23 |
Figures are from the A115 table in Dixon's Industrial Hose catalogue, which lists the hose with no pack length. The store sizes 5, 6.5, 8 and 10 mm are the 4.8, 6.4, 7.9 and 9.5 mm catalogue sizes. Dixon also lists 12.7 mm (A11512), which is not in the store.
Selecting the right option
Pick the size from your fuel line or hose tail, and use fuel injection or fuel hose clamps rated for the line pressure. The hose is listed for fuels with up to 50% aromatic content, so check the fuel against that limit. For larger bore fuel and oil transfer see the A450 and A430 ranges in Related products.
