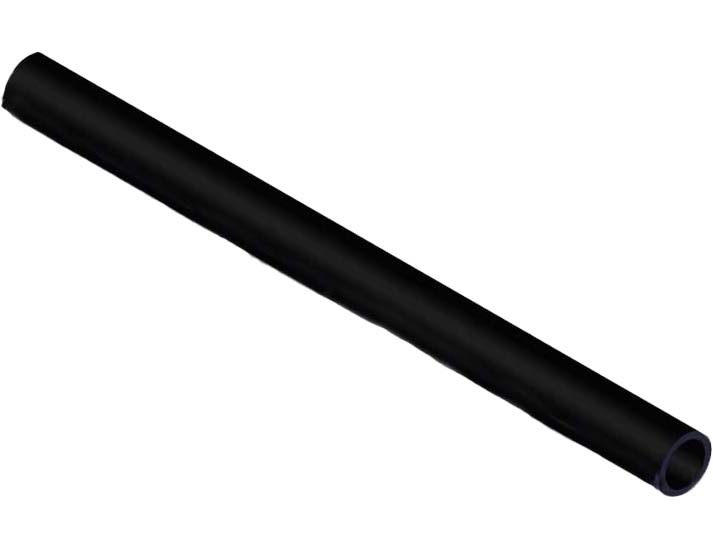

Dixon NYI012100 1/2 in OD x 100 m Black Flexible Nylon 12 Tubing

This Dixon tubing is flexible nylon 12 tubing for automotive fuel lines, lubrication lines, vacuum lines and air lines (manufacturer-stated). It is made from PA12 nylon in Shore 65D, which Dixon lists as per DIN 74324, and it is supplied in 100 m coils (manufacturer-stated). The store lists the 1/2 in OD size (8.8 mm ID) in black and natural.

Dixon rates the imperial tubing at 250 PSI (17 bar) working pressure and 1000 PSI burst, with a bend radius of 60 mm for this size and a temperature range of -40 to 90 degrees C (manufacturer-stated).

Where this product is used

• Automotive fuel lines, lubrication lines, vacuum lines and air lines (manufacturer-stated).
• Lines where black or natural colour coding is wanted for different media.

Features

• PA12 nylon, Shore 65D, per DIN 74324; tube and cover in nylon (manufacturer-stated)
• Working pressure 250 PSI (17 bar), burst 1000 PSI (manufacturer-stated)
• Temperature range -40 to 90 degrees C (manufacturer-stated)
• 8.8 mm ID, 1/2 in OD, bend radius 60 mm; 100 m coil (manufacturer-stated)
• Black and natural (manufacturer-stated)

Common specifications

Key specifications

Figures are from the Flexible Nylon 12 Tubing (Imperial) table in Dixon's Industrial Hose catalogue. The catalogue weight column is not shown here, because its values do not suit the kg/m heading. Dixon also lists seven other sizes in the range (not in the store).

Selecting the right option

Pick the tubing by OD to suit your push-in or compression fittings, and check the fitting is made for 1/2 in nylon tubing. Check the working pressure at your operating temperature and keep within the -40 to 90 degrees C range. Cut the tube square and clean before fitting. Choose black or natural to suit your colour coding.
