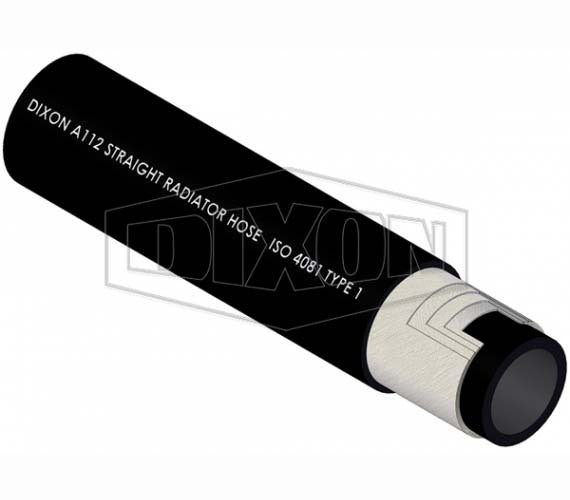

Dixon Straight radiator hose, 22mm

This Dixon black rubber hose is made for transferring hot water and anti-freeze or anti-boil solutions in cooling systems. It has a black EPDM blend tube, a smooth black EPDM blend cover and high tensile synthetic textile cord reinforcement, with a Mylar layline and embossed tape line, and it is mandrel built. It comes in 14 sizes from 19 to 76mm.

Every size is rated at 75 PSI (5 bar) working pressure and 217 PSI (15 bar) burst, for temperatures from -40 to 100°C. The hose is weather, ozone and abrasion resistant.

Where this product is used

• Hot water and anti-freeze or anti-boil solutions in cooling systems
• Straight radiator and heater hose runs on engines and plant that need a cut-to-length hose

Features

• Tube: EPDM blend, black, cover: EPDM blend, smooth, black
• Reinforcement: high tensile synthetic textile cords, mandrel built
• Working pressure 75 PSI (5 bar), burst 217 PSI (15 bar)
• Temperature range -40 to 100°C
• Weather, ozone and abrasion resistant

Key specifications

Choosing the right option

Use hose clamps rated for the pressure and temperature of the cooling system. Check the coolant type is suitable for EPDM, and do not use this hose for oil or fuel.

Related Dixon hose: Dixon Rubber Fuel Hose, Dixon Rubber Steam Hose Steel Wire Reinforced and Dixon Rubber Steam Hose Fabric Reinforced.
