Dixon A23001220 13 mm x 20 m Rubber Steam Hose Steel Wire Reinforced
Available

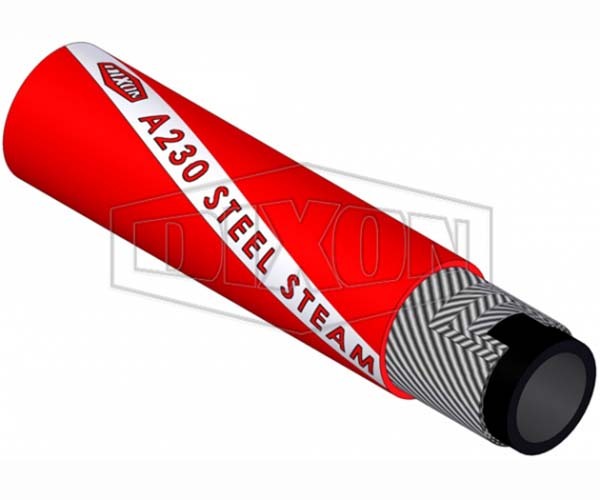

This Dixon steel cord rubber hose is made for high-pressure saturated steam and hot water. It has a black EPDM blend tube that resists saturated steam, a red smooth EPDM blend cover with a wrapped finish and steel plies or braid reinforcement, and it is mandrel built (manufacturer-stated). Dixon's data sheet lists it as the A230 steel steam hose, STEAMBOSS.
Dixon rates every size at 270 PSI (18 bar) working pressure and 2611 PSI (180 bar) burst. The temperature range is -40 to 210 degrees C for saturated steam, with peaks up to 232 degrees C, and -40 to 120 degrees C for hot water (manufacturer-stated). The store lists the 13, 19 and 25 mm sizes as 10 m cut lengths and 20 m coils.
Where this product is used
- Saturated steam and hot water lines in refineries, shipyards, chemical plants, steel mills and foundries (manufacturer-stated).
- General industrial applications that need high-pressure steam or hot water (manufacturer-stated).
Features
- Tube: EPDM blend, black, resistant to saturated steam; cover: EPDM blend, red, pin pricked (manufacturer-stated)
- Reinforcement: steel plies or braid; mandrel built (manufacturer-stated)
- Working pressure 270 PSI (18 bar), burst 2611 PSI (180 bar) (manufacturer-stated)
- Steam -40 to 210 degrees C (peaks to 232 degrees C); hot water -40 to 120 degrees C (manufacturer-stated)
- Electrically conductive, resistance under 1 megohm per metre (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | EPDM blend, black |
| Cover | EPDM blend, smooth (wrapped finish), red, pin pricked |
| Reinforcement | Steel plies or braid |
| Working pressure | 270 PSI (18 bar) |
| Burst pressure | 2611 PSI (180 bar) |
| Steam temperature | -40 to 210 degrees C, peaks up to 232 degrees C (saturated steam) |
| Hot water temperature | -40 to 120 degrees C |
| Electrical resistance | Under 1 megohm per metre (manufacturer-stated) |
| Sizes on this page | 13, 19, 25 mm |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Catalogue OD (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| A230012 | 13 mm | 10 m | 12.7 | 25 | 120 | 0.50 |
| A23001220 | 13 mm | 20 m | 12.7 | 25 | 120 | 0.50 |
| A230020 | 19 mm | 10 m | 19.1 | 31 | 185 | 0.75 |
| A23002020 | 19 mm | 20 m | 19.1 | 31 | 185 | 0.75 |
| A230025 | 25 mm | 10 m | 25.4 | 37 | 240 | 0.91 |
ID, OD, bend radius and weight are the A230 figures printed in Dixon's Industrial Hose catalogue and A230 data sheet. The catalogue lists the numbers without a suffix as cut-length numbers and those ending 20 as the 20 m coil; the 10 m length is the store option.
Selecting the right option
Steam is dangerous, so use only hose, couplings and clamps that are rated for steam service and rated for the same pressure and temperature as the hose, and follow Dixon's assembly instructions. Pick the size from the flow you need and your fitting bore; the cover is pin pricked to let gas escape, so keep the hose away from places where leaks could be hidden.
