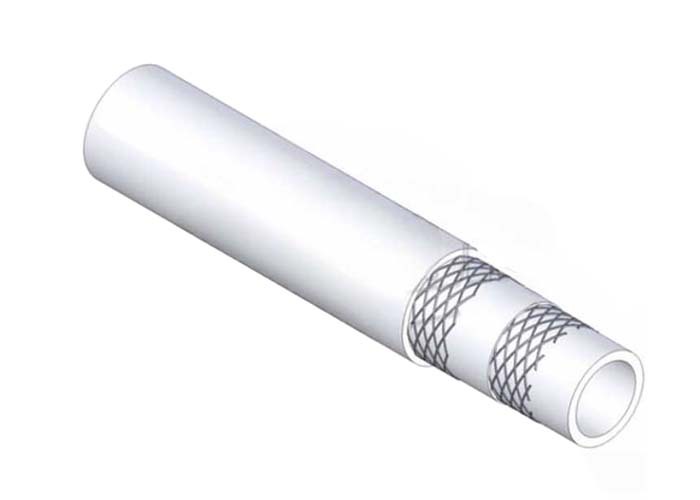

Dixon 12.5mm x 10m Rubber Hot Water Washdown Hose White A225012
Regular price
$123.09
Sale price
$123.09
Regular price
Inc. GST
Available
Rated to 300 PSI (20 bar), so you can match it to line pressure with confidence. Service temperature -20°C to 90°C, suitable for the conditions on real industrial sites. Rubber construction handles the temperature, pressure and media of industrial duty. Construction. Tube: NBR white. Reinforcement: 4 Spiral polyester. Available Lengths. Cut Length: 10 m. Coil Length: 20 m. Reel Length: 100 and 200 m (2 x 100 m).
Key Specifications
| Length | 20m coil / Cut Length / 100 m / 20m Coil |
| ID | 12.7 mm / 19.1 mm / 25.4 mm |
| OD | 21.9 mm / 30.2 mm / 38.0 mm |
| Hose ID (mm) | 12.5 / 19 / 25 |
| Working Pressure | 300 PSI (20 bar) |
| Burst Pressure | 900 PSI (62 bar) / 900 PSI (60 bar) |
| Temperature Range | -20°C to 90°C |
| Material | Rubber |
| Color | White |
| Intended Service | Water |
| Unit weight | 0.47 kg / 0.47 kg/m / 0.65 kg / 0.65 kg/m / 0.97 kg |
| Bend Radius | 100 mm / 155 mm / 205 mm |
| Hose Outside Diameter (mm) | 21.9 / 30.2 / 38 |
| Weight kg/m | 0.39 / 0.7 / 1.2 |
| Application | Water |
| Hose Length | 20 m / 10 m / 100 m |
| Size | 12 mm / 20 mm / 25 mm |
Where This Is Used
- Designed specifically for delivery of hot water for washdown applications in food processing industries, packing houses, bottling plants, breweries and dairies.
- Used for cleaning food processing equipment in meat, poultry, confectionery and dairy plants.
Features
- Weather resistant.
- Ozone resistant.
- Abrasion resistant.
- Pinpricked cover.
- Extruded.
- Oil mist resistant.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
12.5 / 20 m
Model Number: A225012020
-
12.5 / 10 m
Model Number: A225012
-
12.5 / 100 m
Model Number: A225012100
-
19 / 20 m
Model Number: A225020020
-
19 / 10 m
Model Number: A225020
-
19 / 100 m
Model Number: A225020100
-
25 / 20 m
Model Number: A225025020
-
25 / 10 m
Model Number: A225025
-
25 / 100 m
Model Number: A225025100
